Suspension - Torque Specification Reduced

REF.: SUSPENSION

NO.: SU93-003

DATE: SEPTEMBER 17, 1993

MODEL: CAMRY (SK, VK)

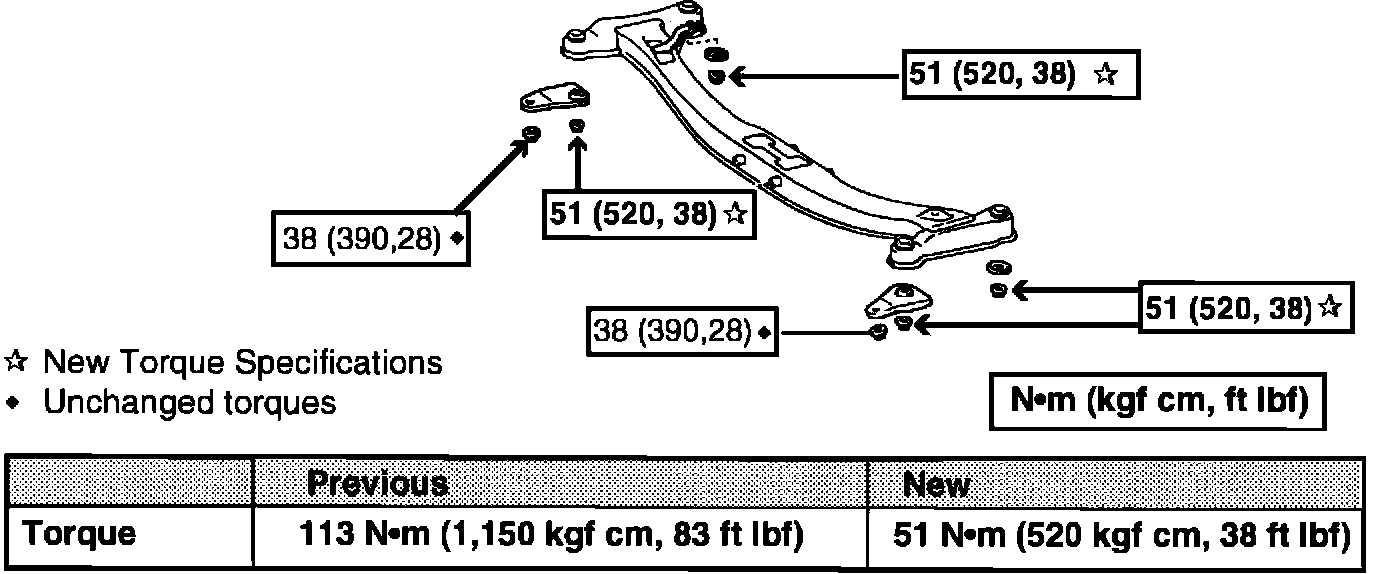

REAR SUSPENSION MEMBER SET NUT





Due to a change in the surface treatment of the rear suspension member nuts, the nut tightening torque has been reduced and the part number has been changed for the '94 model year.

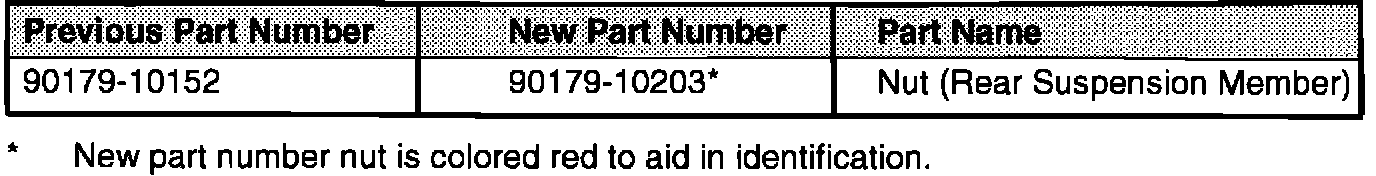

PART NUMBER INFORMATION:

REPAIR PROCEDURE:

If rear suspension member nuts need to be changed on vehicles built before the production change, they must be replaced with the new part number nut and tightened to the new torque setting.

Note:
Replace nuts as a complete set, do not replace individual nuts.

PRODUCTION EFFECTIVE:

From August, 1993 (1994 Model Year)
