Clutch Switch: Testing and Inspection

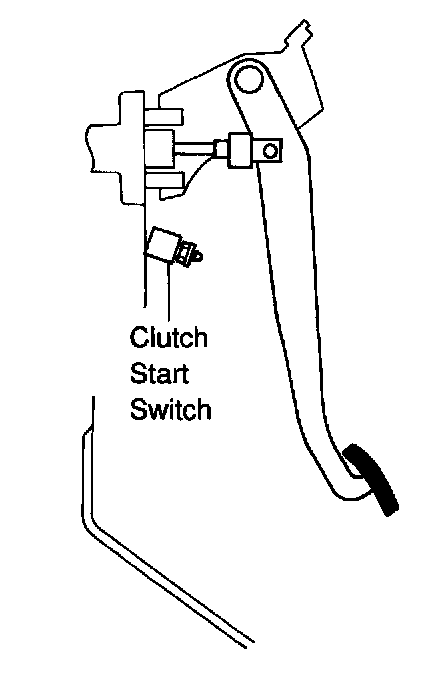

CLUTCH START SYSTEM CHECK
- Check that the engine does not start when the clutch pedal is released.
- Check that the engine starts when the clutch pedal is fully depressed.
- If necessary, adjust or replace the clutch start switch.

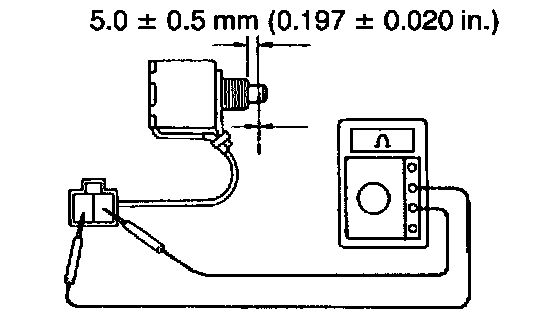

CLUTCH START SWITCH CONTINUITY CHECK
- Check that there is continuity between terminals when the switch is ON (pushed).
- Check that there is no continuity between terminals when the switch is OFF (free).
- If continuity is not as specified, replace the switch.
