Idle Speed/Throttle Actuator - Electronic: Service and Repair

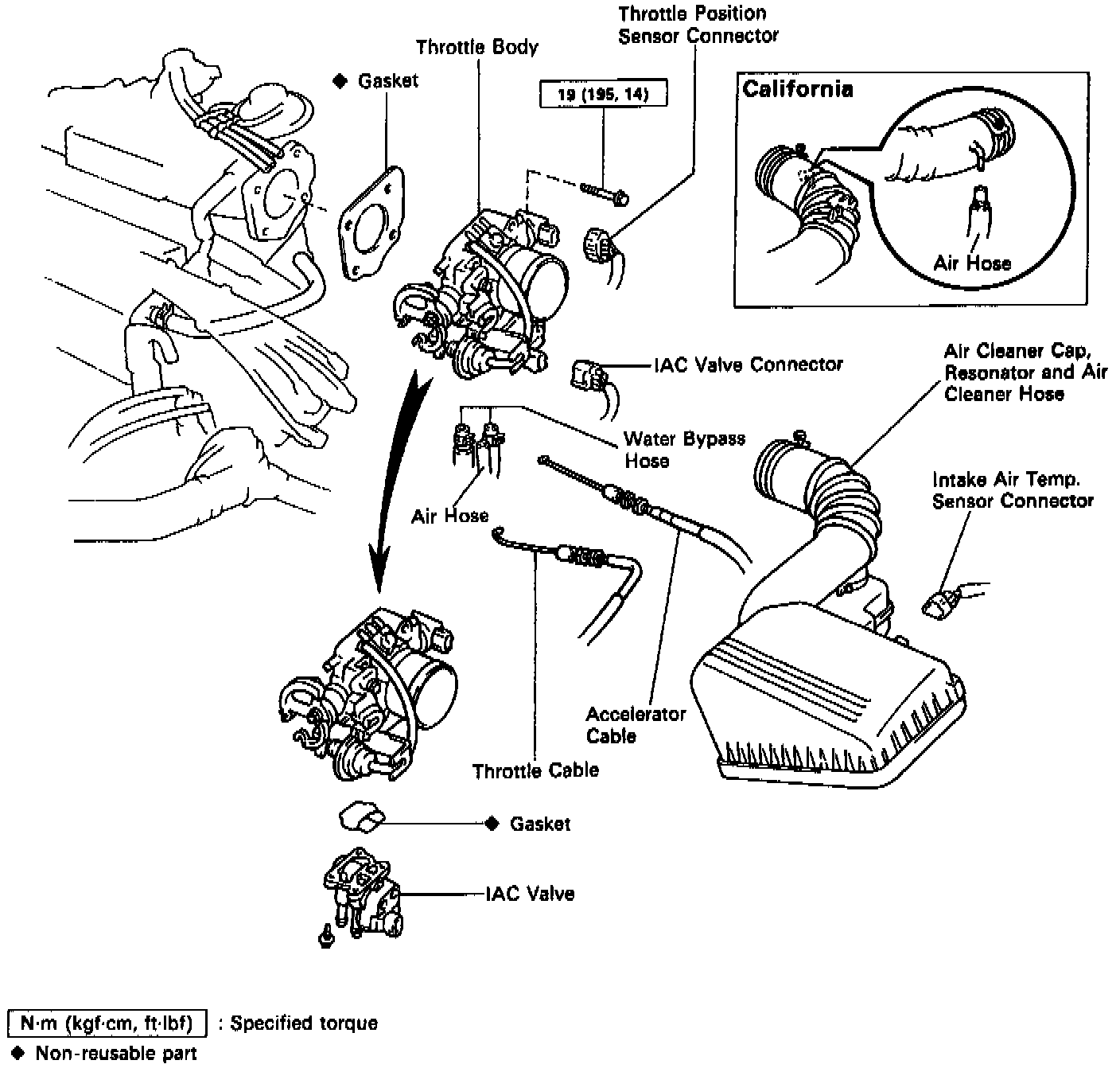

The Idle Air Control Valve Is Mounted To The Bottom Of The Throttle Body.:

REMOVAL
1. REMOVE THROTTLE BODY.



2. REMOVE IDLE AIR CONTROL VALVE.

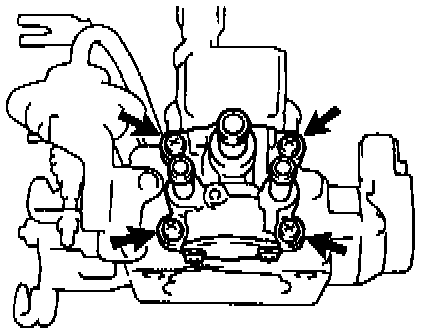

- Remove the 4 screws, idle air control valve and gasket.


INSTALLATION
1. INSTALL IDLE AIR CONTROL VALVE.

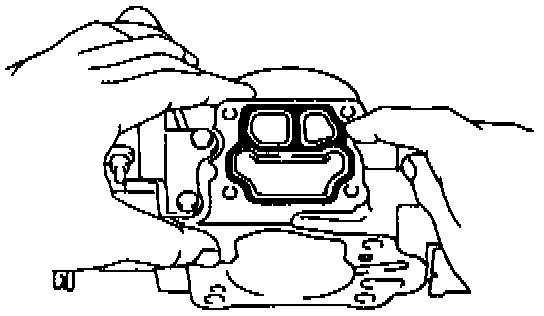

- Place a new gasket on the throttle body.

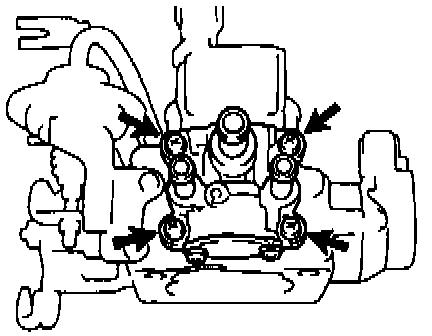

- Install the idle air control valve with the 4 screws.
2. INSTALL THROTTLE BODY.
