Camry Sedan 2-Door L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
>>
Vehicles with M / T
>>
Federal Spec. Vehicles
Federal Spec. Vehicles

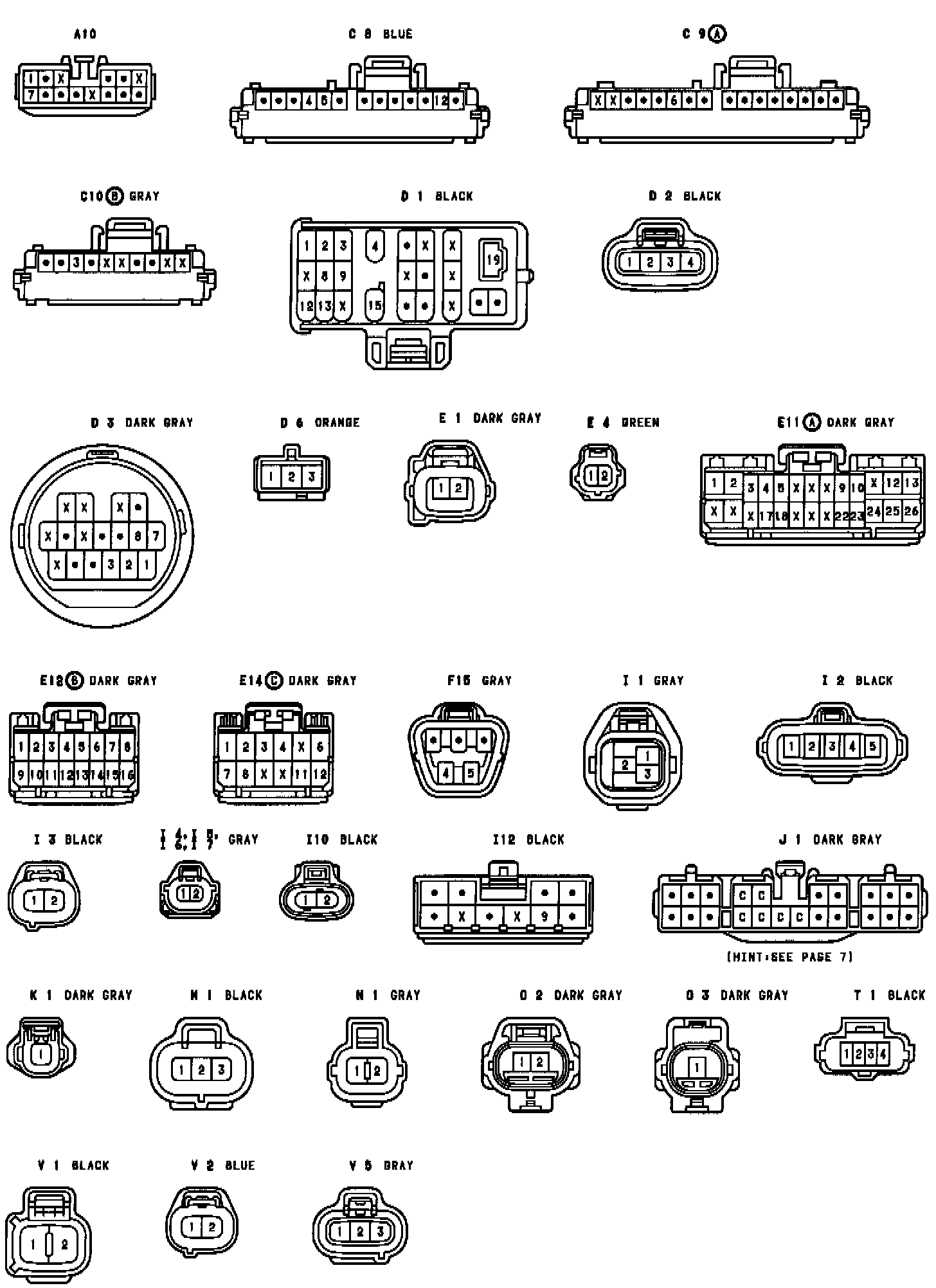

Engine Control (M/T Ex. California) Connector Views:
