Maintenance Precautions

1. Precautions when connecting diagnostic equipment.

a. Use the battery as the power source for the timing light, tachometer, etc.

Connecting A Tachometer To DLC 1:

b. Connect the tester probe of a tachometer to terminal IGG of the data link connector 1.

2. In the event of engine misfire, the following precautions should be taken

a. Check proper connection of battery terminals, etc.






b. Handle high-tension cords carefully.

c. After repair work, check that the ignition coil terminals and all other ignition system lines are reconnected securely.

d. When cleaning the engine compartment. be especially careful to protect the electrical system from water.

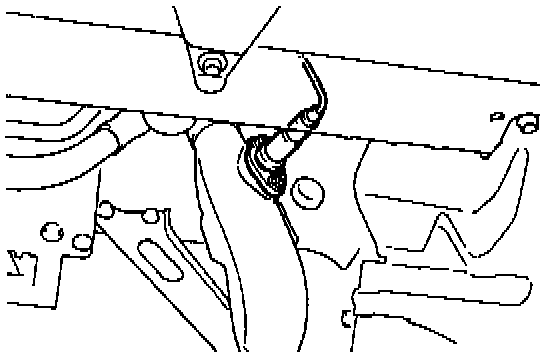

3. Precautions when handling oxygen sensor






a. Do not allow the oxygen sensor to drop or hit against an object.

b. Do not allow the sensor to come in contact with water.
