Fuse, Relay, and Junction Block Data
Fuse, Relay, and Junction Block Data

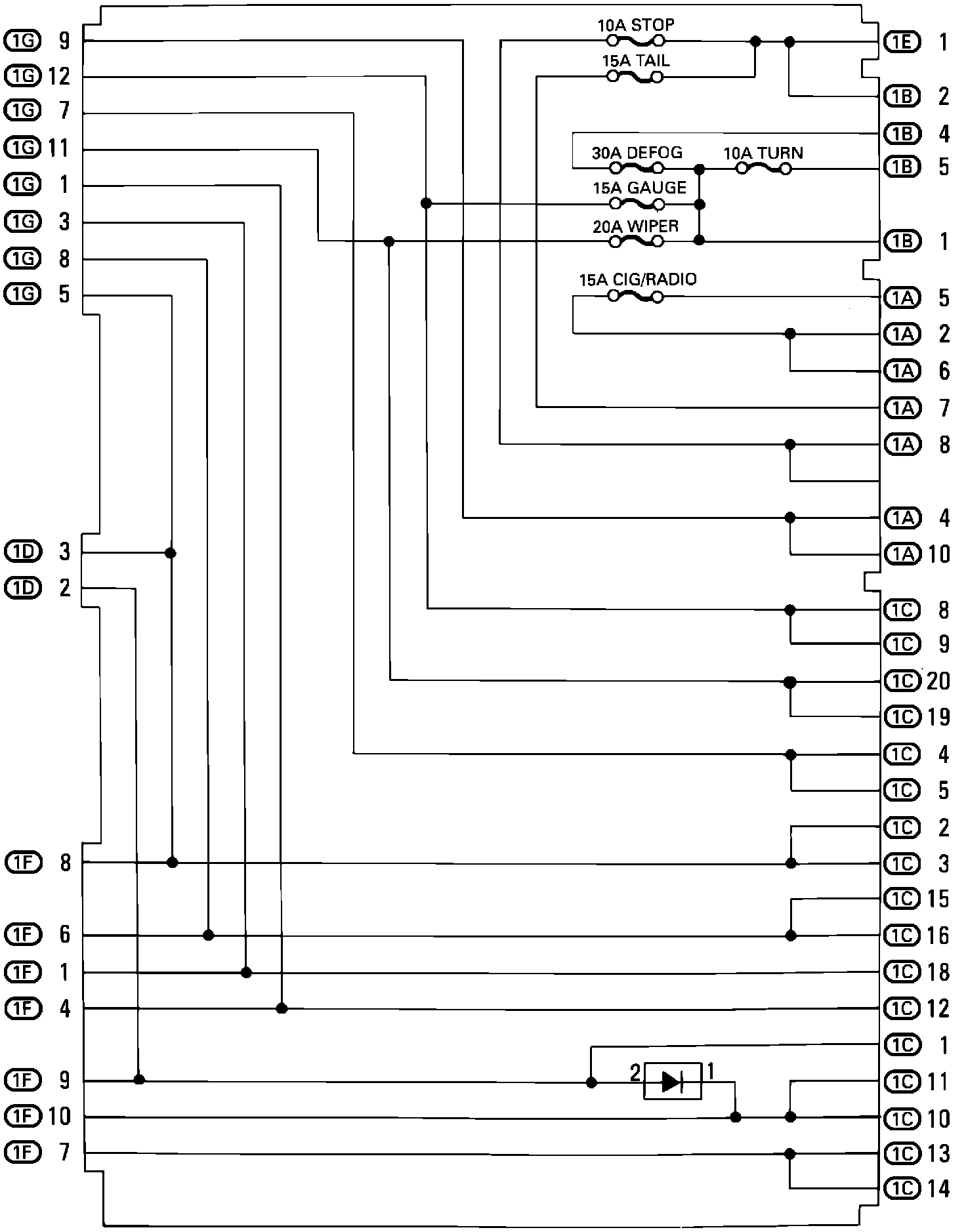

Junction Block No. 1 Inner Circuit:
