Home
>>
Toyota
>>
1993
>>
Tercel Sedan 4-Door L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse, Relay, and Junction Block Data
>>
Relay Block No. 2
>>
Canada
Canada

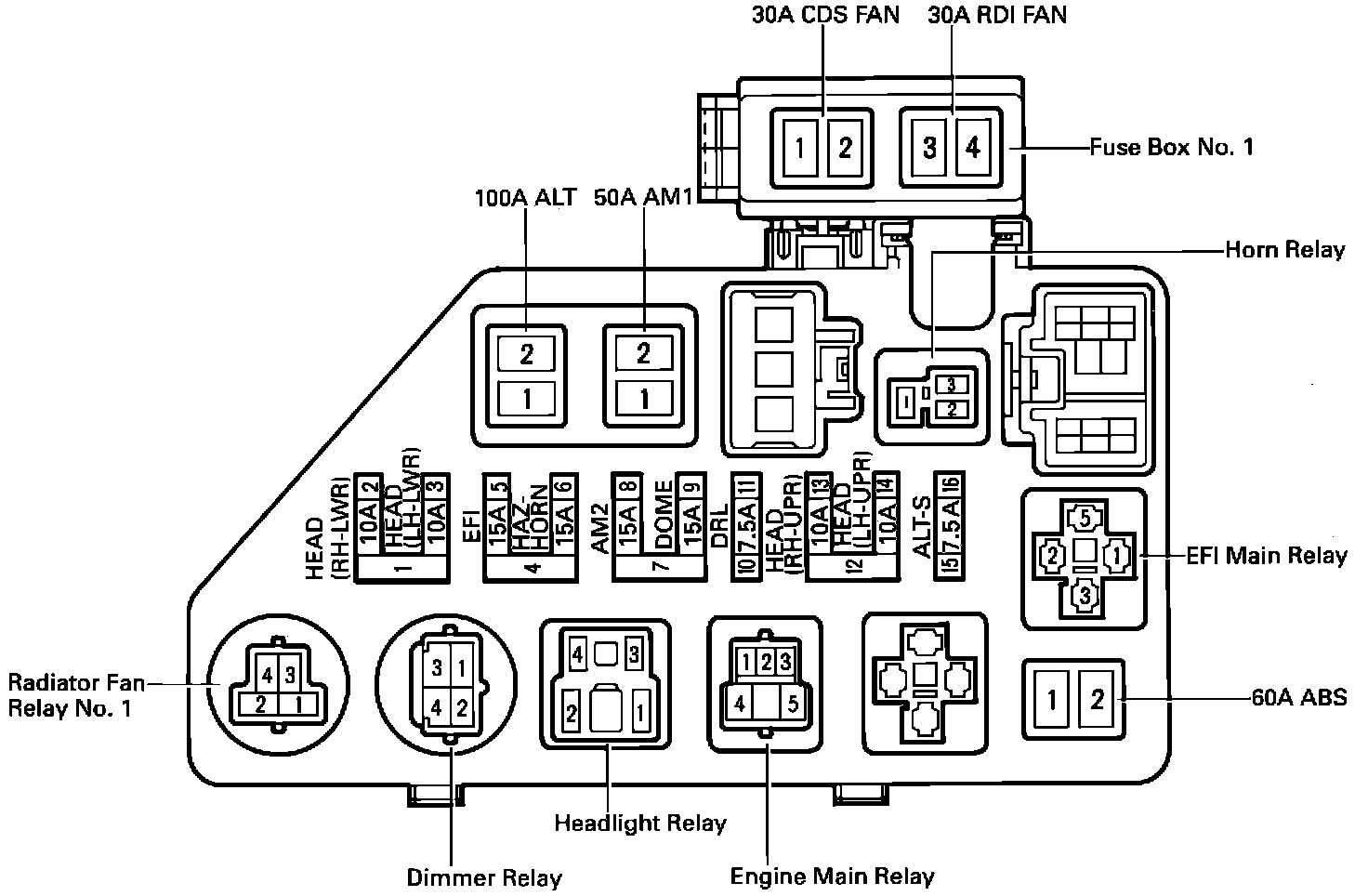

Relay Block No. 2: Engine Compartment Left (Canada):
