Home
>>
Toyota
>>
1993
>>
Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
Valve Body, A/T
>>
Service Specifications
Service Specifications
VALVE BODY SPRING SPECIFICATIONS

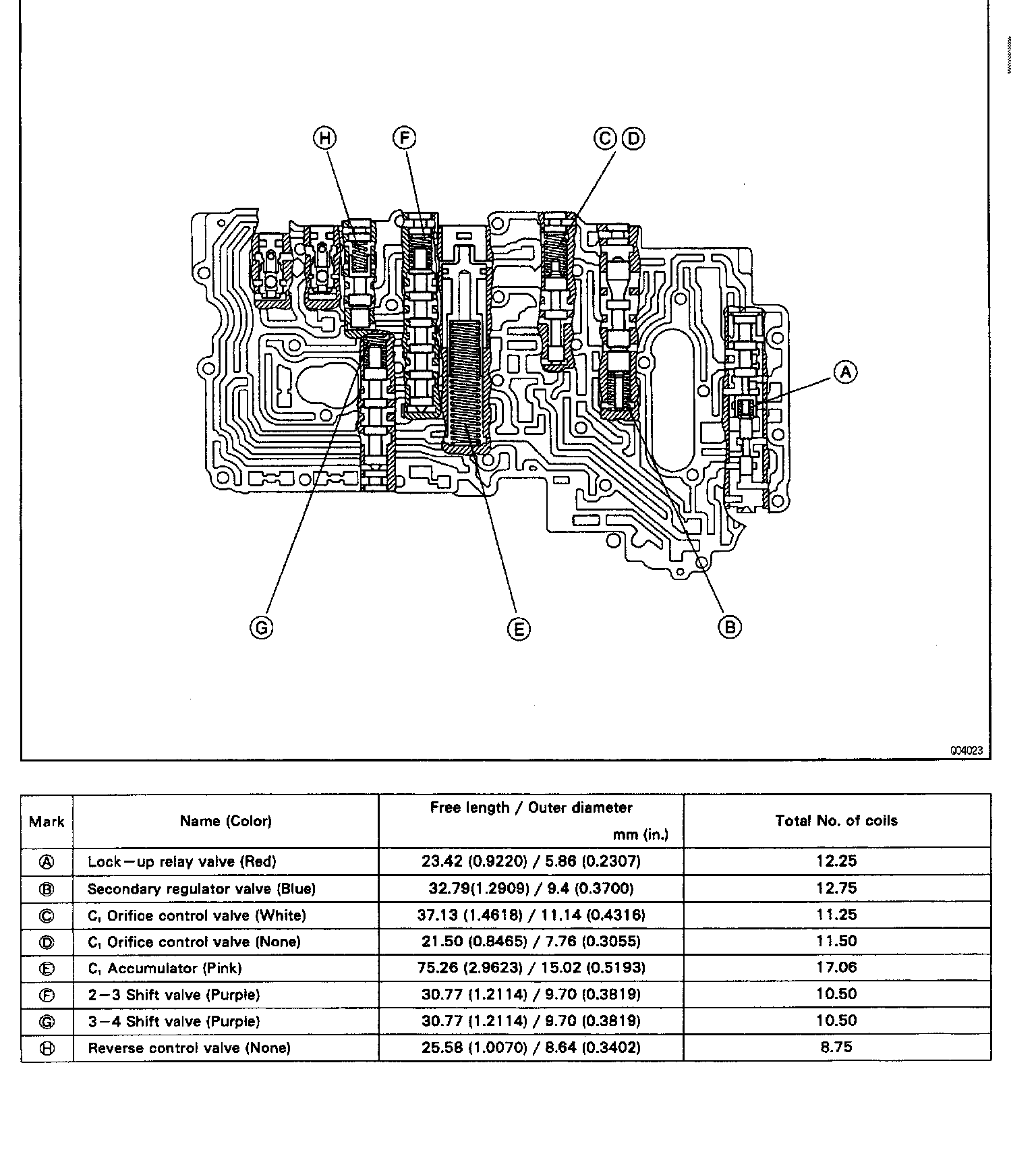

UPPER VALVE BODY

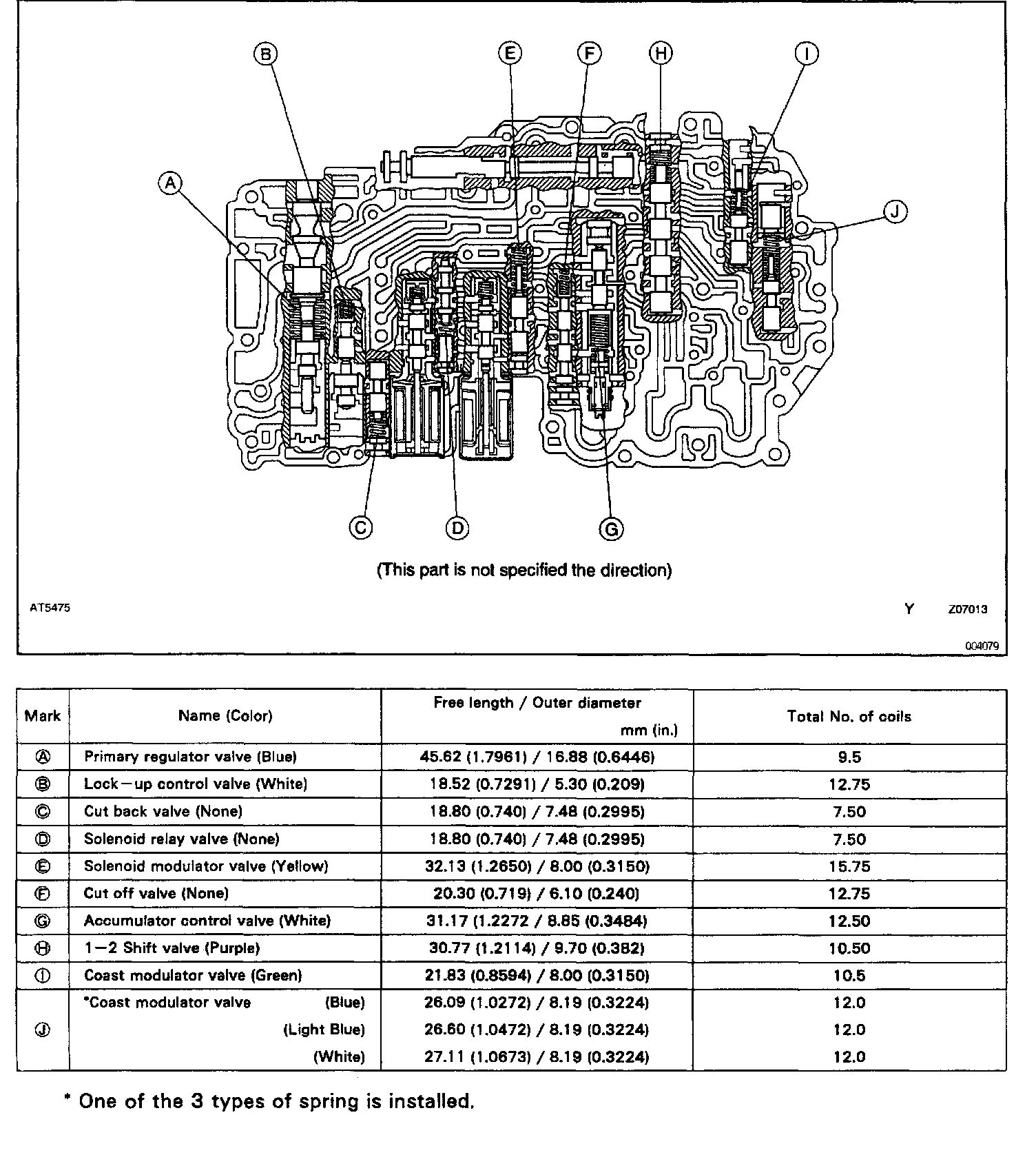

LOWER VALVE BODY
VALVE BODY KEY SPECIFICATIONS
Valve Body Keys:
