Catalytic Converter: Service and Repair

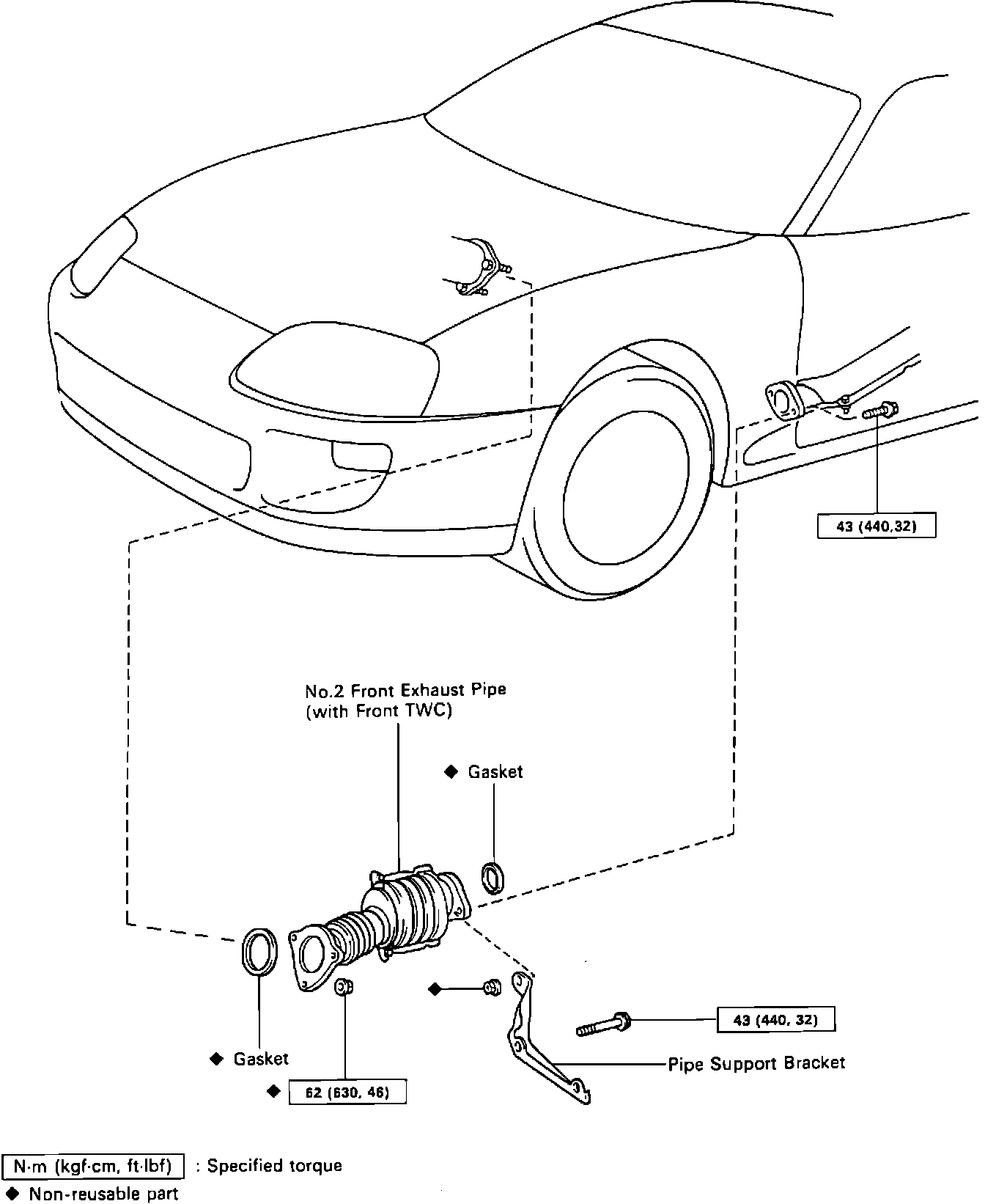

Front TWC And Exhaust Pipes:

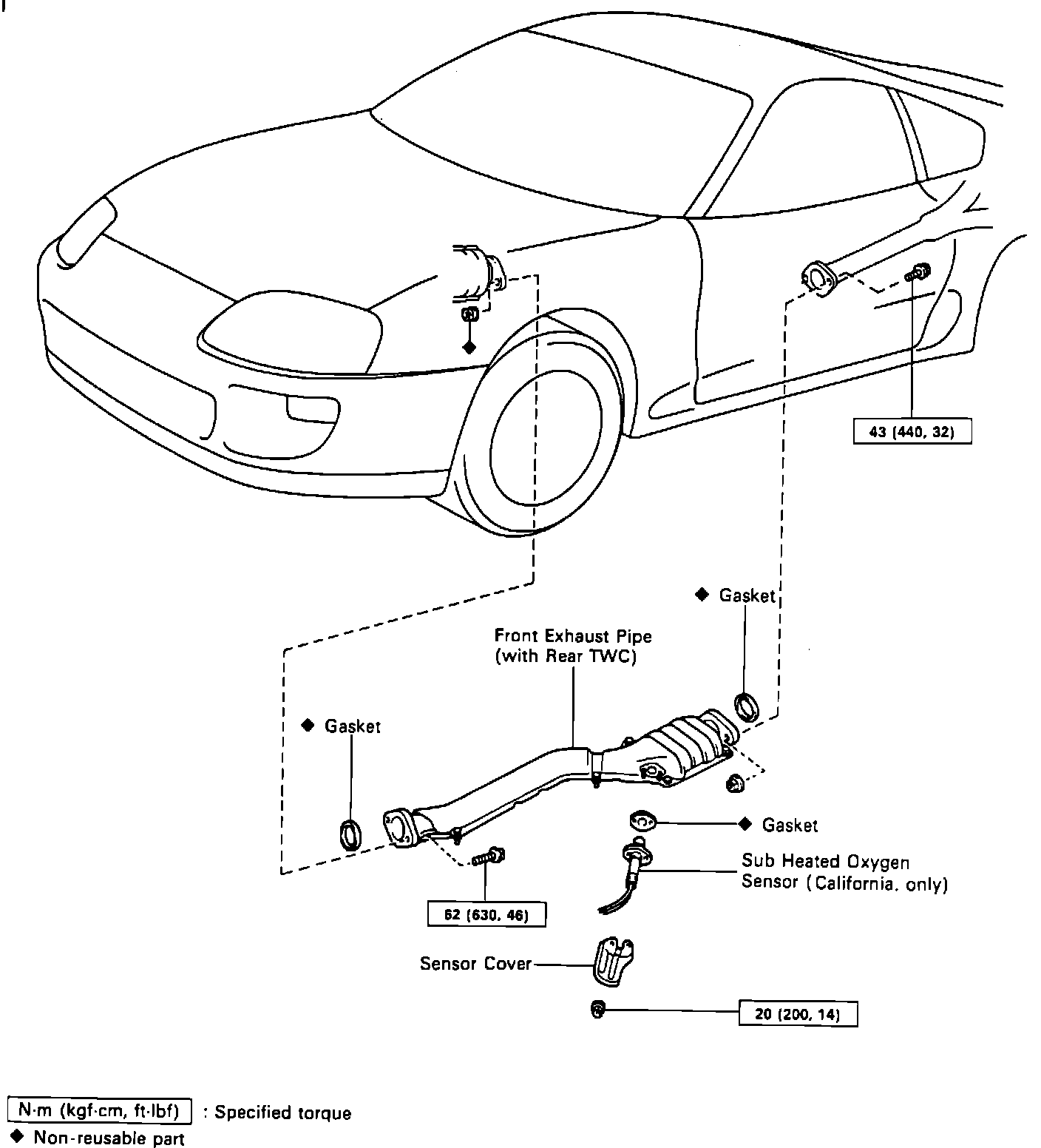

Rear TWC And Exhaust Pipes:

Refer to illustrations for converter replacement. Replace all gaskets and torque all fasteners to specifications.
