Electrical Diagrams

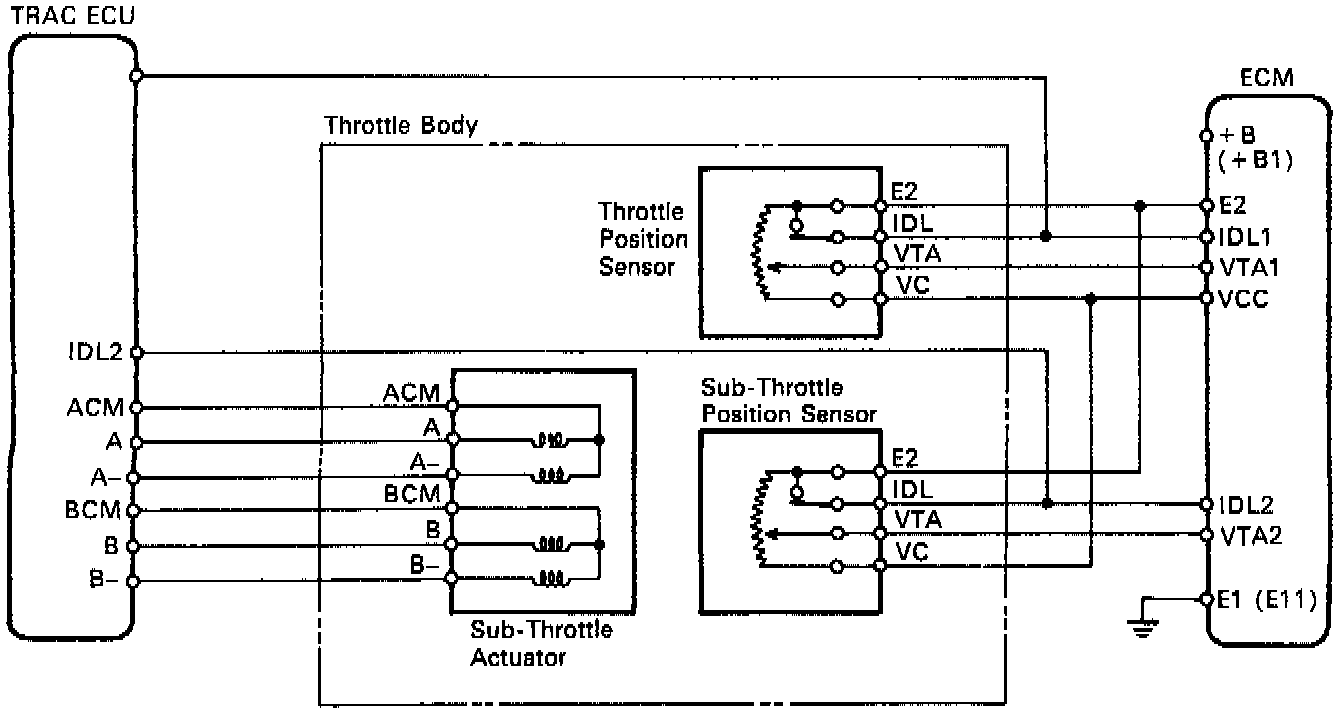

Throttle Position Sensor, Sub-Throttle Position Sensor And Sub-Throttle Actuator Circuit:
