Reverse Restrict Pin Replacement

1. REMOVE REVERSE RESTRICT PIN

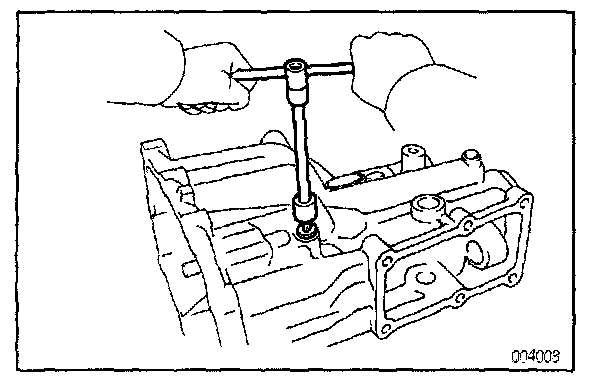

a. Using a hexagon wrench, remove the screw plug.

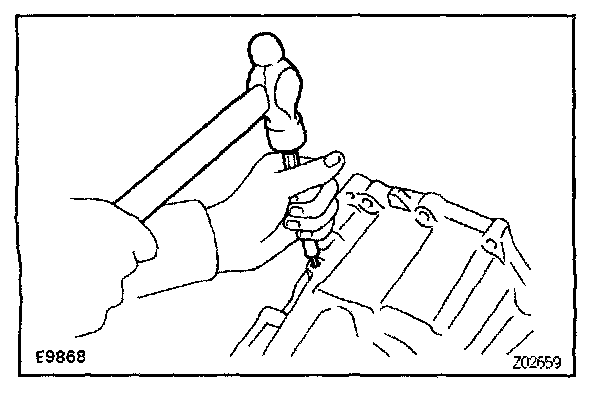

b. Using a pin punch and hammer, drive out the slotted spring pin
c. Pull off the lever housing and slide out the shaft.




2. INSPECT REVERSE RESTRICT PIN

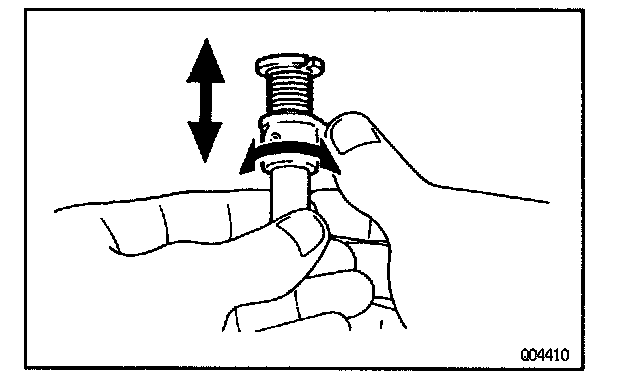

Turn and push the reverse restrict pin by hand. Check for smooth operation.




3. INSTALL REVERSE RESTRICT PIN
a. Install the lever housing.

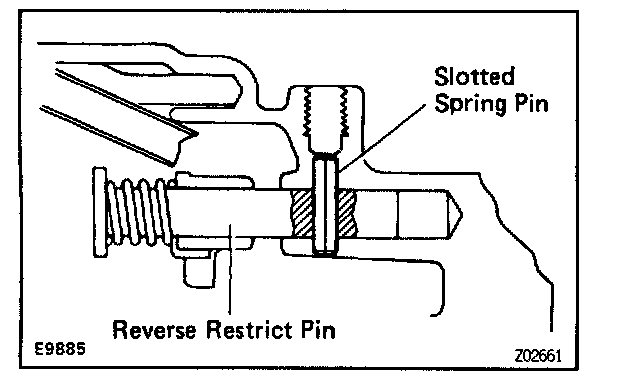

b. Using a pin punch and hammer, drive in the slotted spring pin as shown.




c. Apply sealant to the plug.
Sealant: Part No.08833-00080, THREE BOND 1344. LOCTITE 242 or equivalent

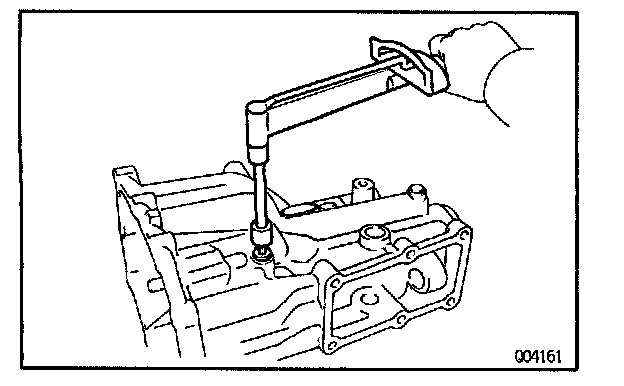

d. Install and torque the screw plug.

Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)
