Downshift Switch: Service and Repair

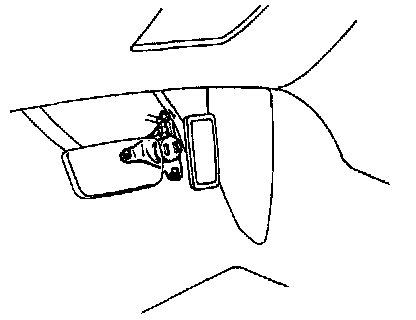

KICK-DOWN SWITCH REPLACEMENT



1. REMOVAL OF KICK-DOWN SWITCH.
- Remove the 3 bolts and kick-down switch.
- Disconnect the kick-down switch connector.
2. INSTALLATION OF KICK-DOWN SWITCH.
- Connect the kick-down switch connector.
- Install the kick-down switch and 3 bolts.
