Engine Control Module

ECM Terminal ID

ECM Terminal ID - Connector E9, Terminals 1 ~ 20; Connector E10, Terminals 1 ~ 40:





ECM Terminal ID - Connector E9, Terminals 21 ~ 80:

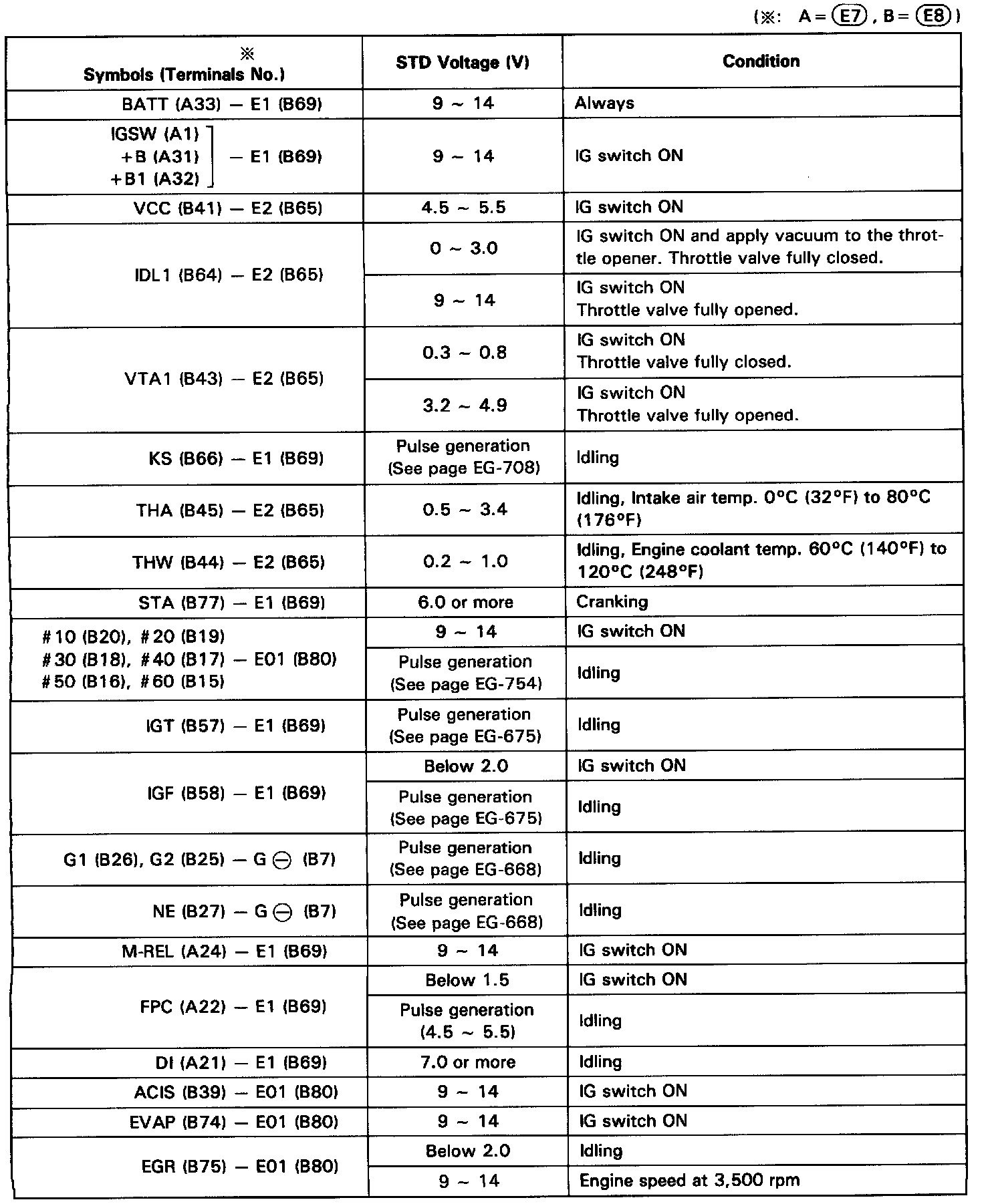

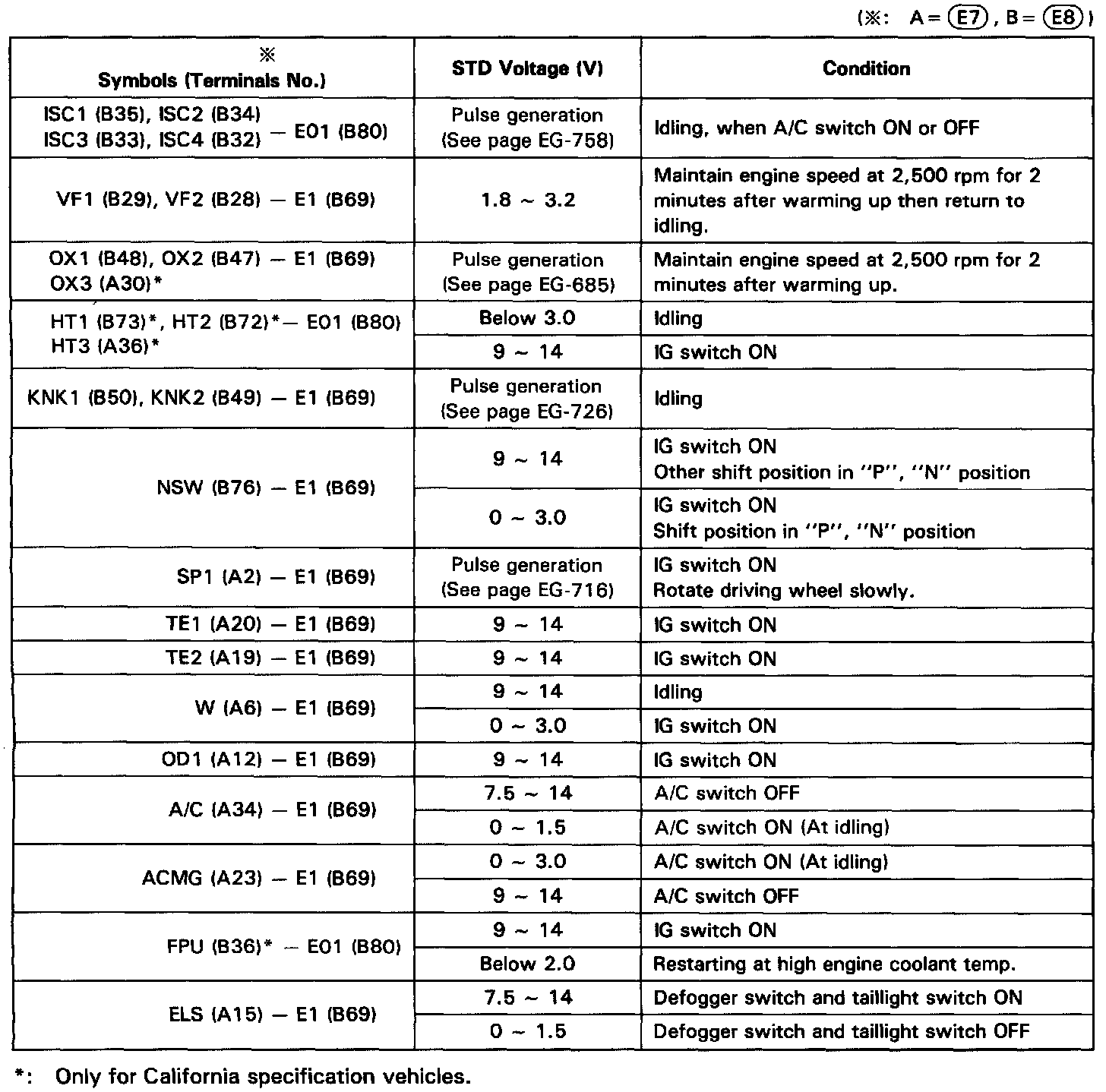

Standard Values of ECM Terminals
