Throttle Position Sensor Inspection

CIRCUIT DESCRIPTION
The throttle position sensor detects the throttle valve opening angle and sends signals to ECM.

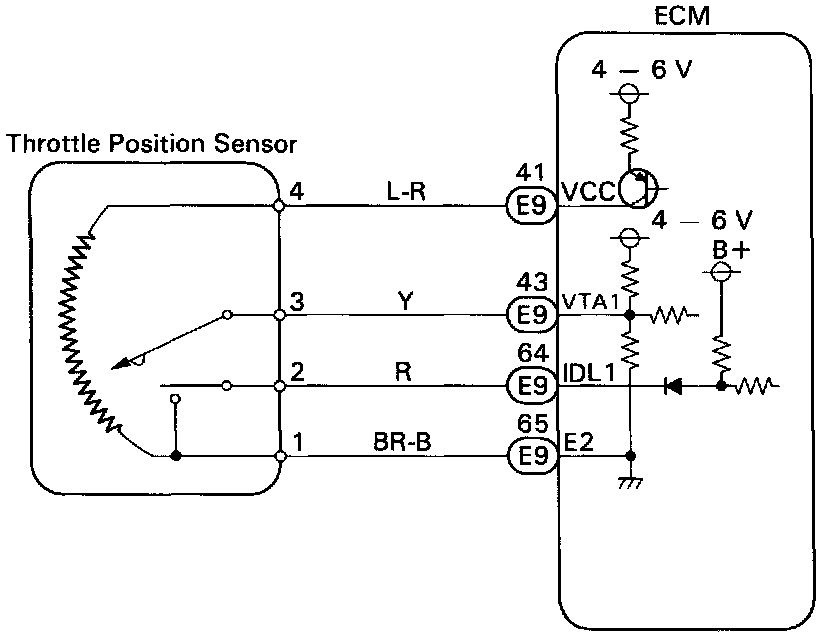

WIRING DIAGRAM

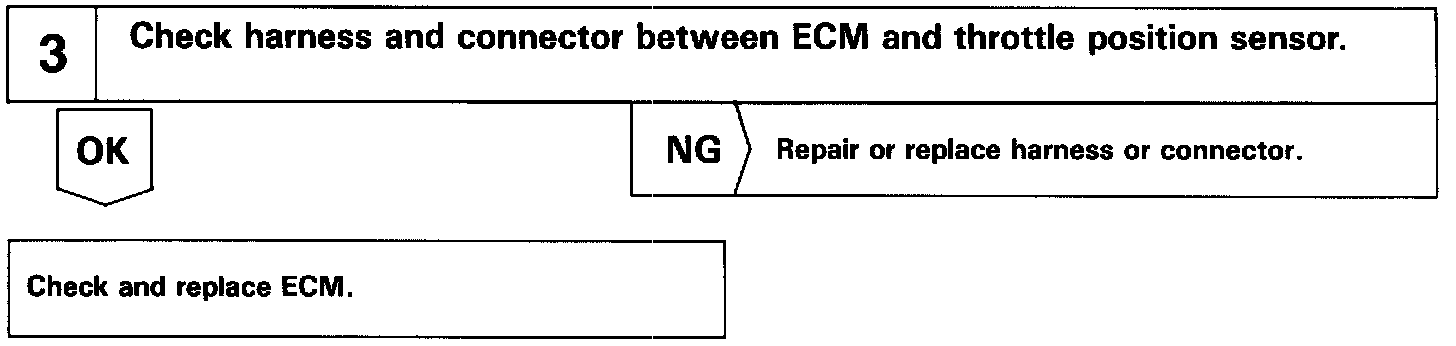

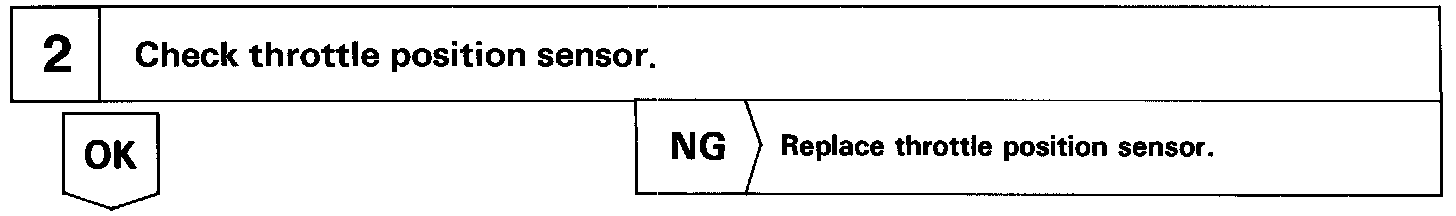

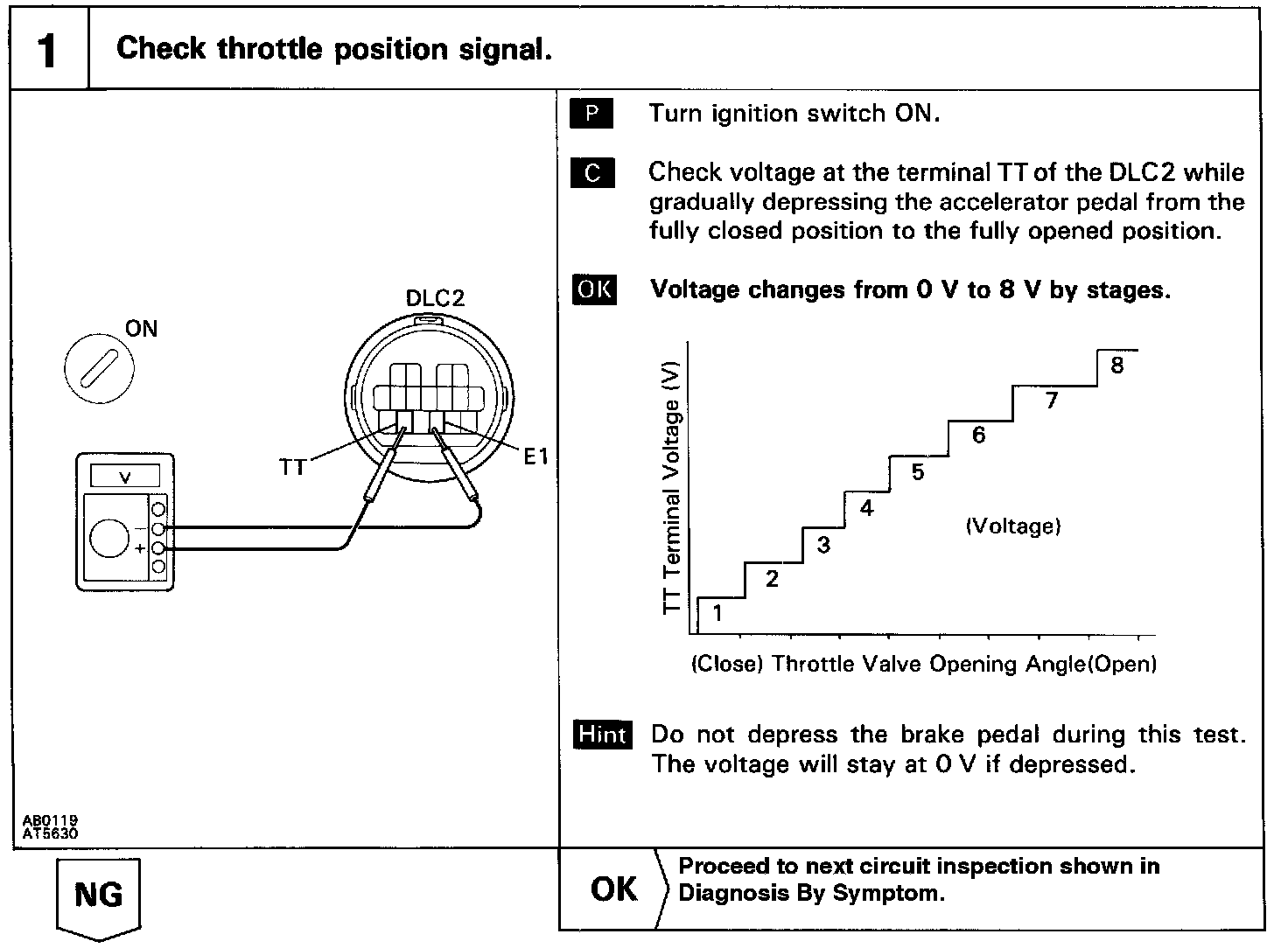

INSPECTION PROCEDURE
