TE1 Terminal Circuit

CIRCUIT DESCRIPTION
The ECM displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.

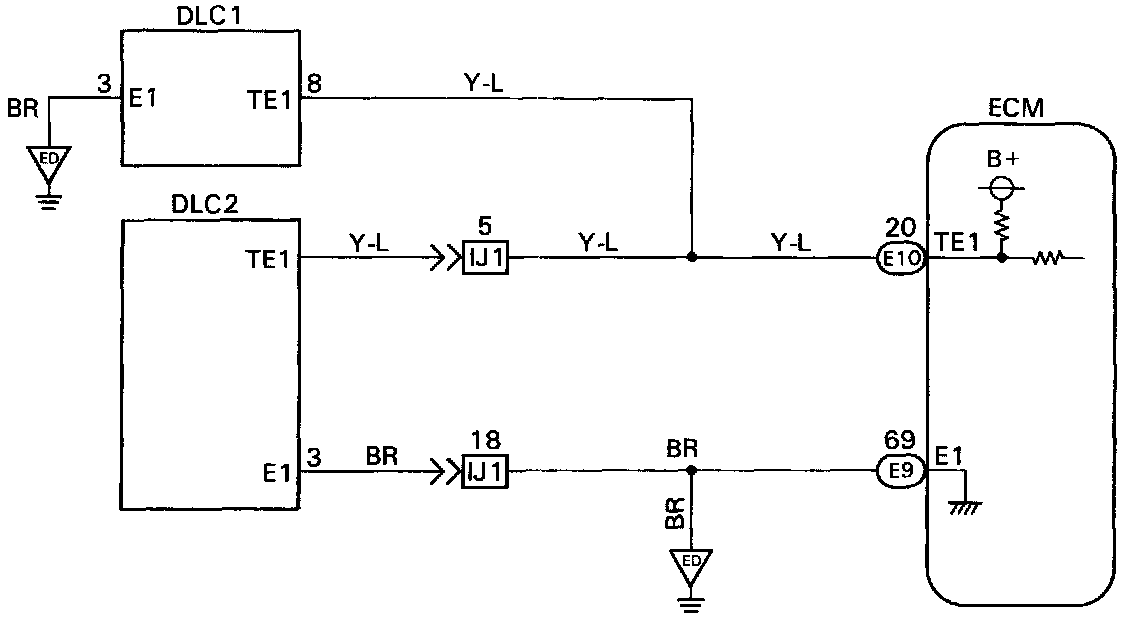

WIRING DIAGRAM

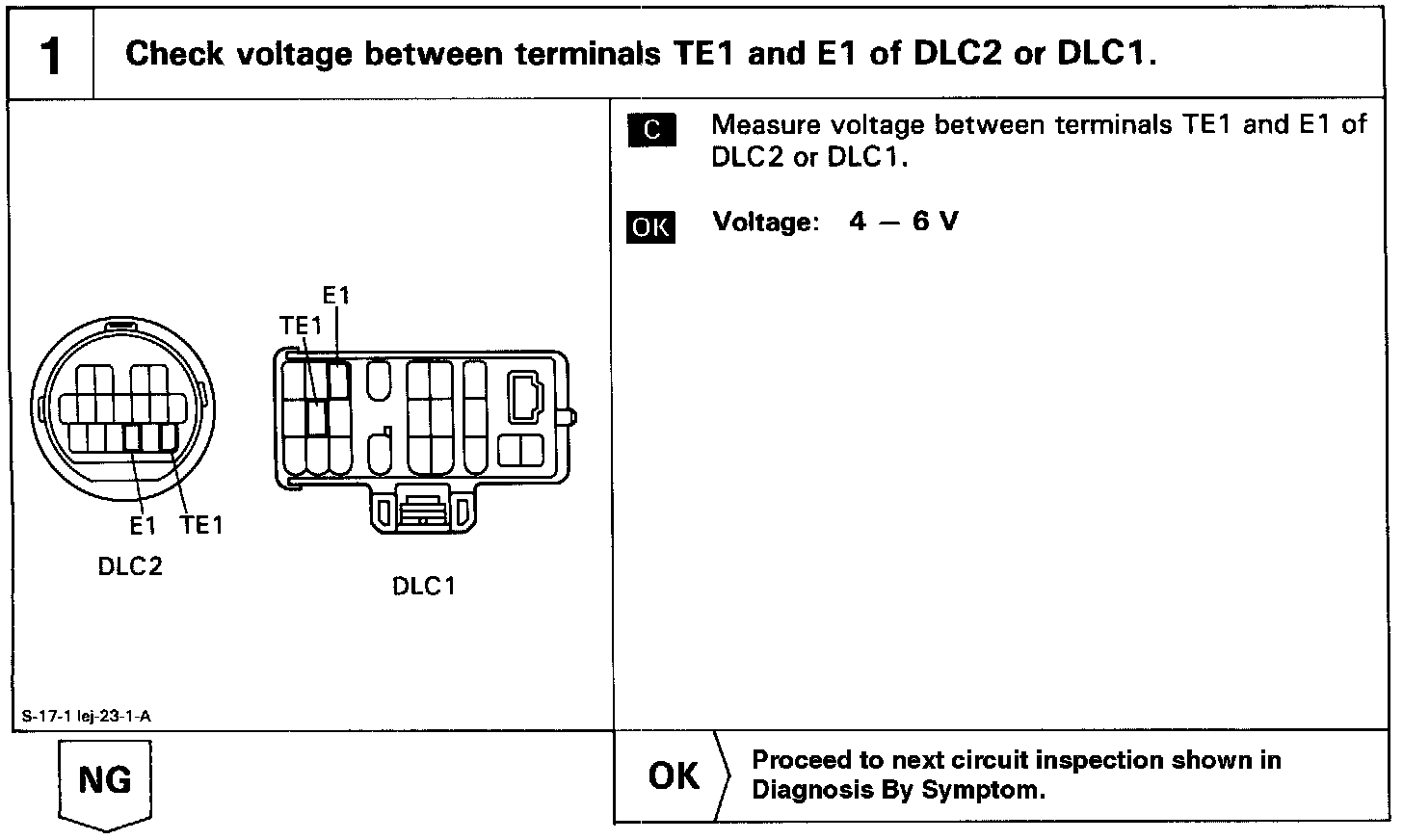

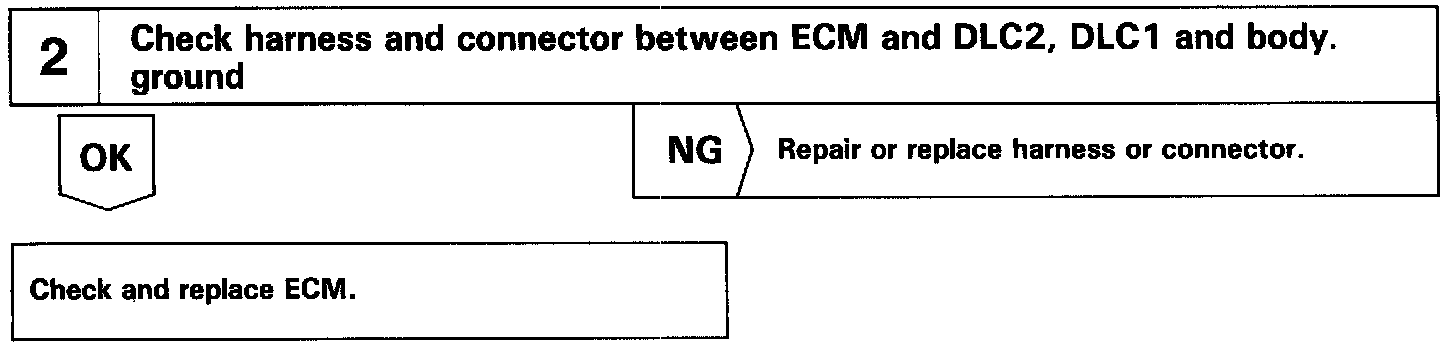

INSPECTION PROCEDURE
