Service Specifications

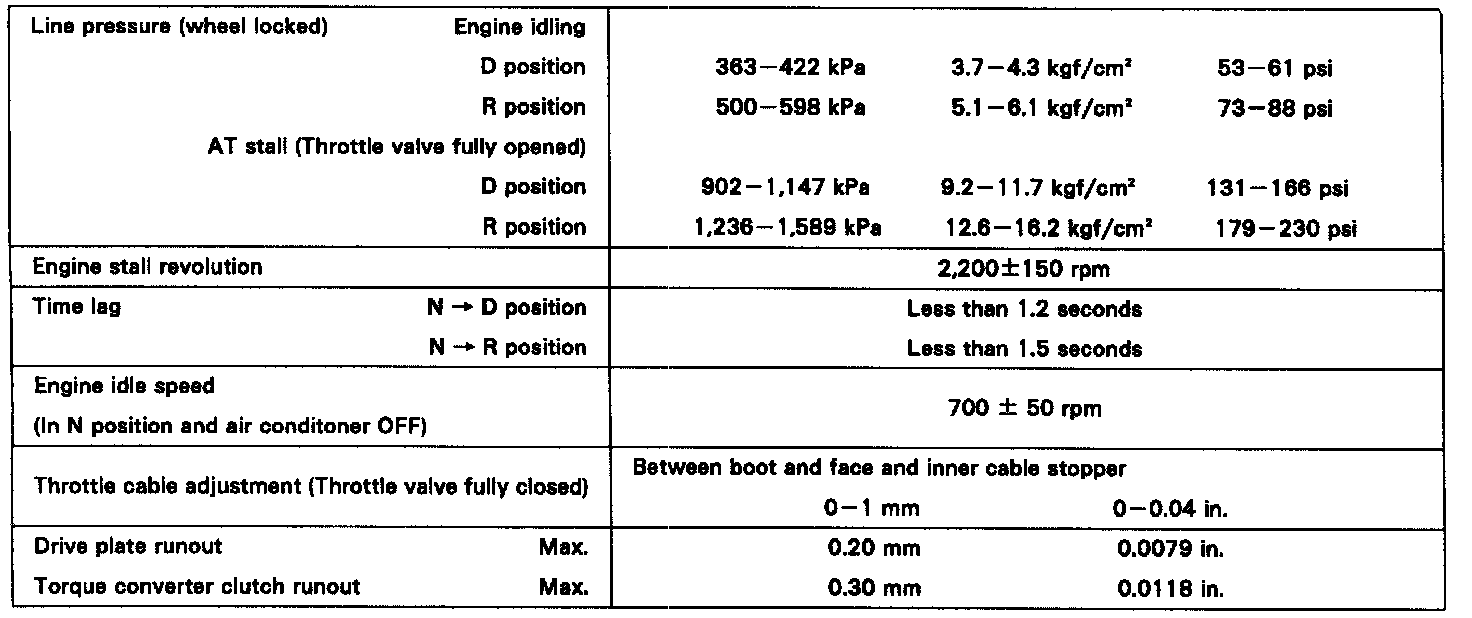

SERVICE DATA





SHIFT POINT
Normal (NORM) Mode

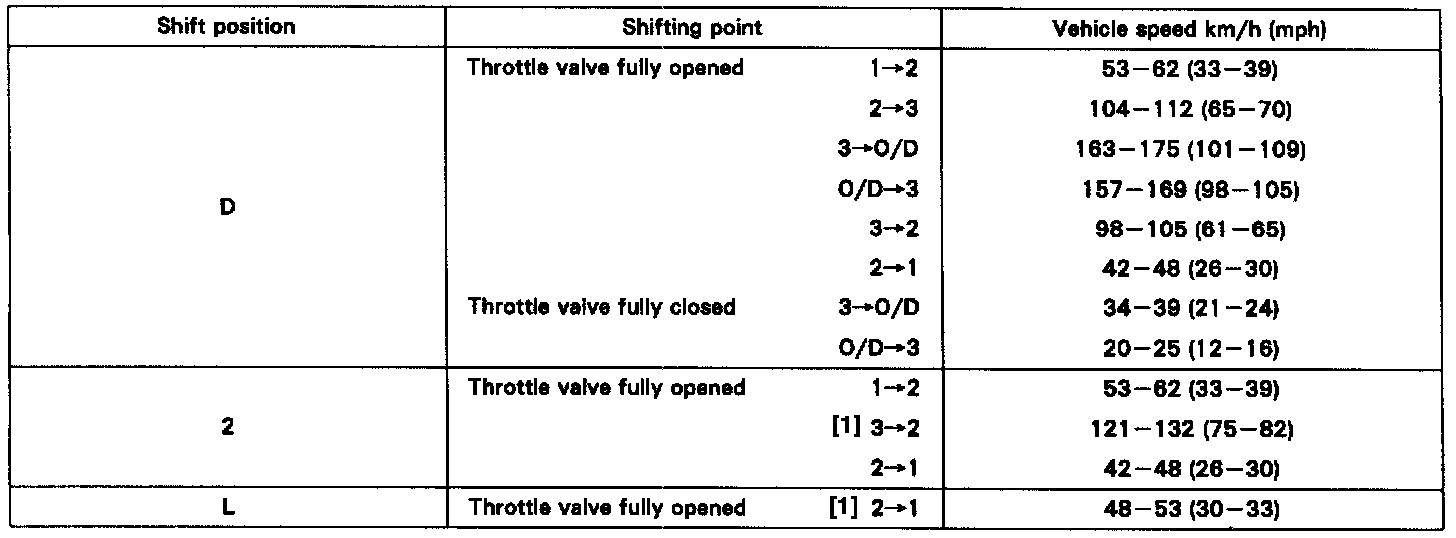

Automatic Shift Point Schedule (NORM Mode):

Manual (MANU) Mode

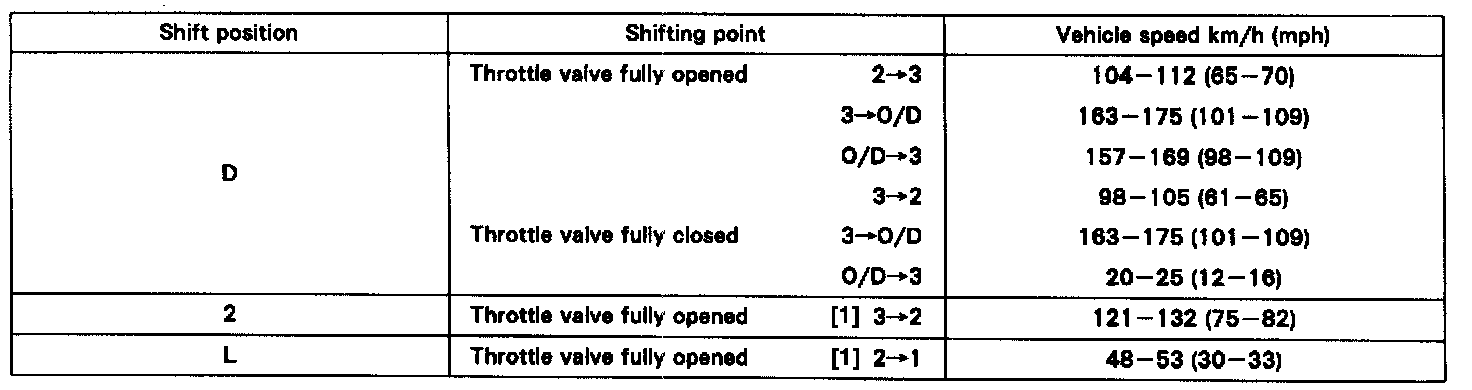

Shift Point Schedule (MANU Mode):

[1] Shift point is the same when the throttle valve is closed as when the throttle valve is opened.

^ Shift up to 3rd will not occur when the engine coolant temp. is below 35°C (95°F) and the vehicle speed is below 40 km/h (25 mph).
^ Shift-up to O/D will not occur when the engine coolant temp. is below 60°C (140°F) and the vehicle speed is below 63 km/h (39 mph).
^ When the vehicle speed drops to 10 km/h (6 mph) or more below the cruise control set vehicle speed, shift down from O/D to 3rd occurs.


LOCK-UP POINT

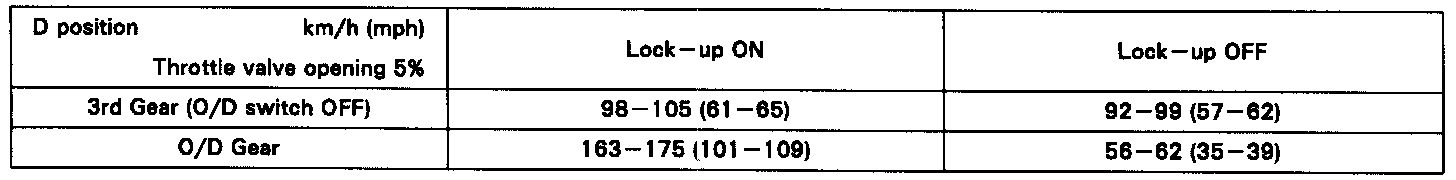

Normal (NORM) Mode

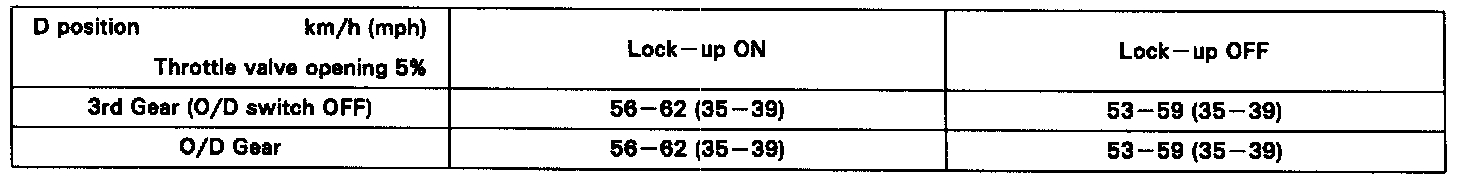

Manual (MANU) Mode





^ There is no lock-up in the 2 and L positions.
^ In the following cases. the lock-up will be released regardless of the lock-up pattern.
- When the throttle valve is completely closed.
- When the brake light switch is ON.
