Electrical Diagrams

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GE):

Page 1 of 5

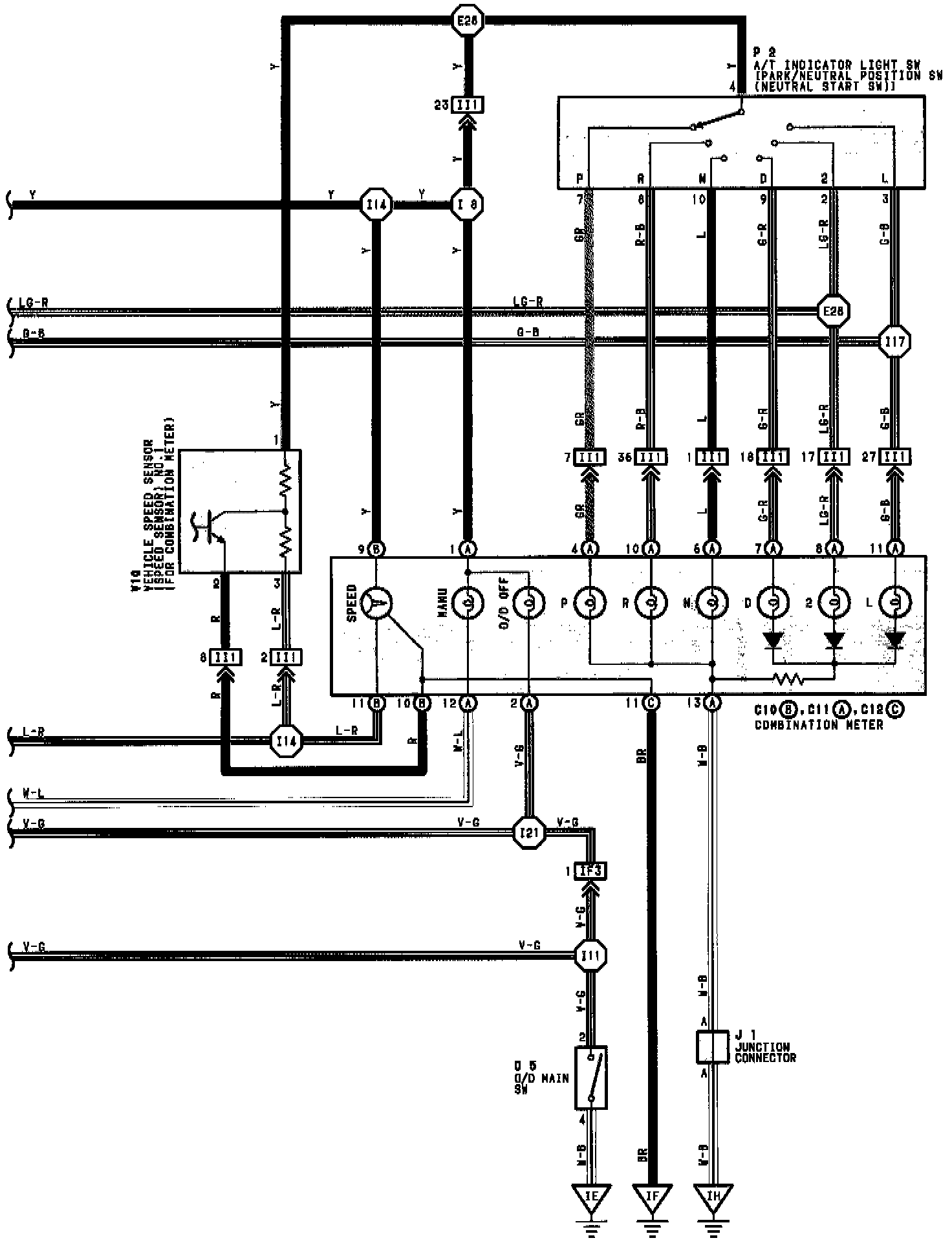

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GE):

Page 2 of 5

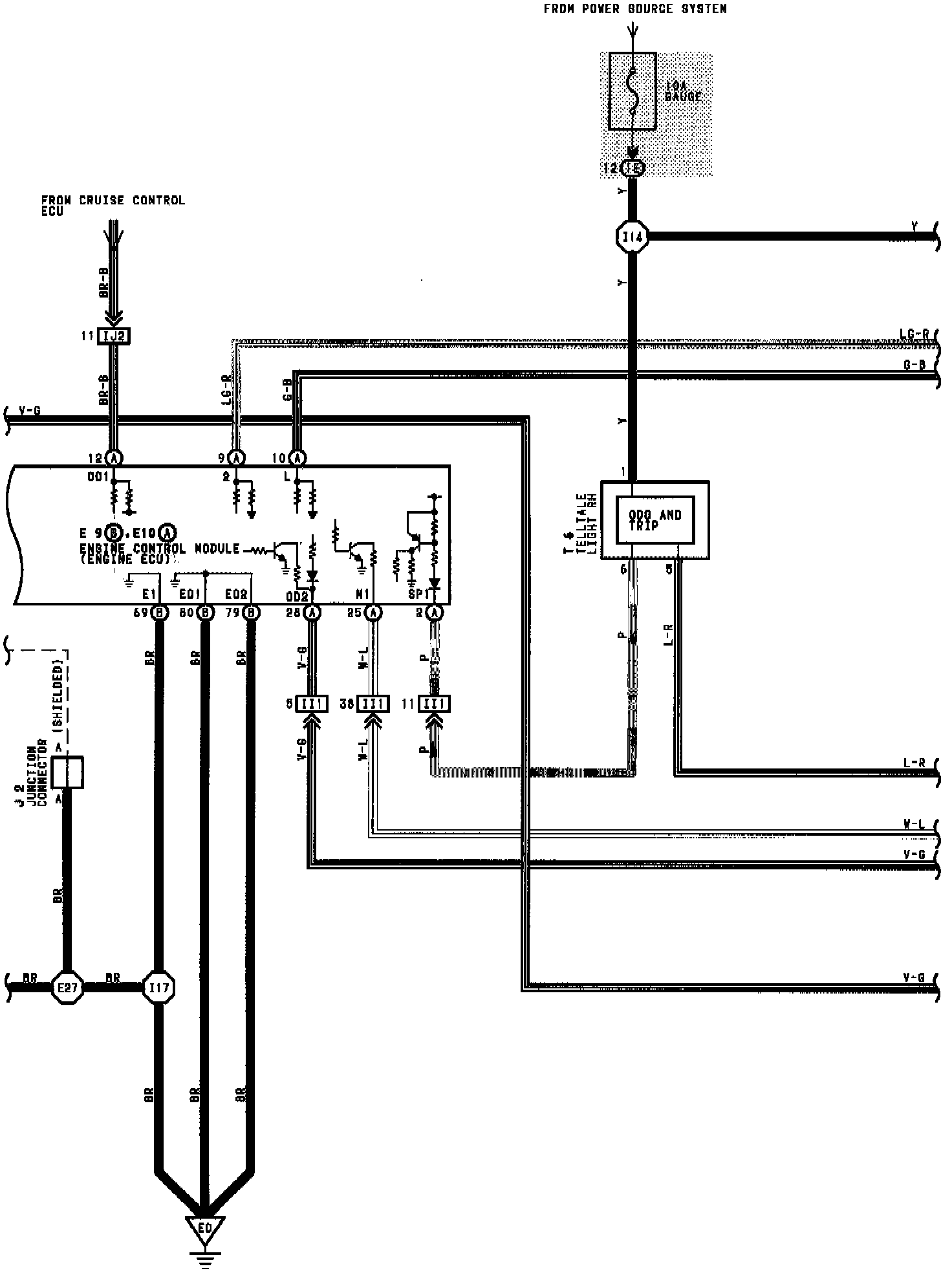

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GE):

Page 3 of 5

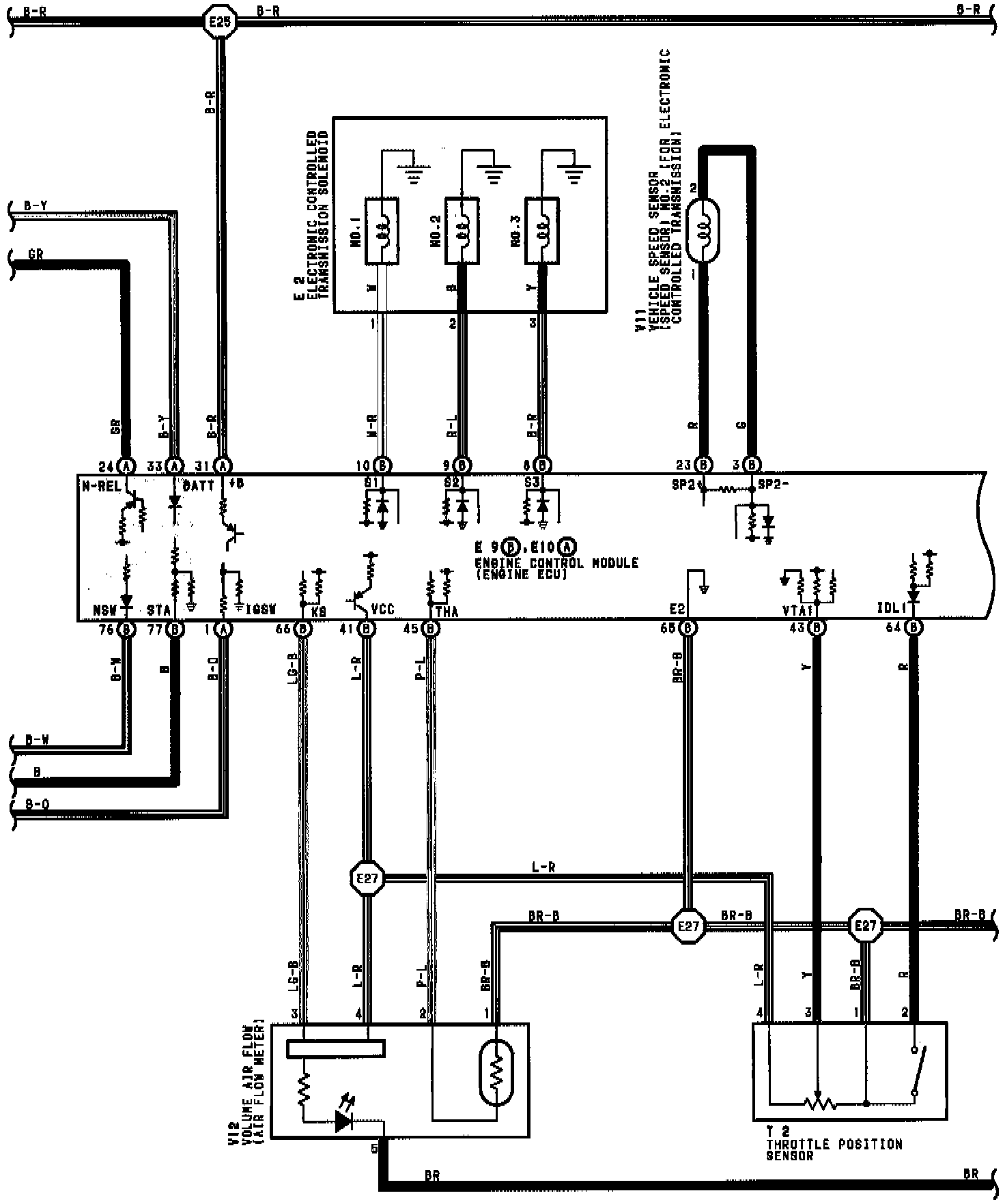

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GE):

Page 4 of 5

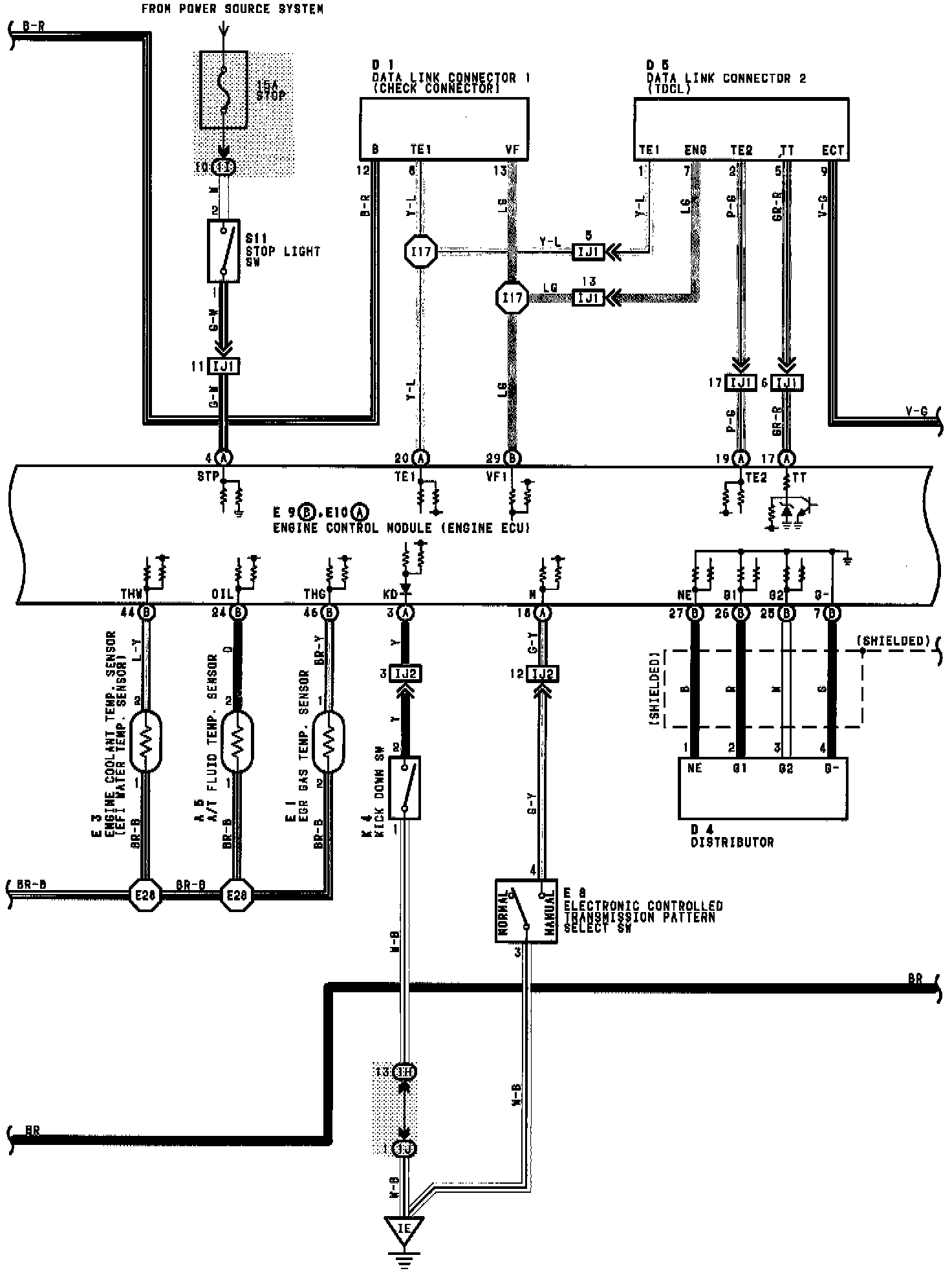

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GE):

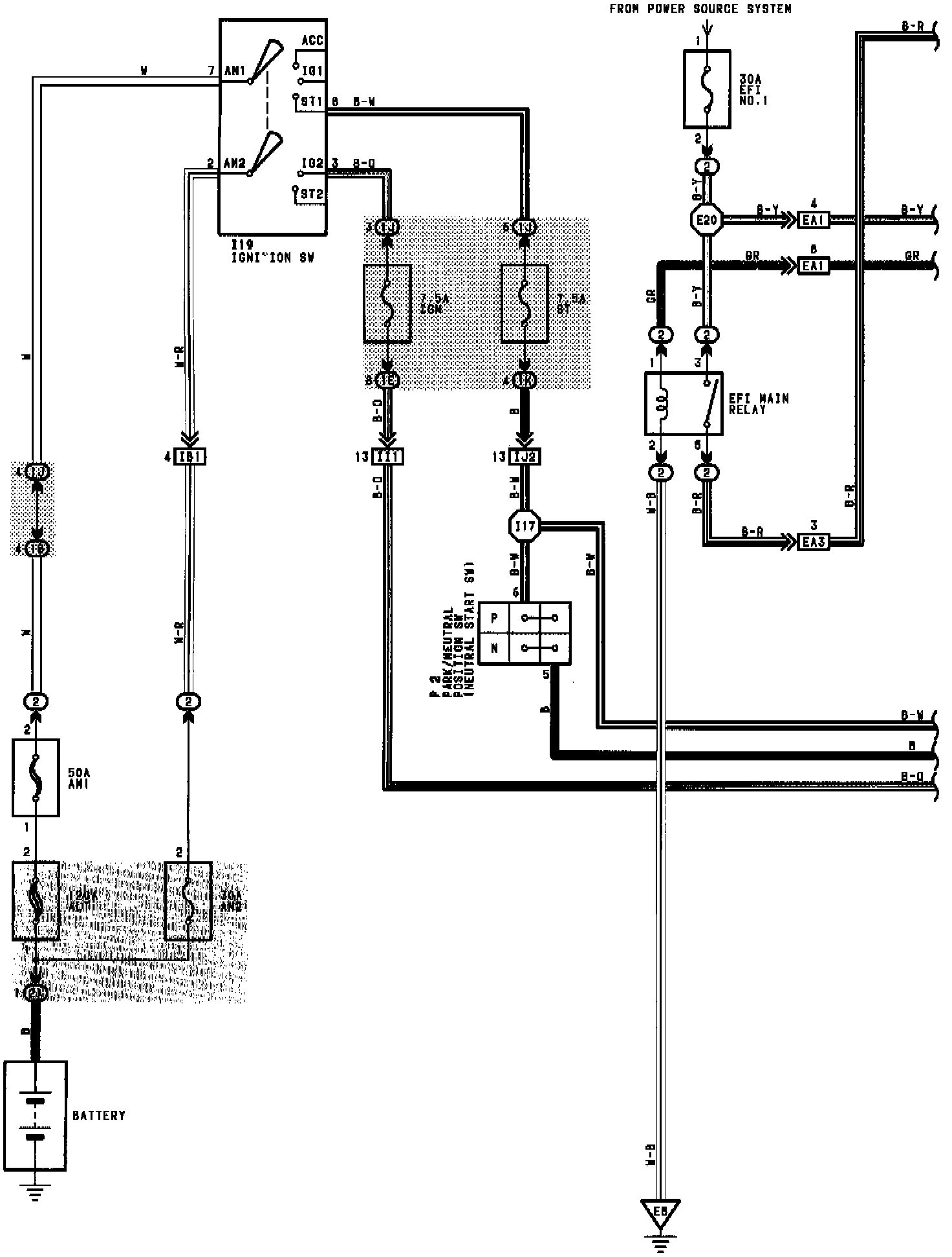

Page 5 of 5
