Connector Views

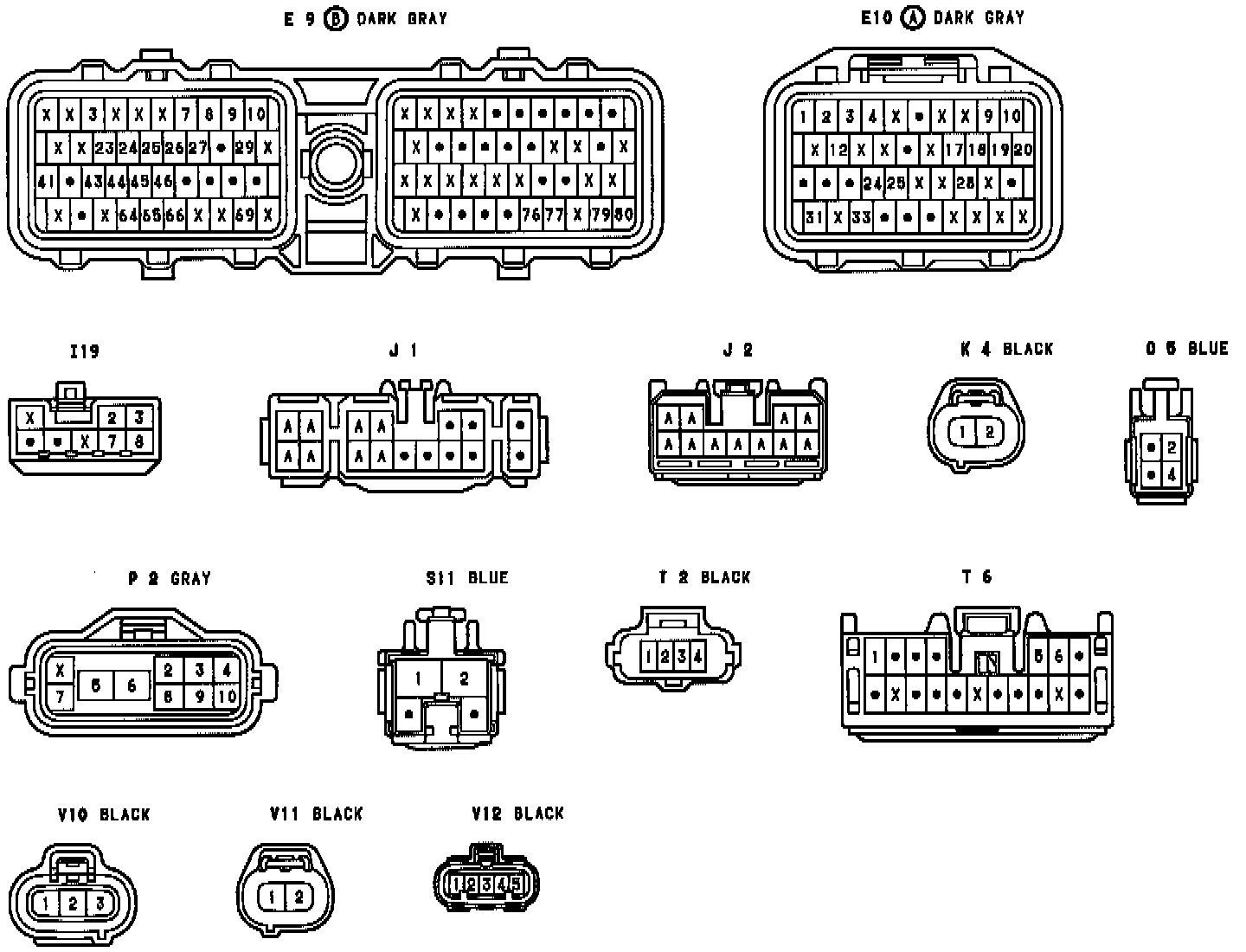

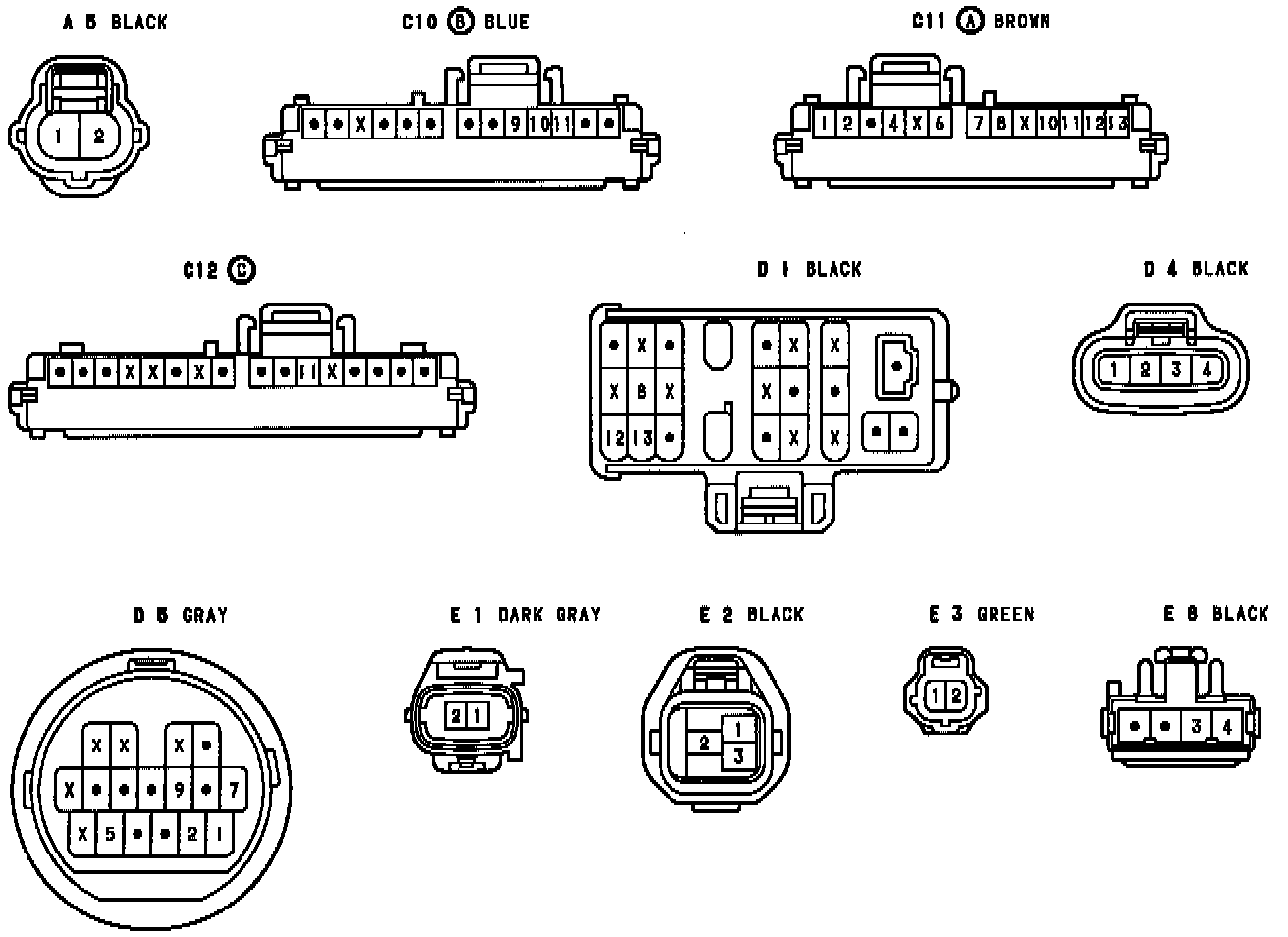

Electronic Controlled Transmission And A/T Indicator Connector Views (2JZ-GE):
Electronic Controlled Transmission And A/T Indicator Connector Views (2JZ-GE):
