Splice Locations

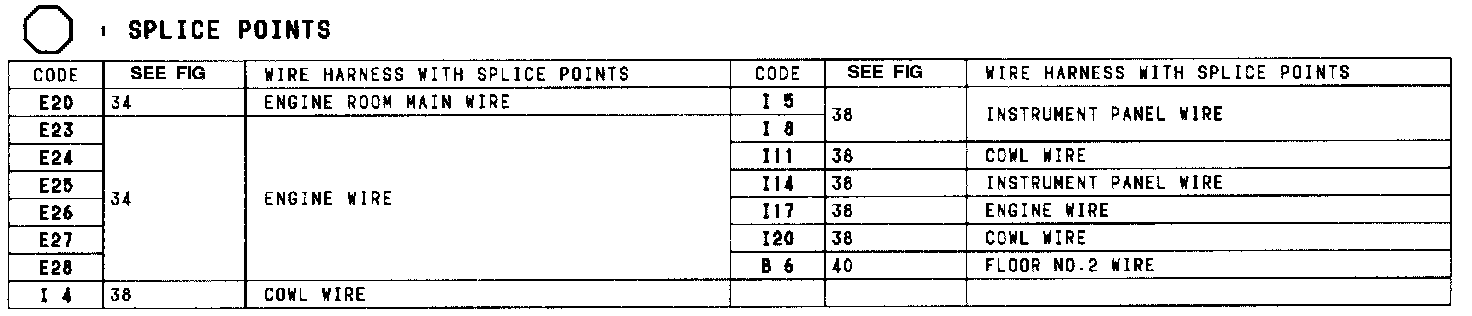

Splice Points:

SPLICE POINTS

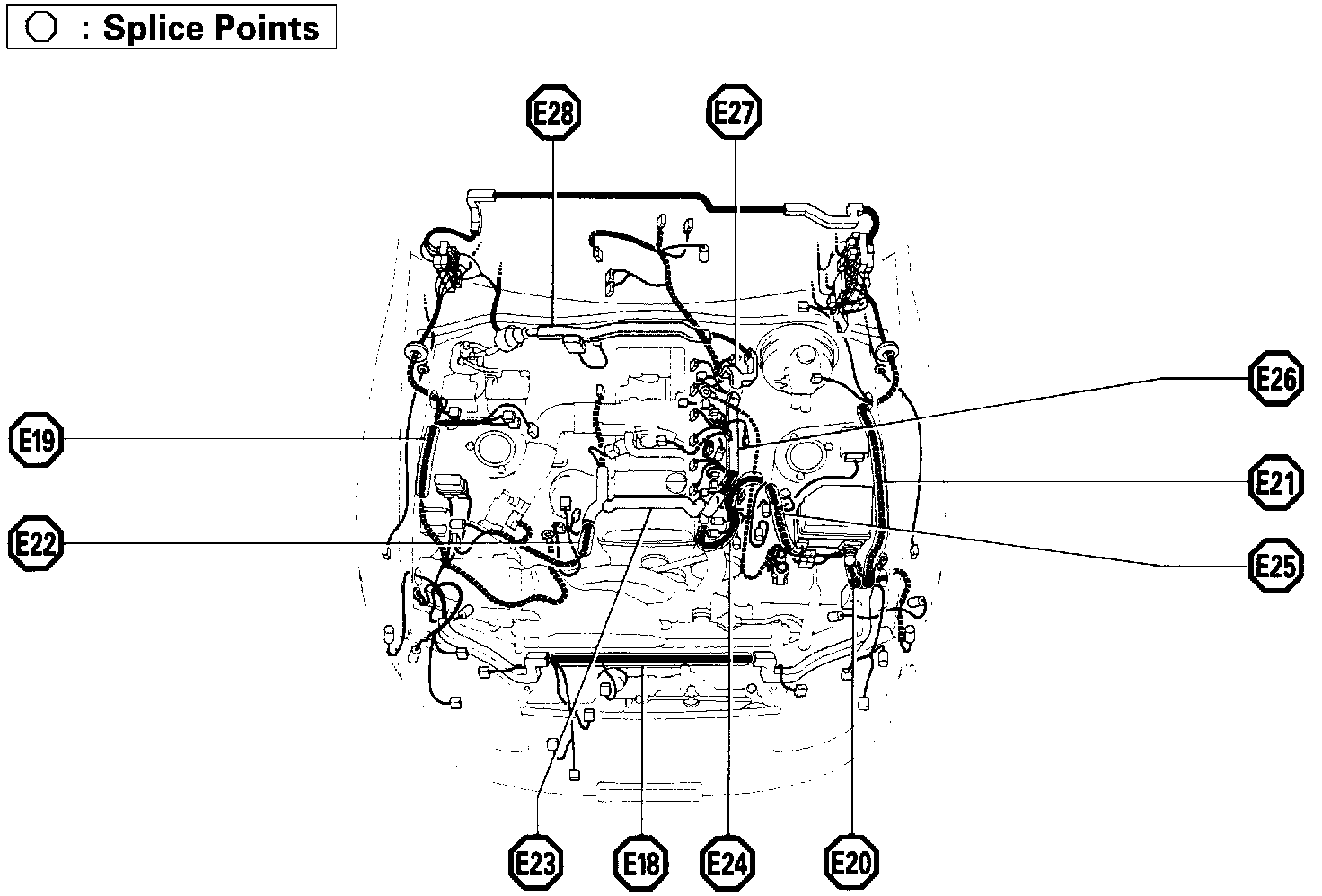

Location Of Splice Points (Fig 34):

FIG 34

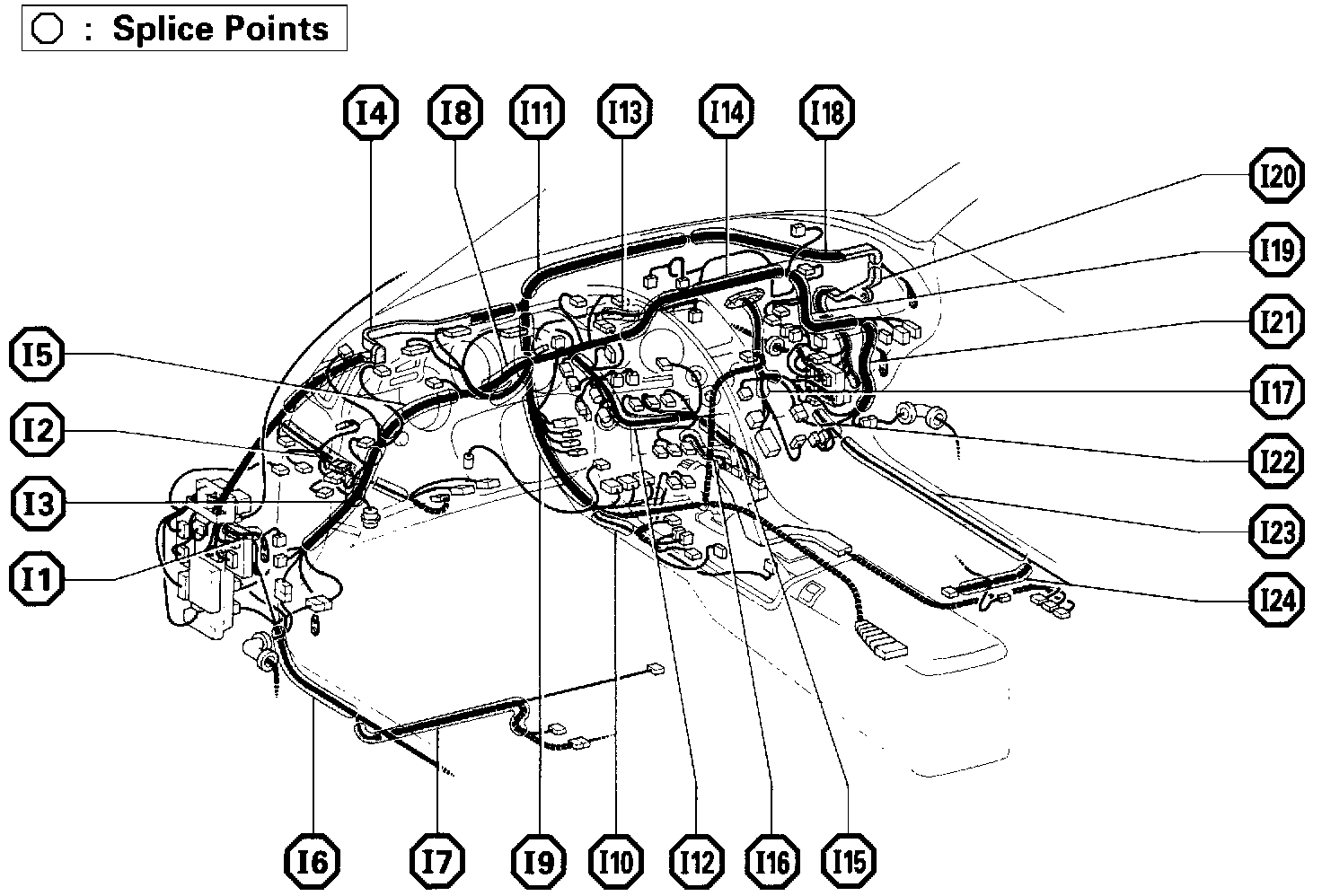

Location Of Splice Points (Fig 38):

FIG 38

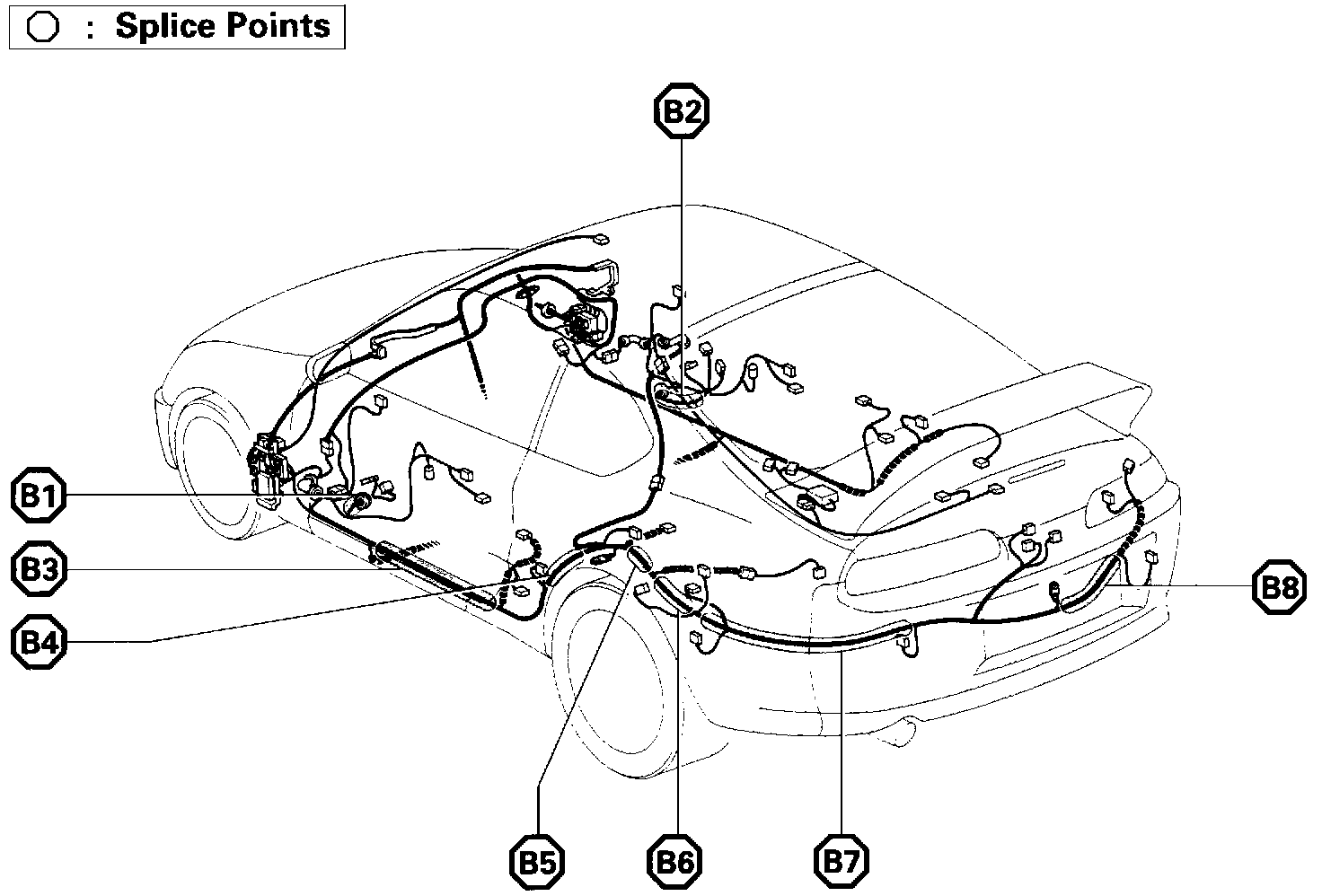

Location Of Splice Points (Fig 40):

FIG 40
