Engine Compartment Connectors and Relay Block No.2

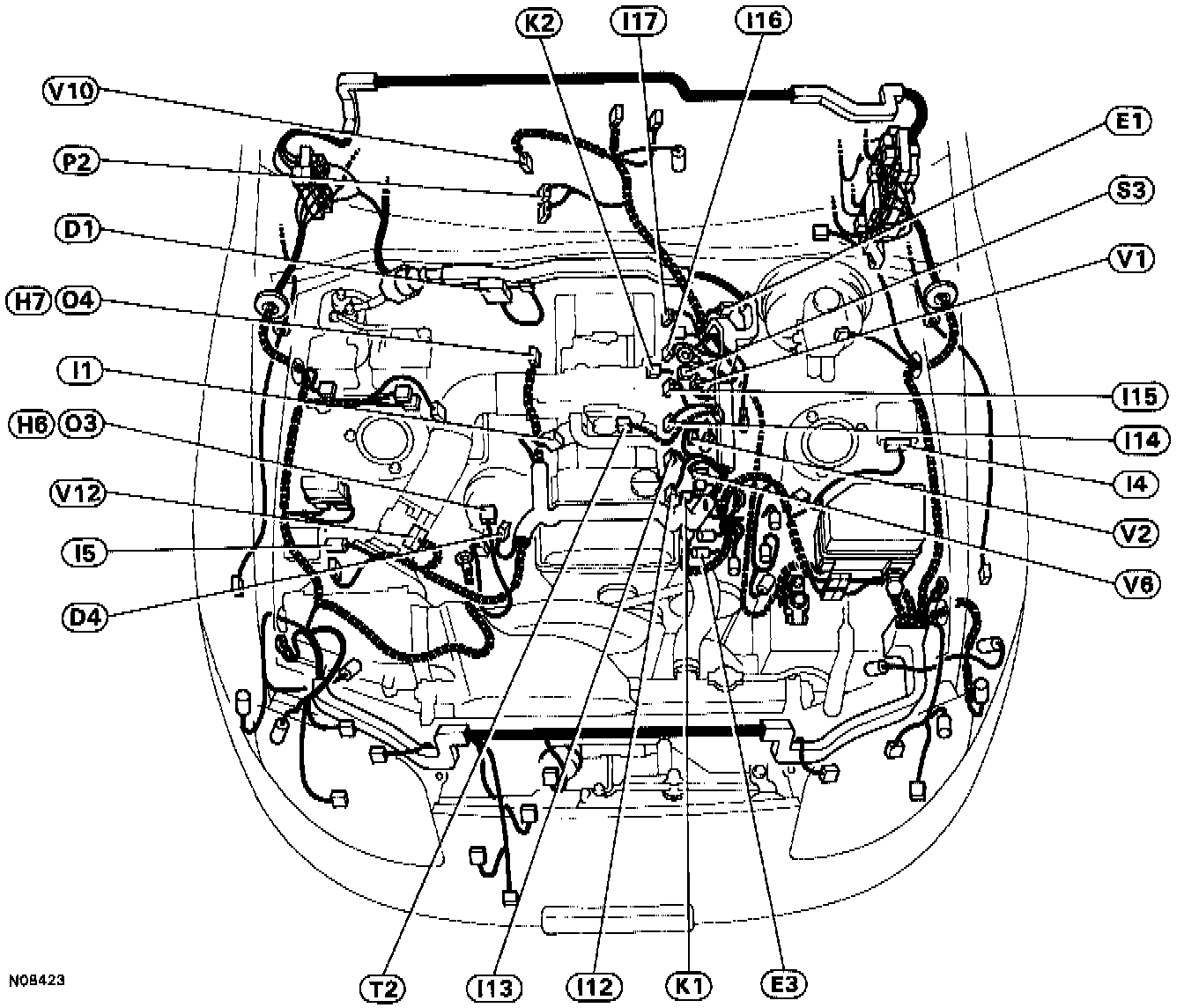

CONNECTOR LOCATIONS - PART 1

Connector Views - DLC1, EGR Gas Temp. Sensor, Eng. Coolant Temp. Sensor, O2 Sensor, IAC Valve, Distributor:

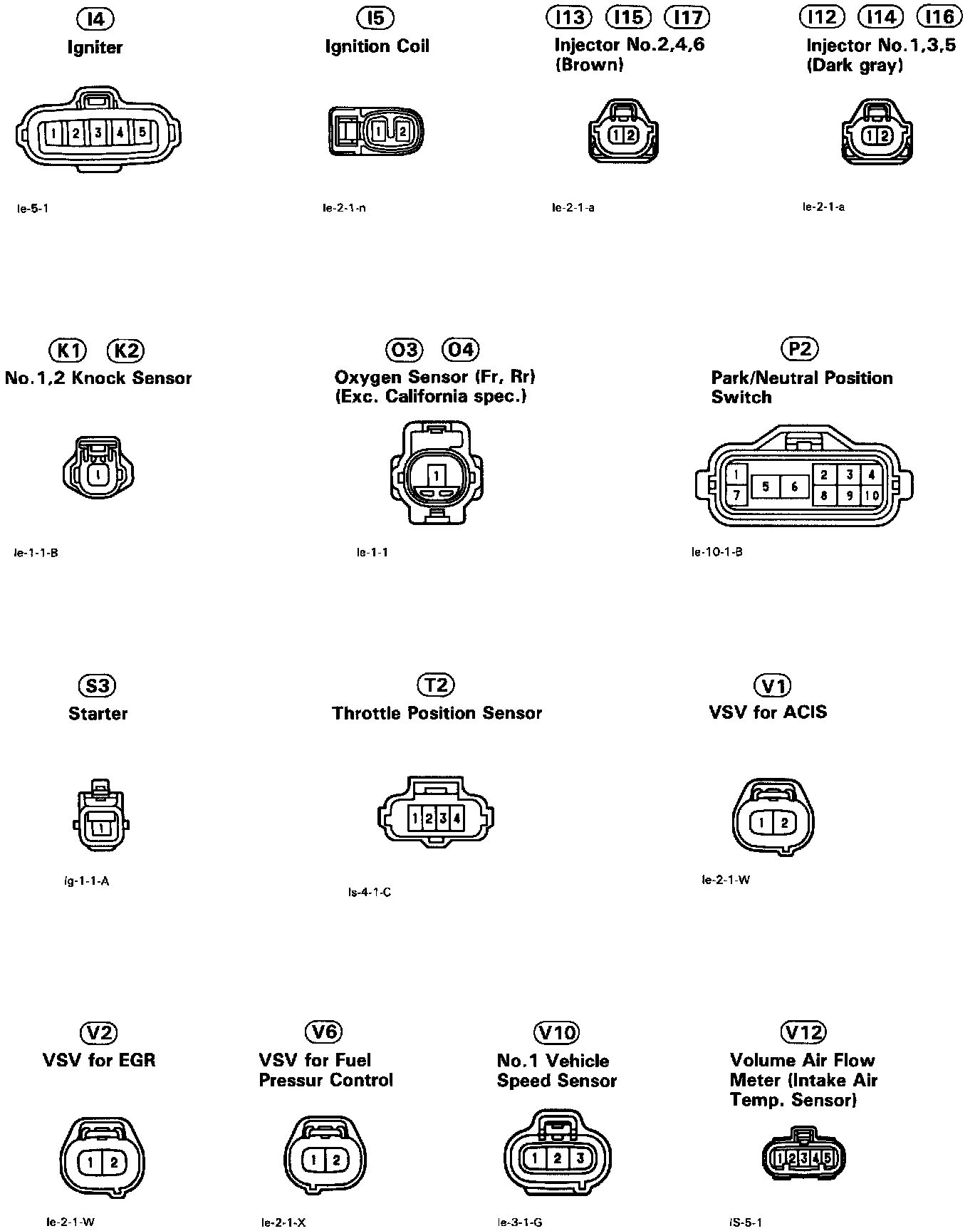

Connector Views - Igniter, Ign Coil, Injectors, Knock Sensor, O2 Sensor, PNP Position Switch:




CONNECTOR VIEWS - PARTS 1

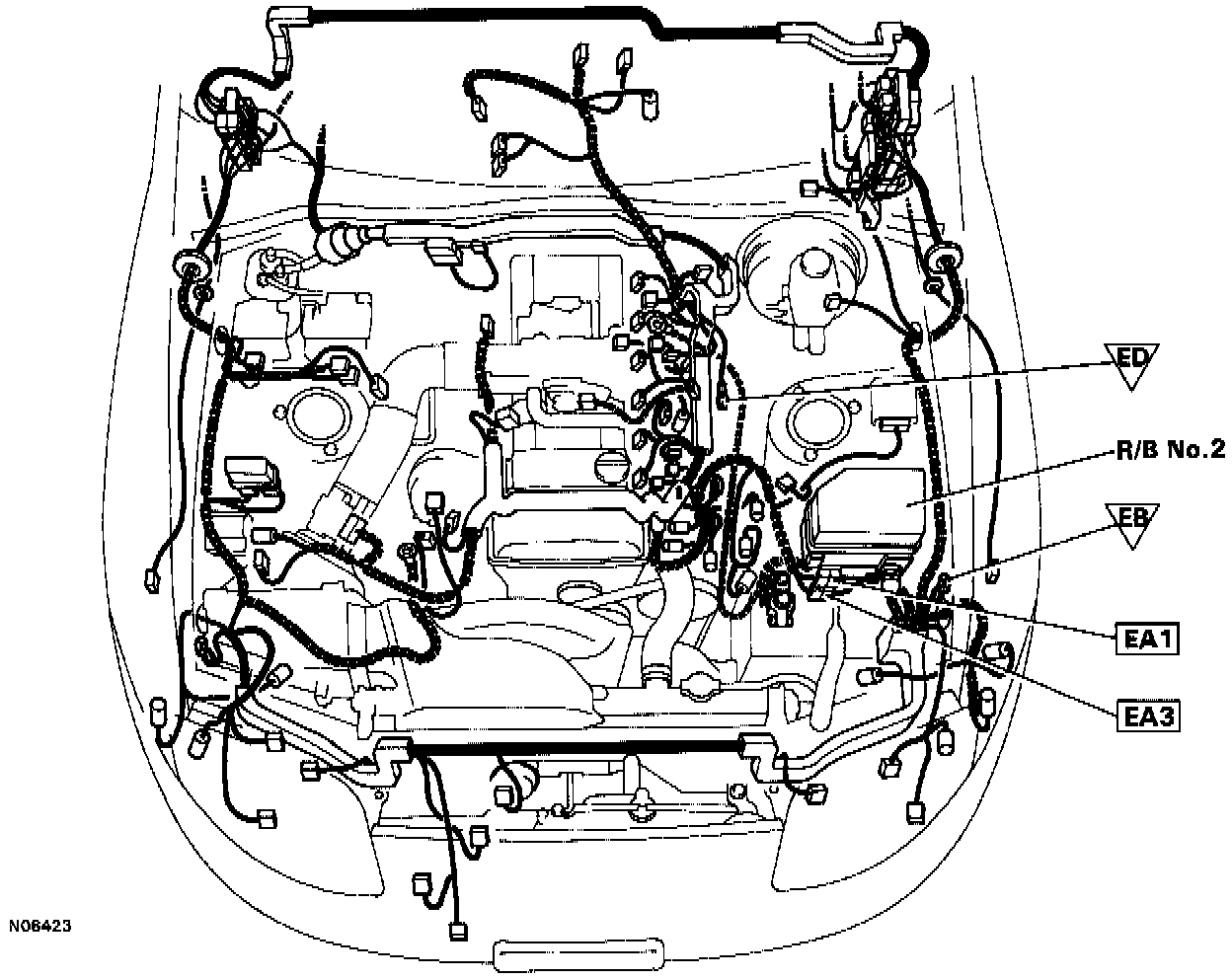

CONNECTOR LOCATIONS - PART 2

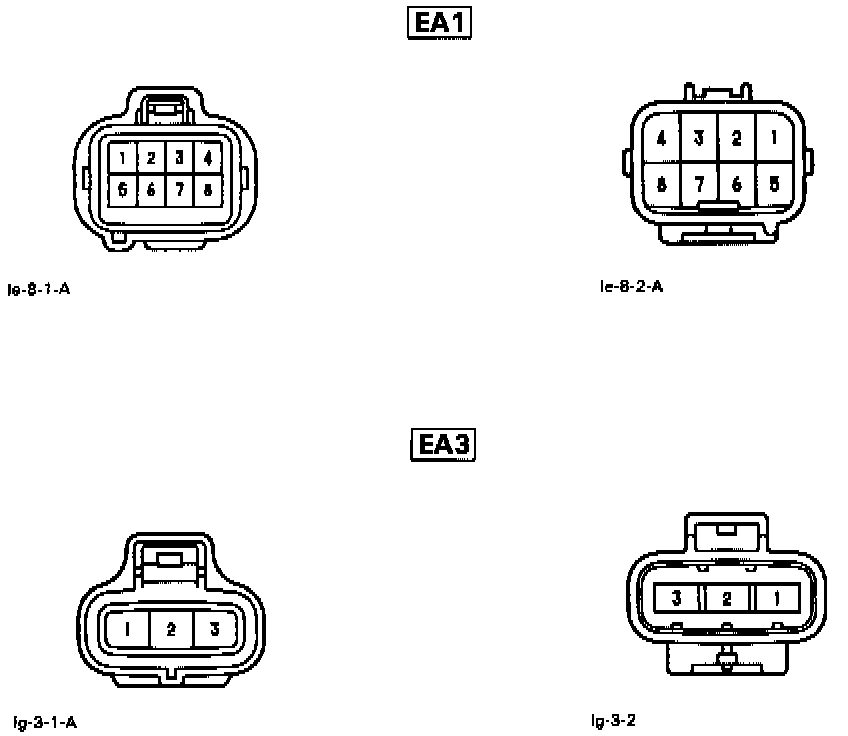

Connector Views - EA1, EA3:




CONNECTOR VIEWS - PART 2

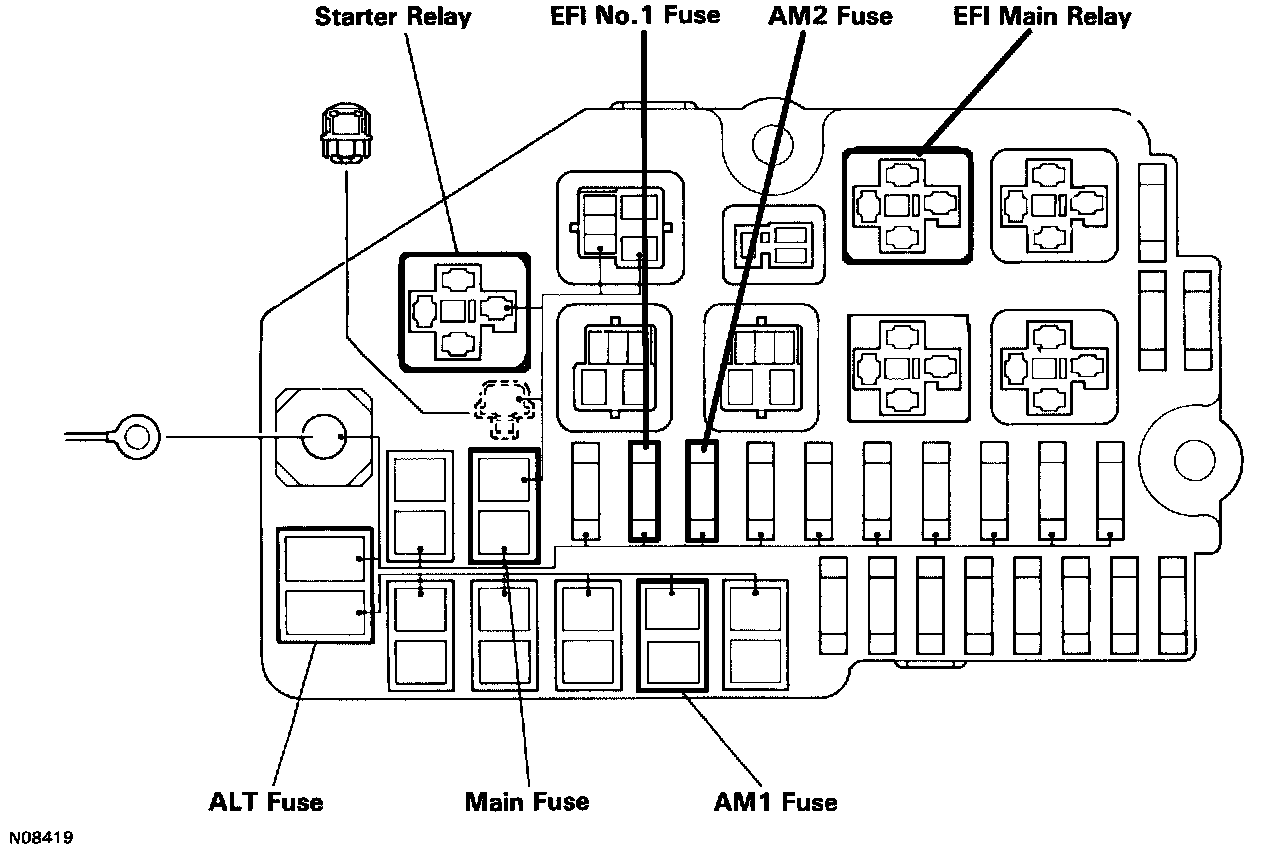

Layout Of Relay Block (R/B No.2):




LAYOUT OF FUSE AND RELAY BLOCK - R/B NO.2
