EGR Control Solenoid: Service and Repair

Vacuum Switching Valve (VSV) For EGR:

VSV Removal

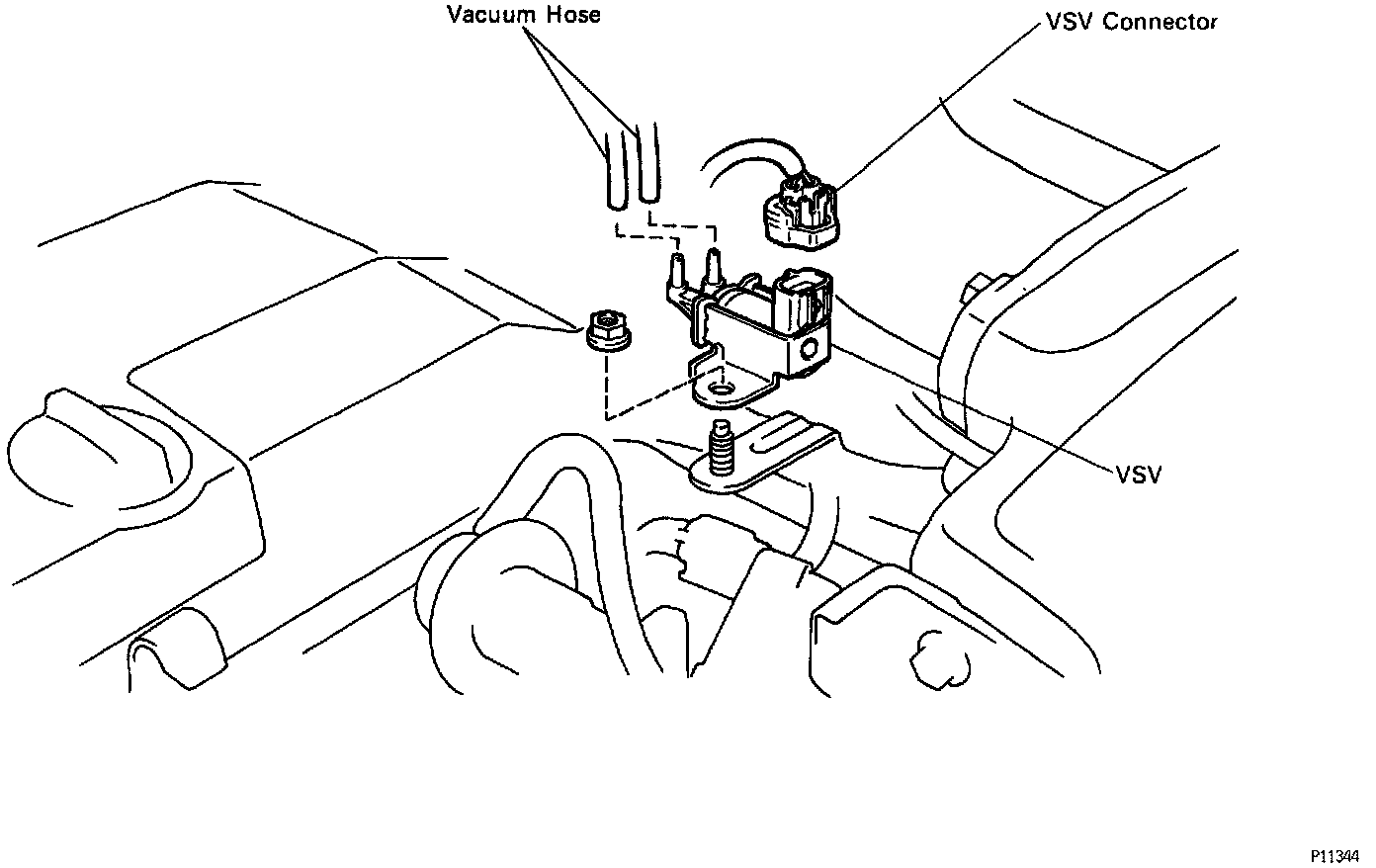

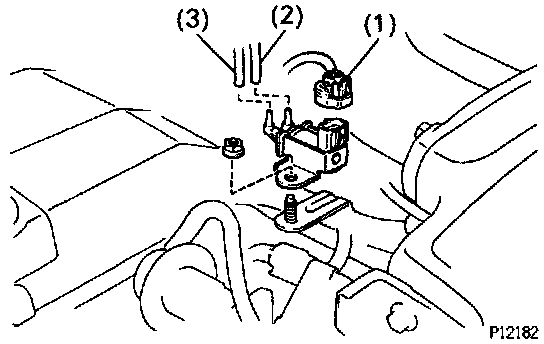

(a) Disconnect the following connector and hoses:



(1) Connector
(2) Hose (from throttle body) from port E of VSV
(3) Hose (from EGR valve and vacuum modulator) from port F of VSV
(b) Remove the bolt and VSV.

VSV Installation

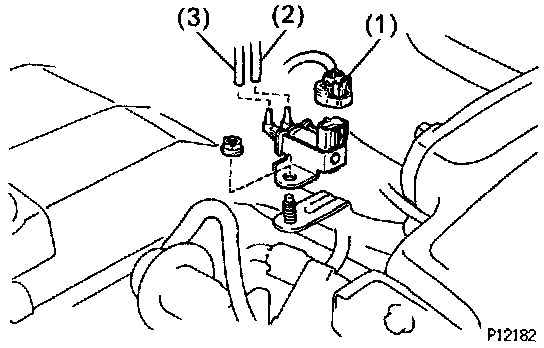

(a) Install the VSV with the bolt.
(b) Connect the following connector and hoses:



(1) Connector
(2) Hose (from throttle body) to port E of VSV
(3) Hose (from EGR valve and vacuum modulator) to port F of VSV
