Transmission Position Sensor/Switch: Testing and Inspection

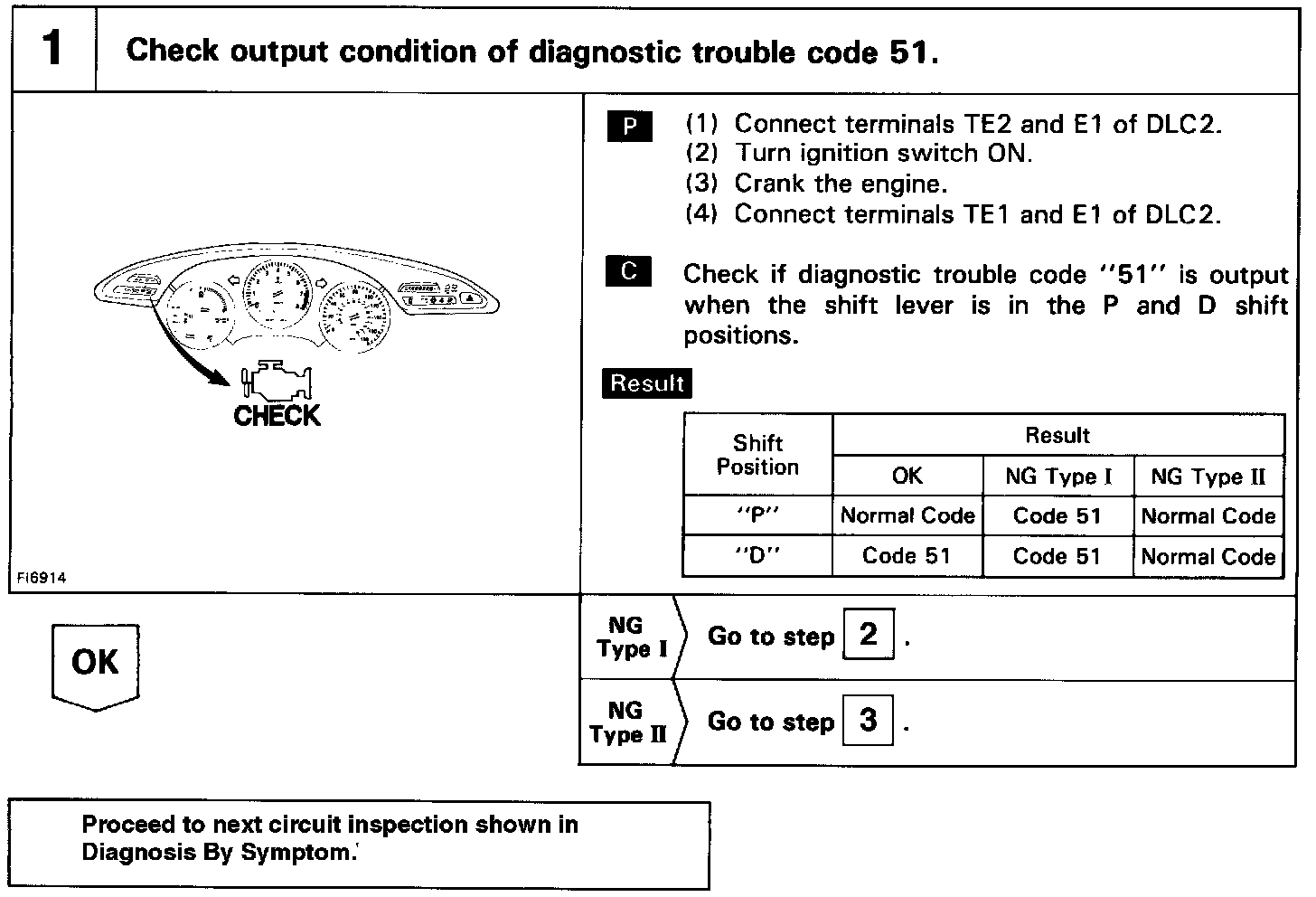

This diagnostic chart is based on the premise that the engine will crank under normal conditions. If the engine does not crank, proceed to "Diagnosis By Symptom" under Computers and Control Systems.

DLC2 Terminal ID:
