Component Tests and General Diagnostics

INSPECTION OF KNOCK SENSORS

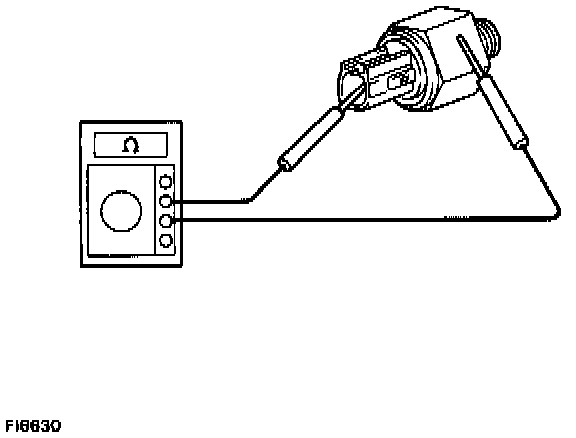

- Using an ohmmeter, check that there is no continuity between the terminal and body.

OK if: 1 Mega-Ohm or more

^ If there is continuity, replace the sensor.

NOTE: Refer to Service and Repair for removal and installation information.
