Engine Control Module

Electronic Control Module (ECM) Circuits, Schematic View

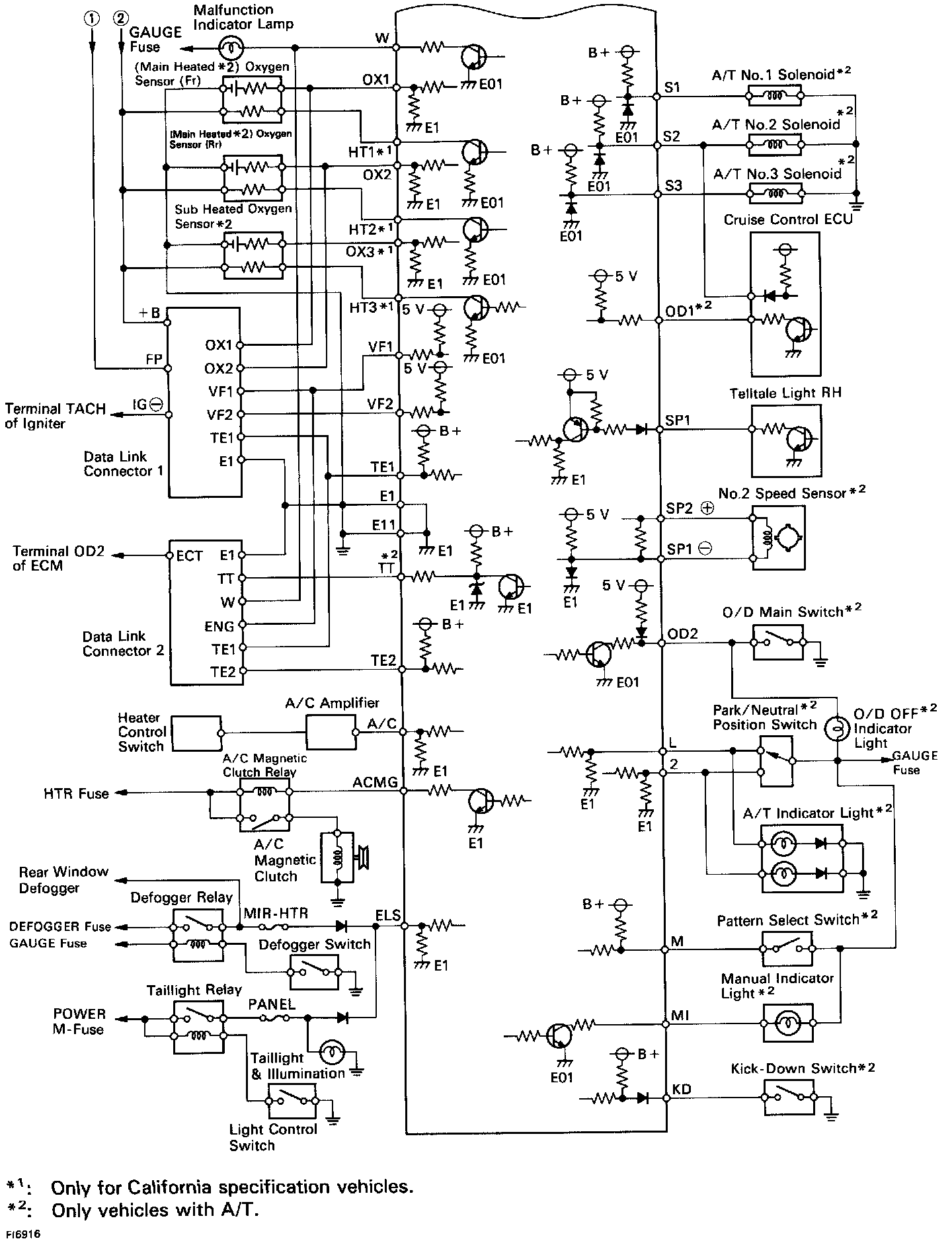

Part 1 Of 2:




Part 1

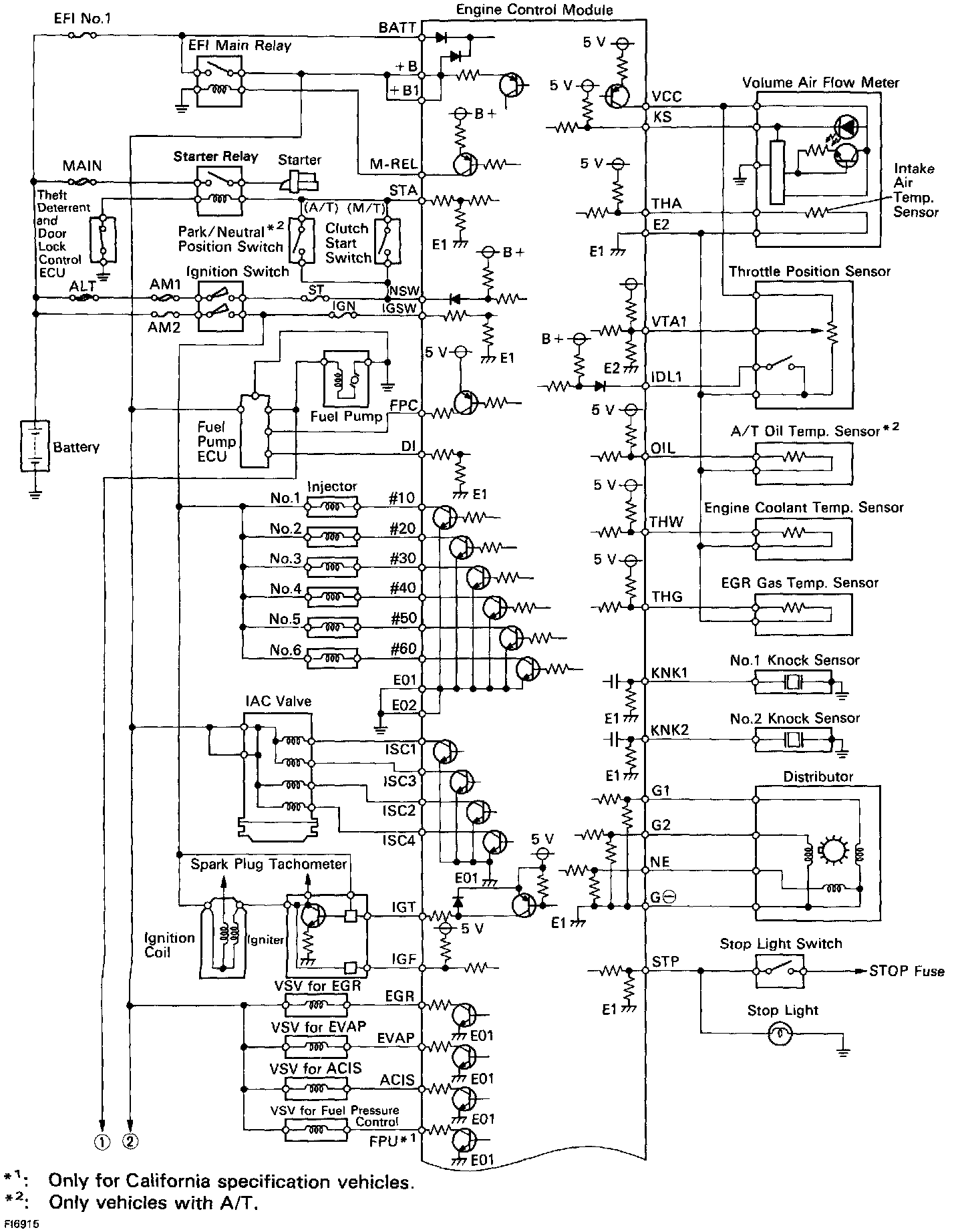

Part 2 Of 2:




Part 2
