Federal Models

DIAGNOSTIC PROCEDURE FOR DTC 21



1. ARE THERE ANY OTHER CODES, BESIDES CODE 21 OR 28, BEING OUTPUT?
^ If YES Go to relevant diagnostic trouble code chart.
^ If NO replace oxygen sensor.

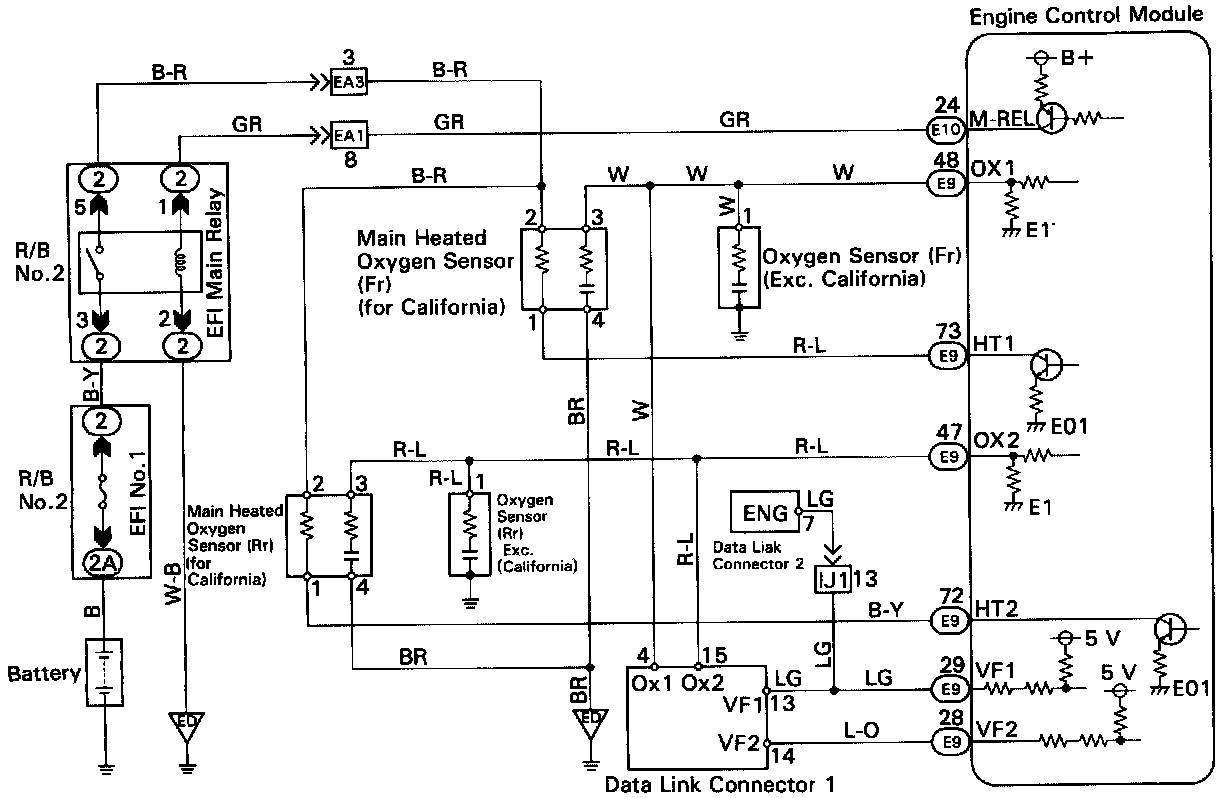

NOTE: If DTC 21 is output inspect / replace front oxygen Sensor.
If DTC 28 is output, inspect / replace rear oxygen sensor.
