Home
>>
Toyota
>>
1993
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

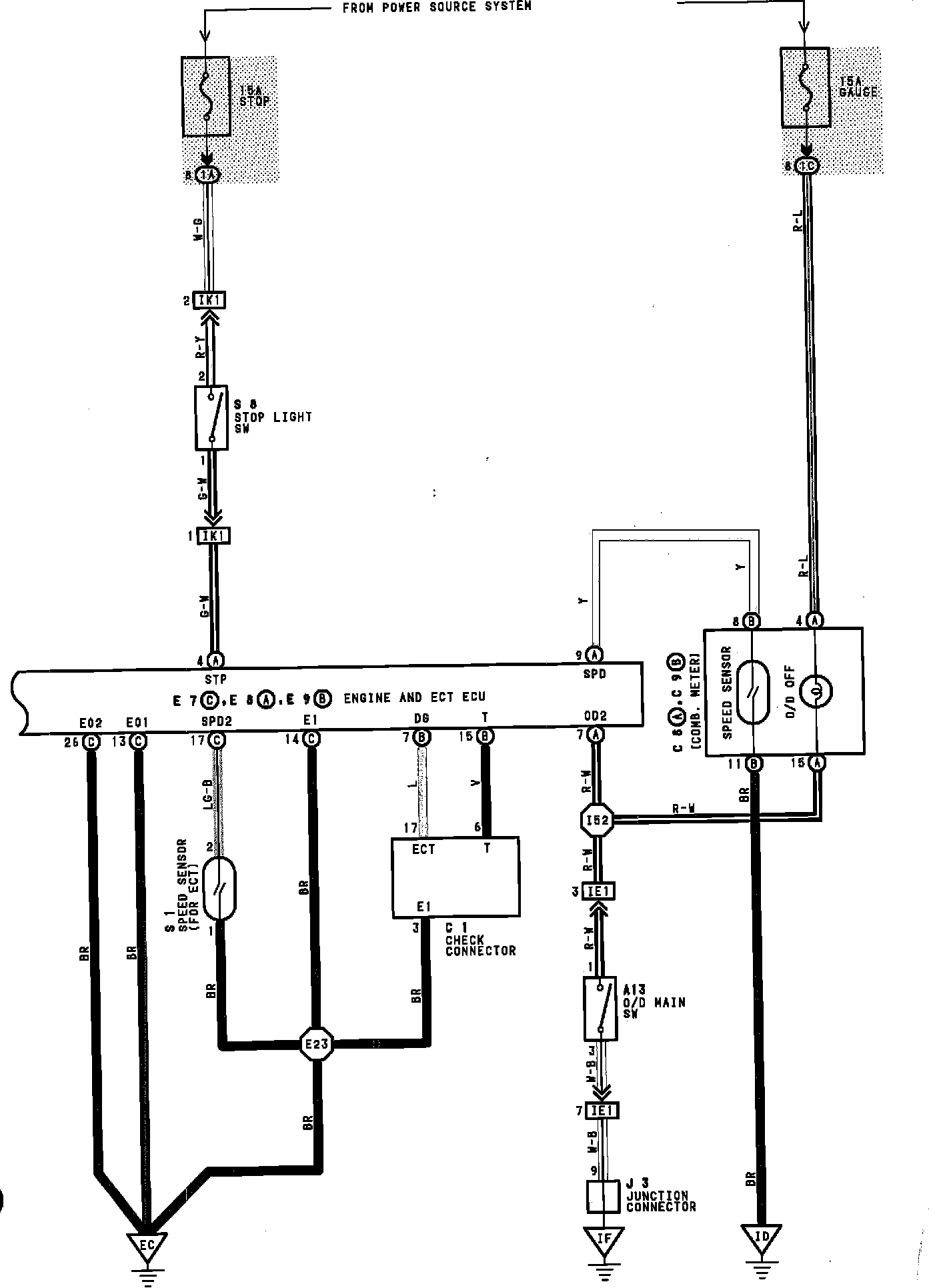

Electronic Controlled Transmission (ECT):
Electronic Controlled Transmission (ECT):

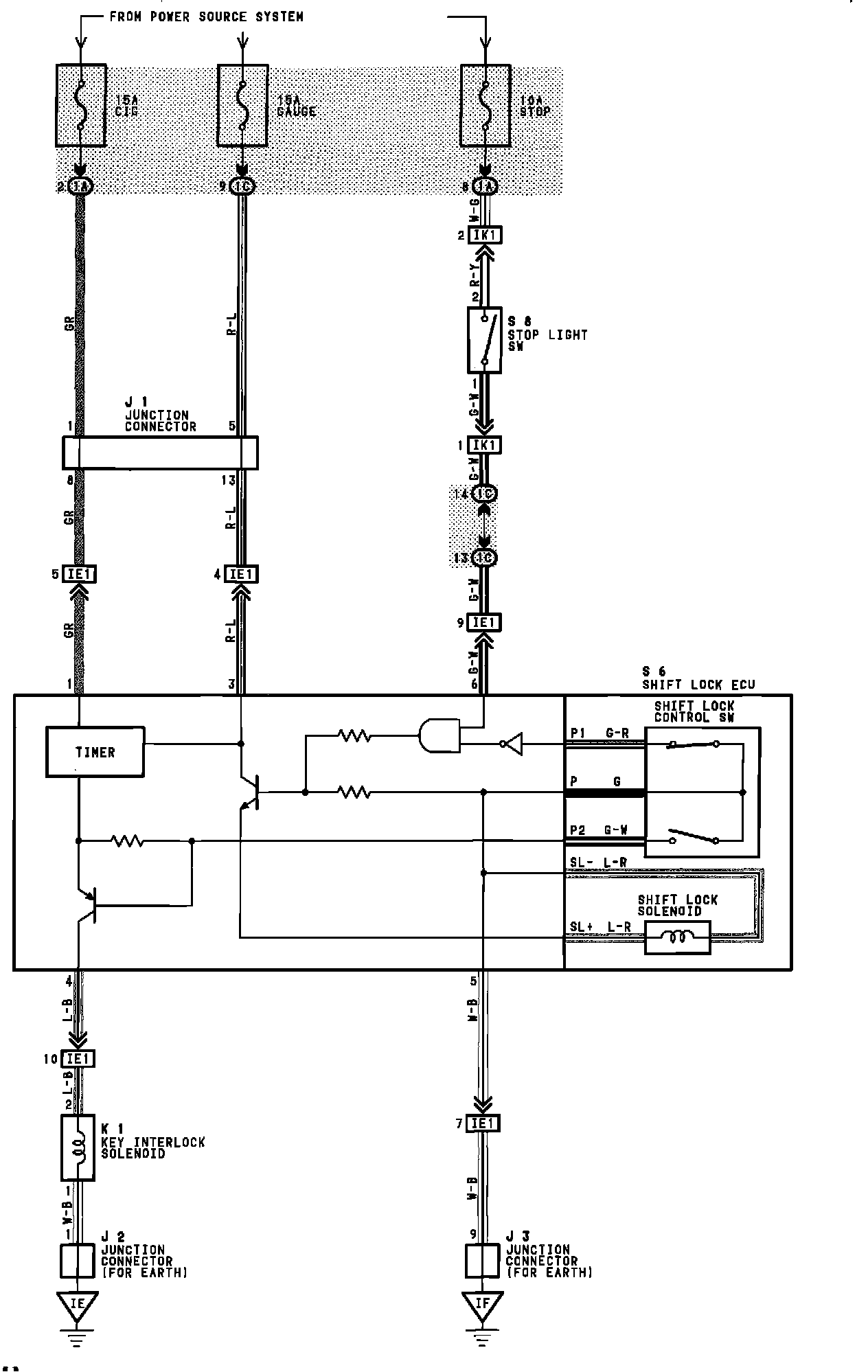

Shift Lock:
