Ignition Coil: Testing and Inspection

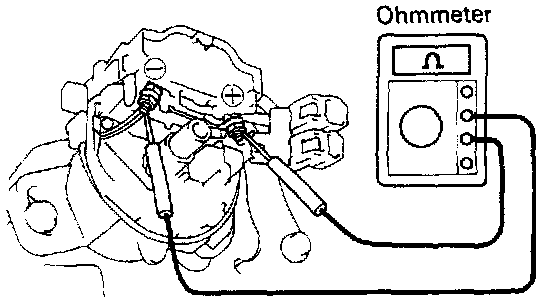

Checking Coil Primary Resistance:

Inspect Primary Coil Resistance
- Using an ohmmeter, measure the resistance between positive (+) and negative (-) terminals.

Primary coil resistance (Cold): 0.40 - 0.50 ohms

- If the resistance is not as specified, replace the ignition coil.

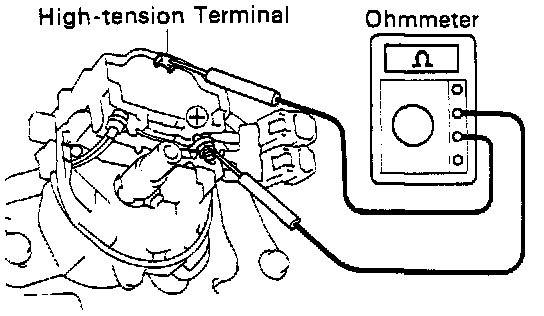

Checking Coil Secondary Resistance:

Inspect Secondary Coil Resistance
- Using an ohmmeter, measure the resistance between the positive (+) and high-tension terminals.

Secondary coil resistance (Cold): 10.0 - 14.0 k ohms

- If the resistance is not as specified, replace the ignition coil.
