Ignition Coil: Service and Repair

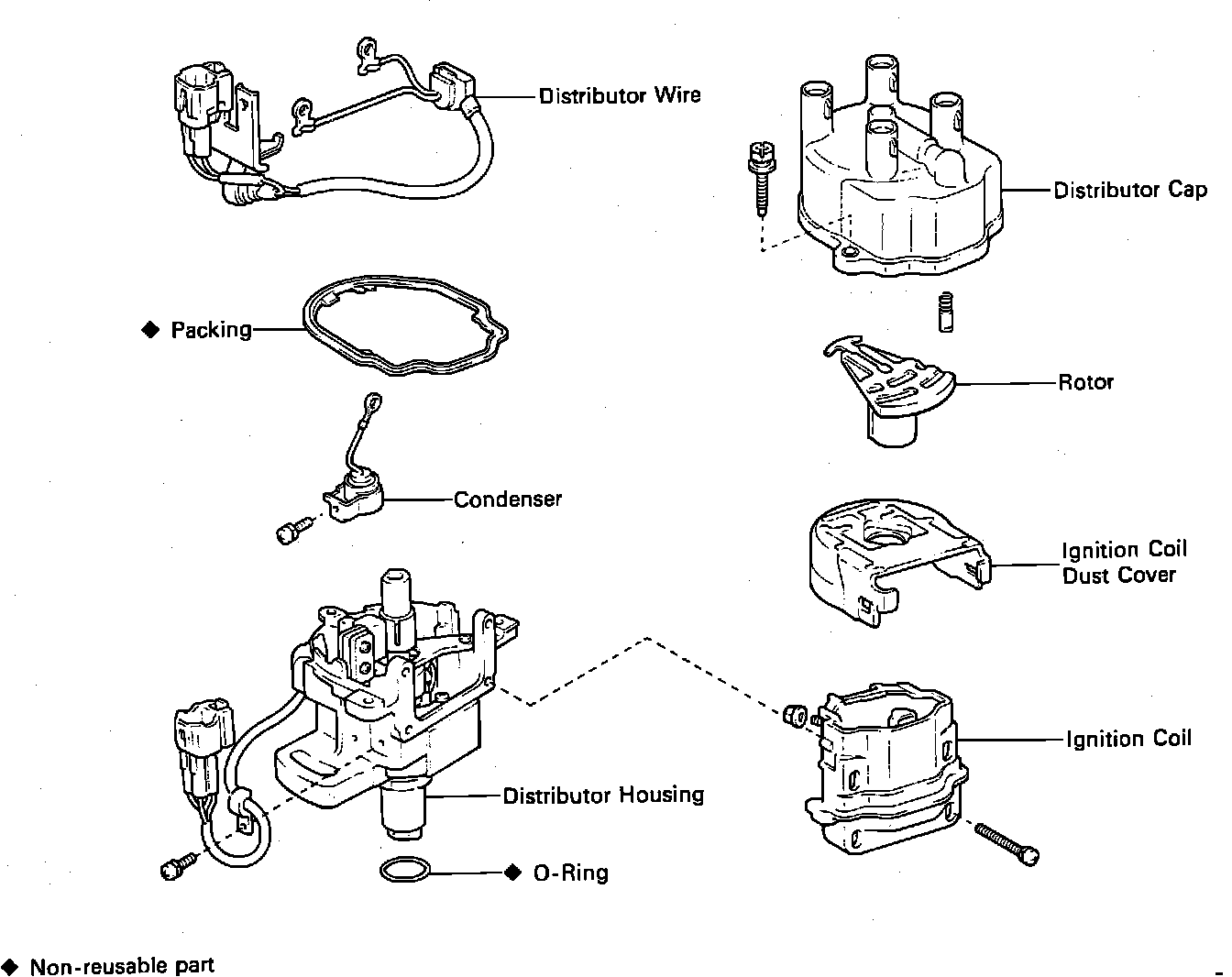

Distributor Assembly:

- Remove distributor cap and rotor.
- Remove ignition coil dust cover.
- Remove packing.

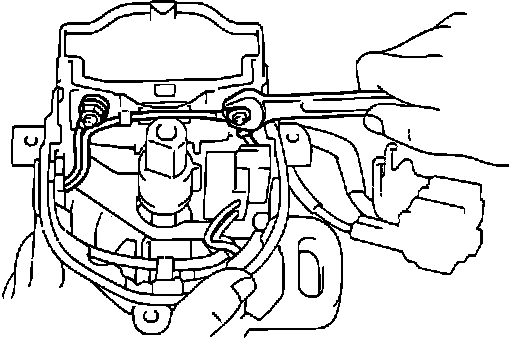

Ignition Coil Removal:

- Remove nuts and disconnect ignition coil wires.

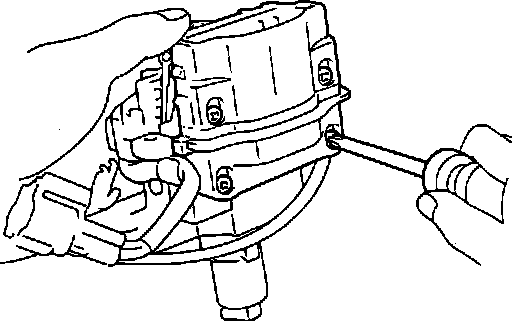

Ignition Coil Removal:

- Remove the four securing screws and remove ignition coil.
- Reverse procedure to install.
