Instrument Panel and Center Console
Instrument Panel and Center Console

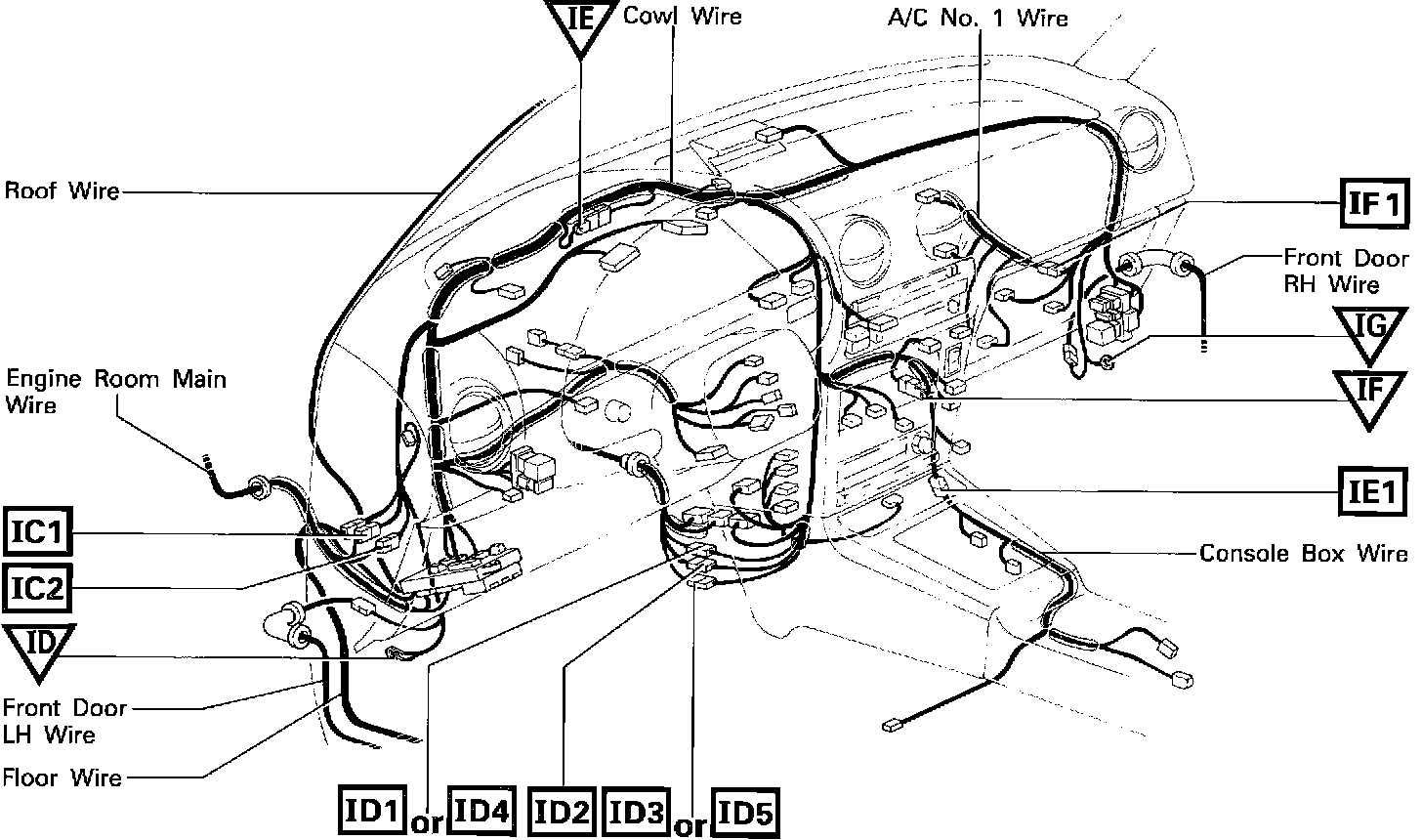

Harness To Harness Connector And Ground Point Locations:
CONNECTOR LOCATION

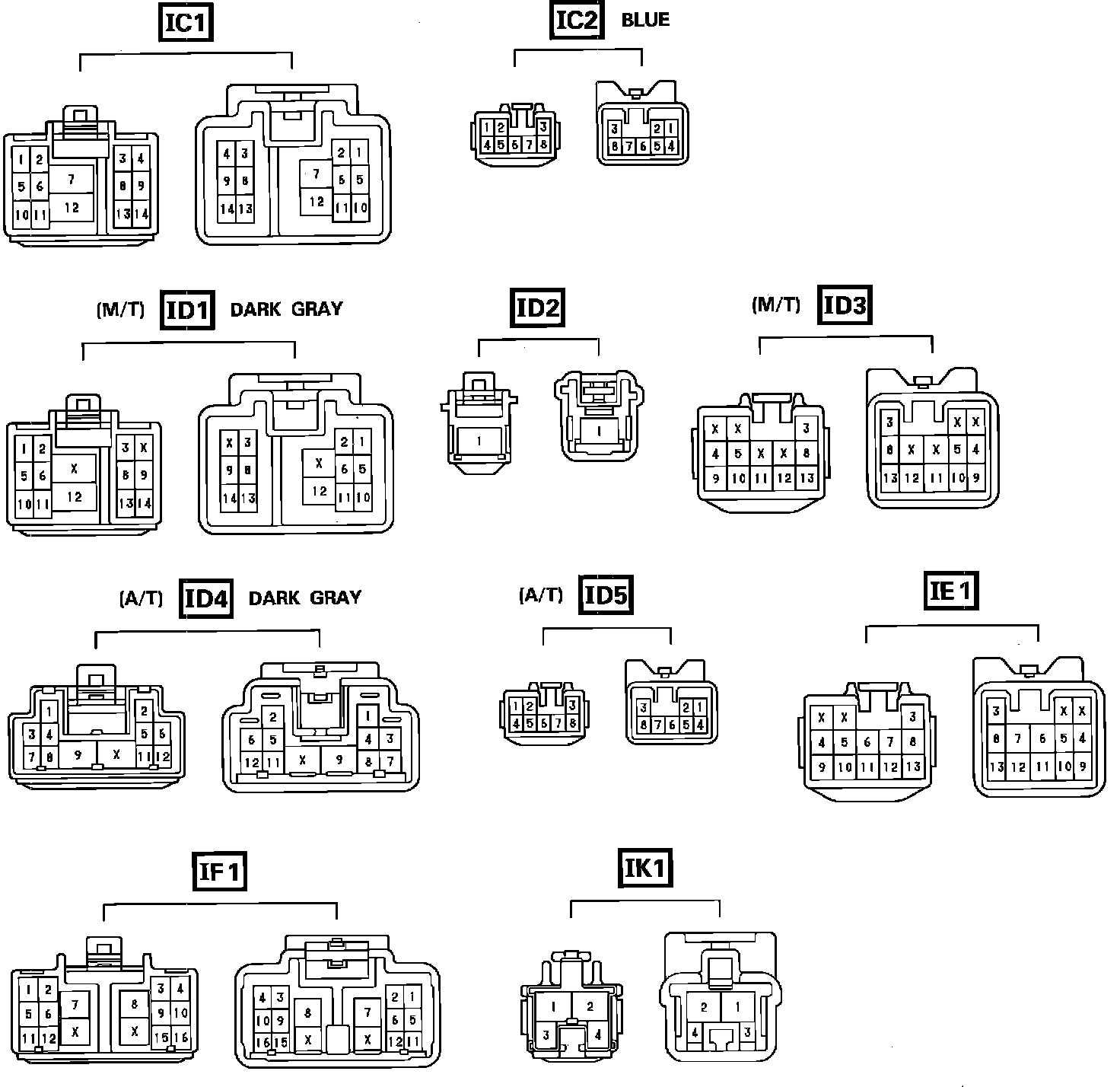

Connector Identification:
CONNECTOR IDENTIFICATION
