Body

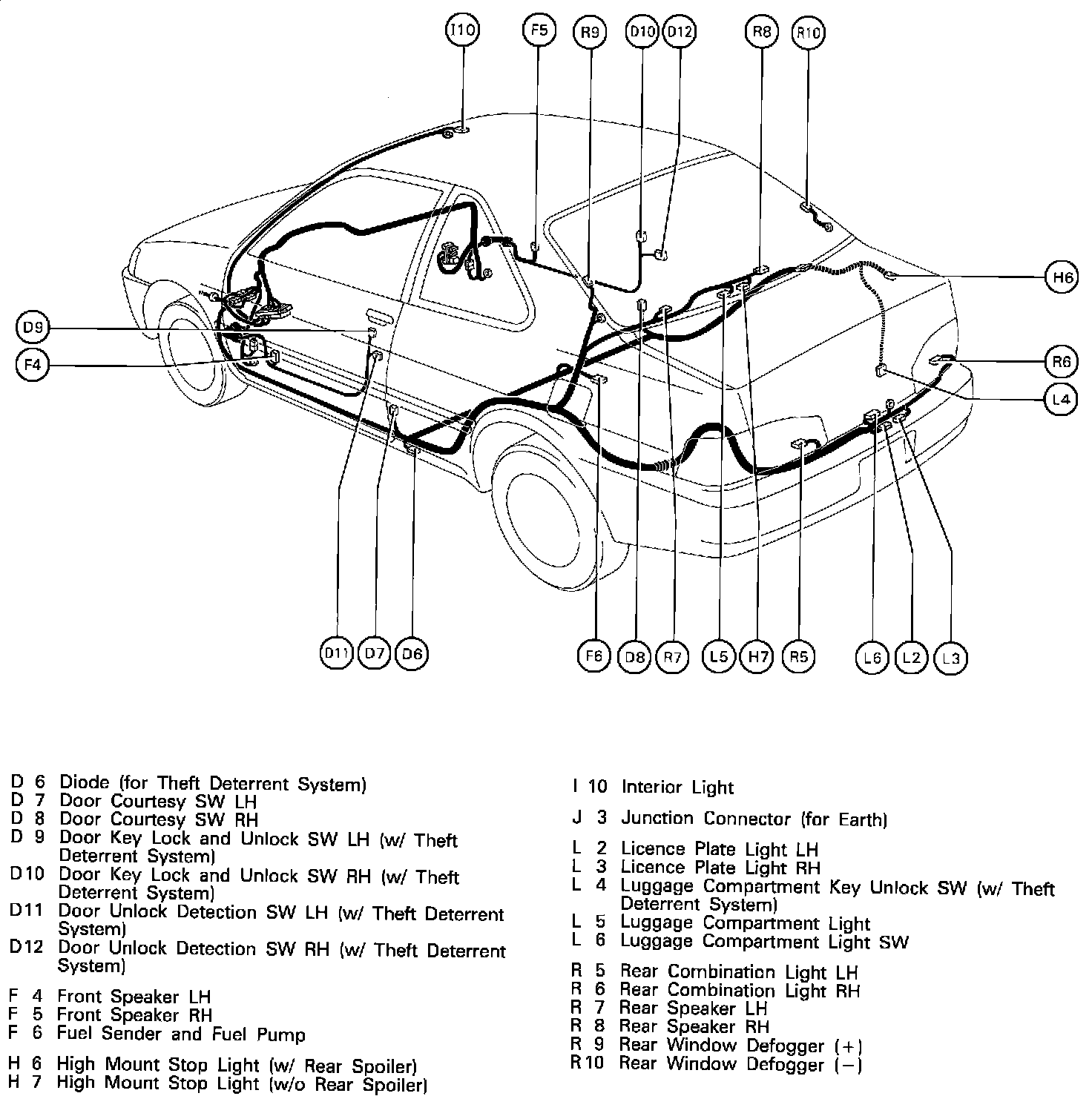

Body Component Locations:

D 6 Diode (for Theft Deterrent System)
D 7 Door Courtesy SW LH
D 8 Door Courtesy SW RH
D 9 Door Key Lock and Unlock SW LH (W/ Theft Deterrent
System)
D 10 Door Key Lock and Unlock SW RH (W/ Theft Deterrent
System)
D 11 Door Unlock Detection SW LH (w/ Theft Deterrent
System)
D 12 Door Unlock Detection SW RH (w/ Theft Deterrent
System)

F 4 Front Speaker LH
F 5 Front Speaker RH
F 6 Fuel Sender and Fuel Pump

H 6 High Mount Stop Light (w/ Rear Spoiler)
H 7 High Mount Stop Light (w/o Rear Spoiler)

I 10 Interior Light

J 3 Junction Connector (for Earth)

L 2 Licence Plate Light LH
L 3 Licence Plate Light RH
L 4 Luggage Compartment Key Unlock SW (W/ Theft
Deterrent System)
L 5 Luggage Compartment Light
L 6 Luggage Compartment Light SW

R 5 Rear Combination Light LH
R 6 Rear Combination Light RH
R 7 Rear Speaker LH
R 8 Rear Speaker RH
R 9 Rear Window Defogger
R 10 Rear Window Defogger
