Compressor Clutch: Testing and Inspection

(Magnetic Clutch)

INSPECT MAGNETIC CLUTCH FOR FOLLOWING
(a) Inspect the pressure plate and the rotor for signs of oil.
(b) Check the clutch bearings for noise and grease leakage.

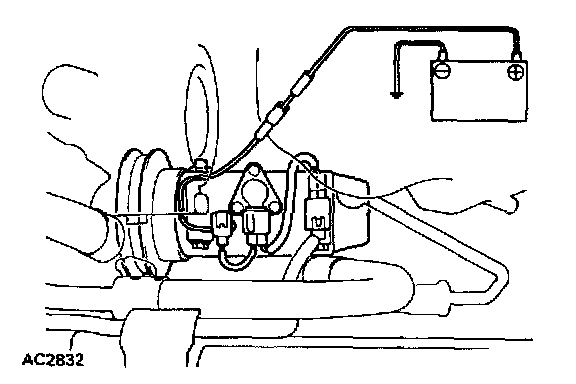

(c) Connect the positive (+) lead from the battery to the terminal on the magnetic clutch connector and the negative (-) lead to the body ground.
(d) Check that the magnetic clutch is energized.
If the magnetic clutch is not energized, replace the magnetic clutch.
