Toyota
>>
1993
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
System Diagram
System Diagram

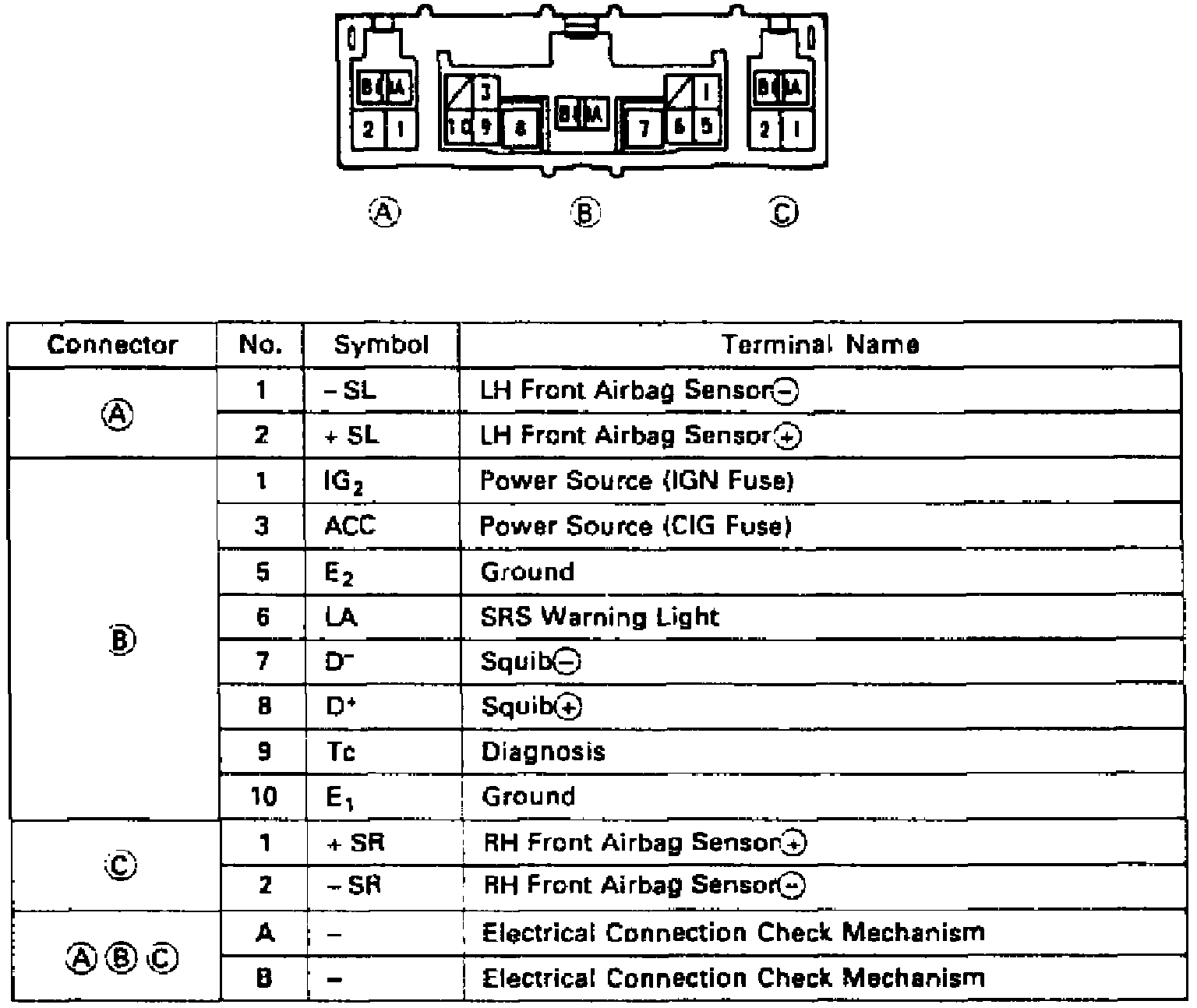

Fig. 29 Center Airbag Sensor Assembly Connector. Tercel & Paseo:
