Description of On-Board Diagnostics
DIAGNOSIS SYSTEMDESCRIPTION
If a malfunction occurs, the system will identify the problem and the ECU will store the diagnostic trouble codes for the trouble items.
At the same time, the system informs the driver of a malfunction via the "ABS" warning light in the combination meter.

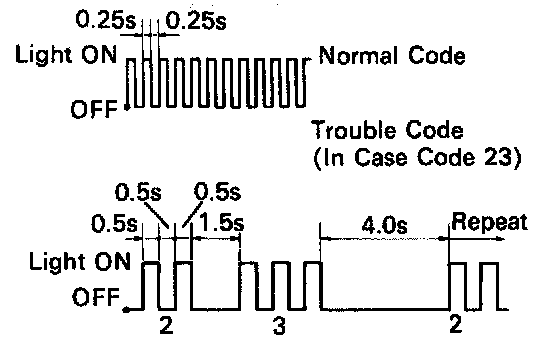

By turning on the ignition switch. disconnecting the service connector and use SST to connect Tc and E1 of the data link connector 1, the trouble can be identified by the number of blinks (diagnostic trouble code) of the warning light.
In the event of two codes, that having the smallest numbered code will be identified first.
HINT: The warning light does not show the diagnostic trouble codes while the vehicle is running.
