Basic Subassembly Separation

1. REMOVE RELEASE FORK AND BEARING

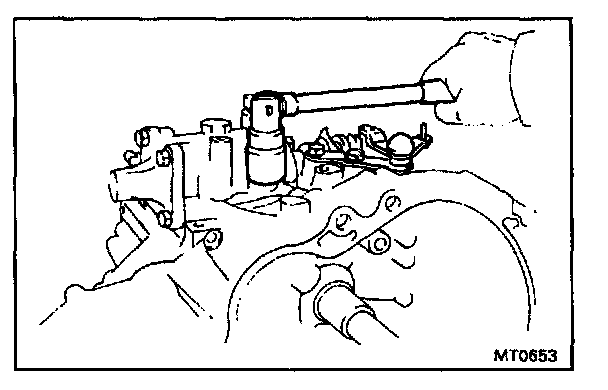

2. REMOVE BACK-UP LIGHT SWITCH
Remove the back-up light switch.

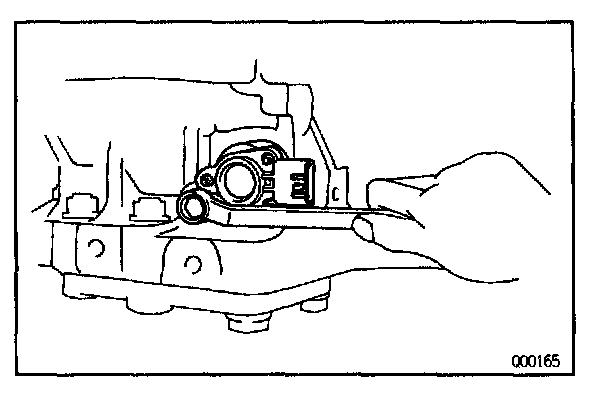

3. REMOVE VEHICLE SPEED PULSE GENERATOR
a. Remove the set bolt and lock plate.
b. Remove the vehicle speed pulse generator.

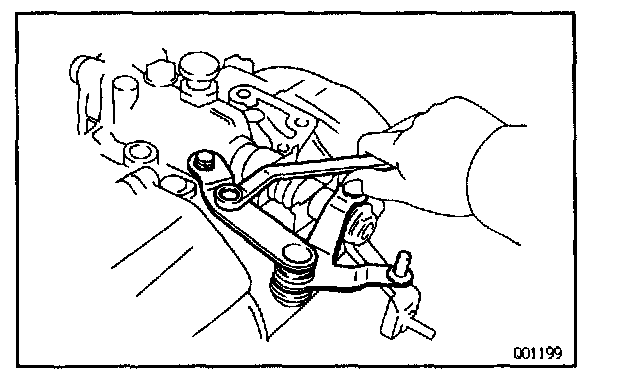

4. REMOVE SELECTING BELLCRANK ASSEMBLY

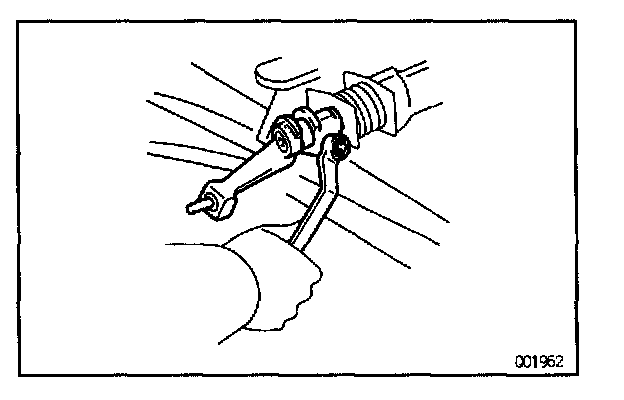

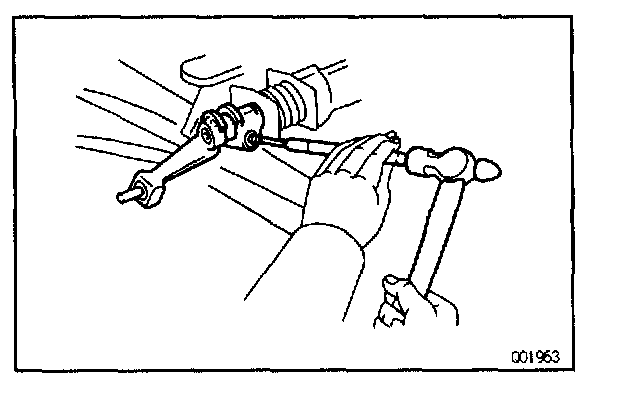

5. REMOVE SHIFT LEVER

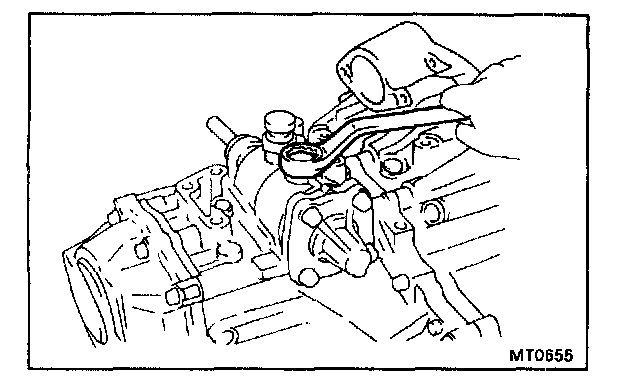

a. Remove the shift lever set nut.




b. Using a pin punch and hammer, tap out the lock pin.

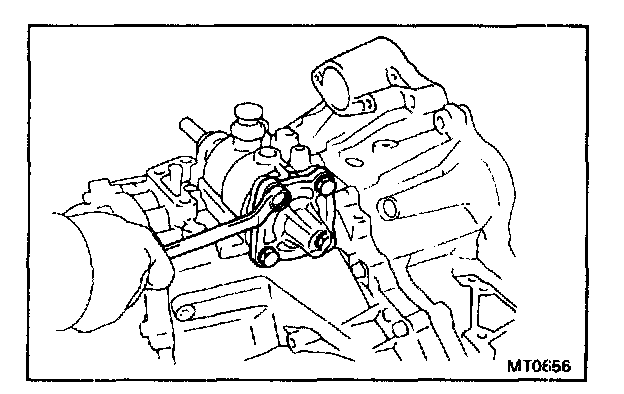

6. REMOVE LOCK BOLT

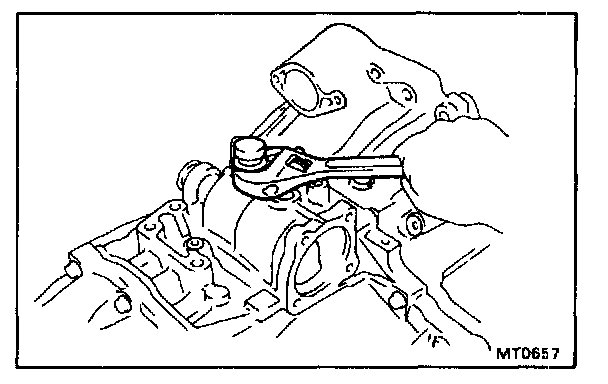

7. REMOVE CONTROL SHAFT COVER
Remove the four bolts holding the control shaft cover.

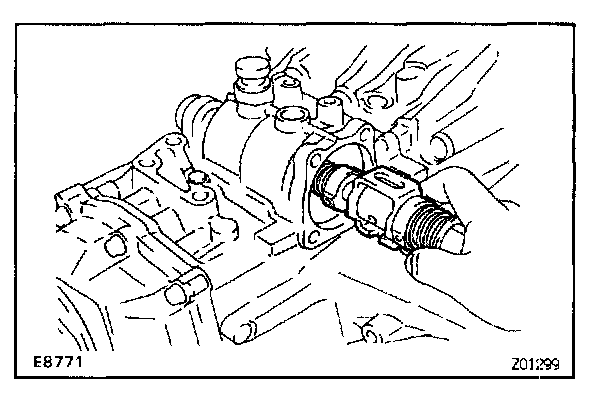

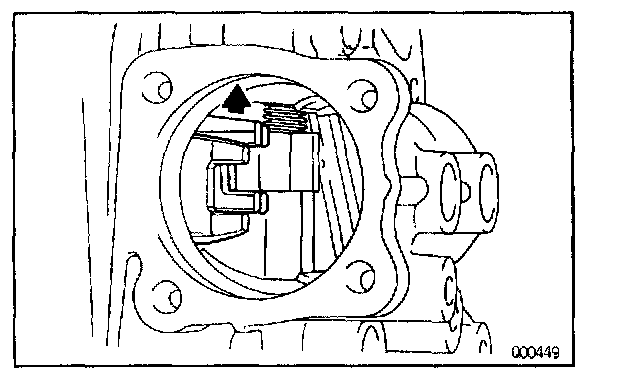

8. REMOVE SHIFT AND SELECT LEVER SHAFT ASSEMBLY




9. REMOVE TRANSMISSION CASE COVER
Remove the ten bolts and case cover.




10. REMOVE BREATHER PLUG WITH GASKET

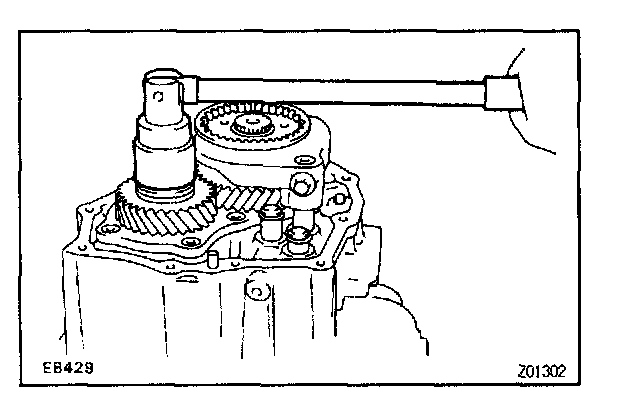

11. REMOVE LOCK NUT
a. Unstake the lock nut.
b. Engage the gear double meshing.




c. Remove the lock nut.
d. Disengage the gear double meshing.




12. REMOVE NO.3 HUB SLEEVE AND NO.3 SHIFT FORK
a. Remove the No.3 shift fork set bolt.

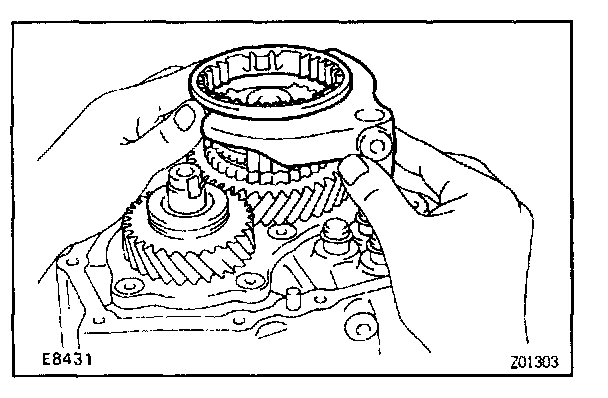

b. Remove the No.3 hub sleeve and No.3 shift fork.

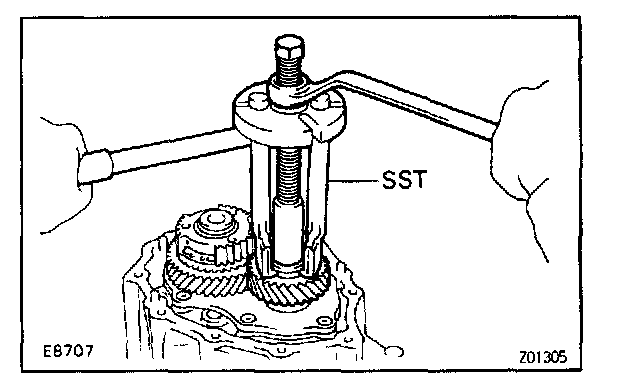

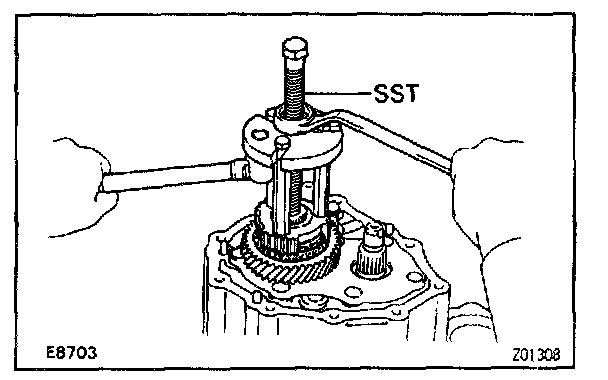

13. REMOVE FIFTH DRIVEN GEAR
Using SST, remove the 5th driven gear.
SST 09310-17010 (09310-07010, 09310-07020, 09310-07040, 09310-07050)

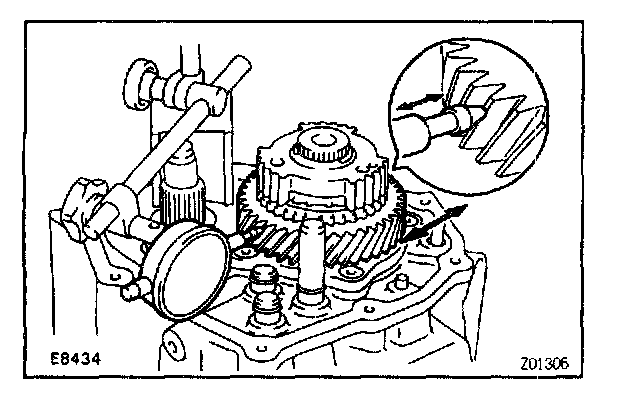

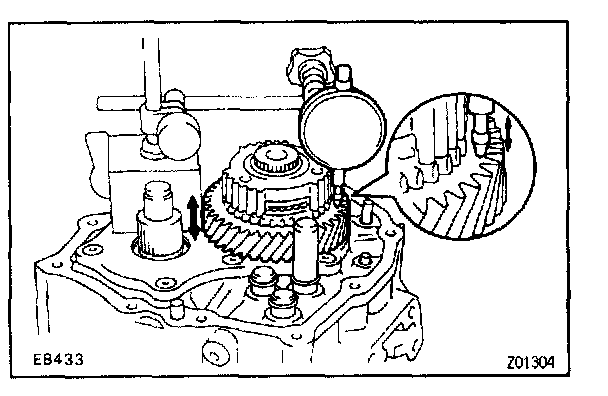

14. MEASURE FIFTH GEAR THRUST CLEARANCE AND OIL CLEARANCE
a. Using a dial indicator, measure the thrust clearance.

Standard clearance: 0.10 - 0.57 mm (0.0039 - 0.0224 in.)
Maximum clearance: 0.65 mm (0.0256 in.)




b. Using a dial indicator, measure the oil clearance.

Standard clearance: 0.009 - 0.050 mm (0.0004 - 0.0020 in.)
Maximum clearance: 0.070 mm (0.0028 in.)




15. REMOVE NO.3 CLUTCH HUB AND FIFTH GEAR

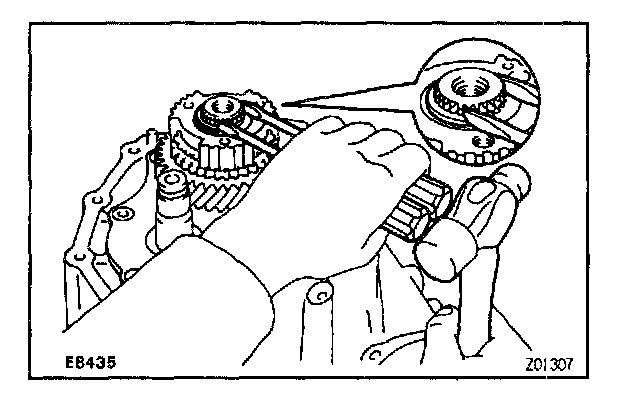

a. Using two screwdrivers and a hammer, tap out the snap ring.




b. Using SST, remove the No.3 clutch hub with synchronizer ring and 5th gear.
SST 09310-17010 (09310-07010, 09310-07020, 09310-07030, 09310-07050)

16. REMOVE NEEDLE ROLLER BEARING AND SPACER

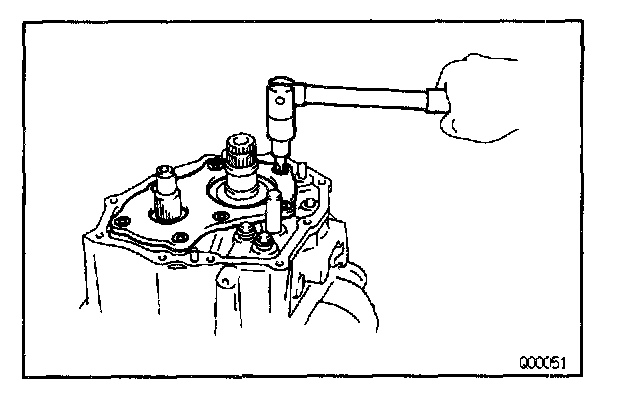

17. REMOVE REAR BEARING RETAINER
a. Using a torx socket wrench, remove the seven torx screws and bearing retainer.
Torx wrench T45 09042-00050
b. Remove the adjust shim.

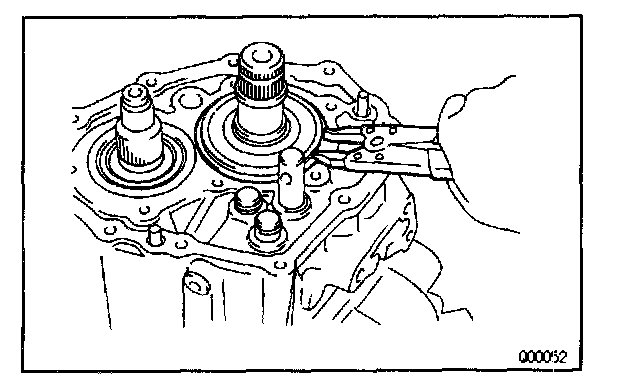

18. REMOVE SNAP RING
a. Using a snap ring expander, remove the snap ring.




b. Using two screwdrivers and a hammer, remove the three snap rings.

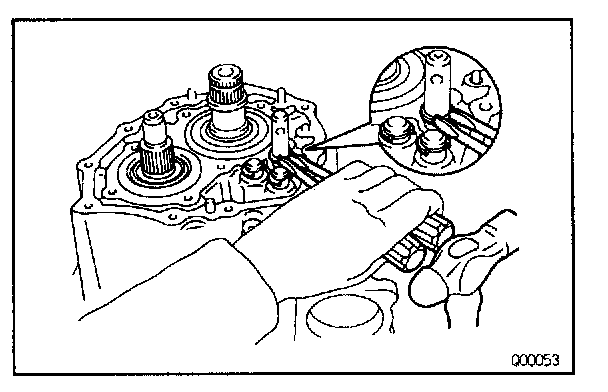

19. REMOVE PLUG, SEAT, SPRING AND LOCKING BALL

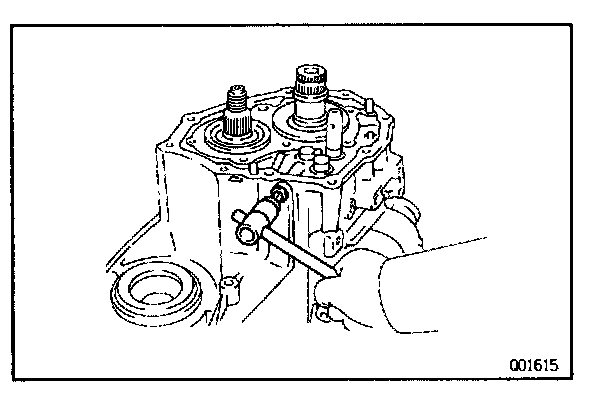

a. Using a hexagon wrench (6 mm), remove the plug.
b. Using a magnetic finger, remove the seal, spring and locking ball.

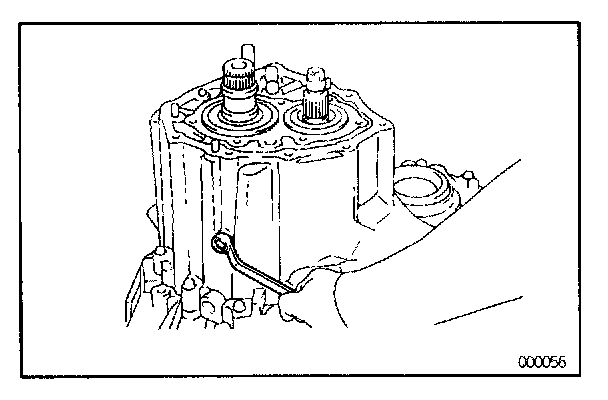

20. REMOVE REVERSE IDLER GEAR SHAFT RETAINING BOLT

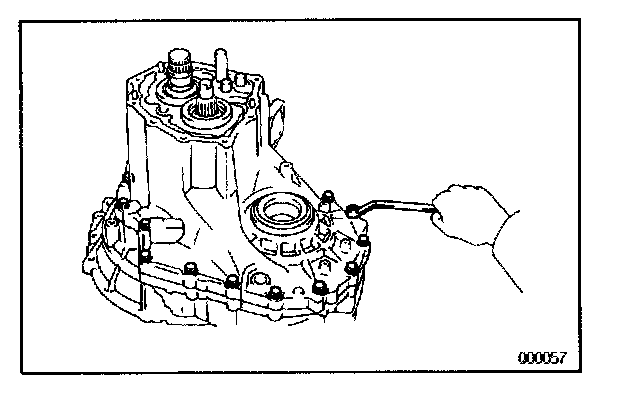

21. REMOVE TRANSMISSION CASE

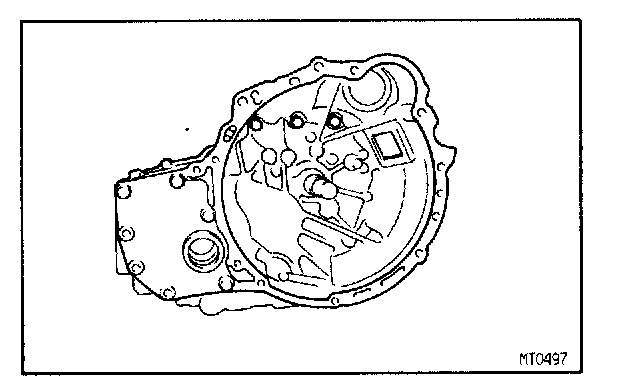

a. Remove the three bolts from transaxle case side.




b. Remove the fourteen bolts from the transmission case side and tap off the case with a plastic hammer.

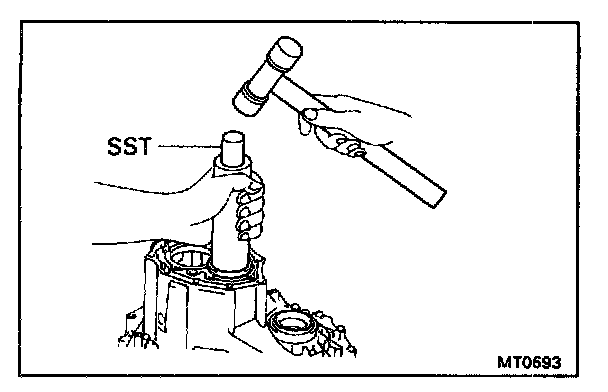

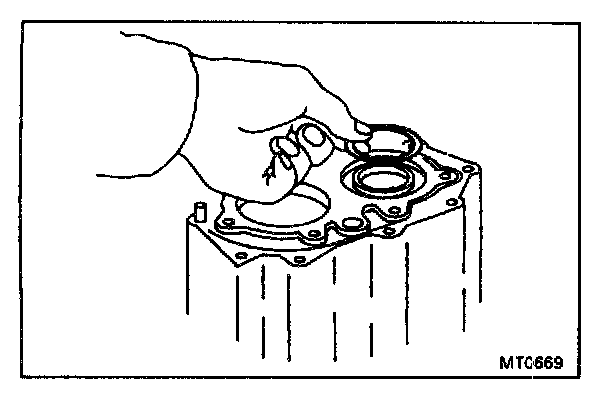

22. REMOVE OUTPUT SHAFT REAR TAPERED ROLLER BEARING OUTER RACE
a. Remove the shim.




b. Using SST and a hammer remove the output shaft rear tapered roller bearing outer race.
SST 09316-60010 (09316-00010)

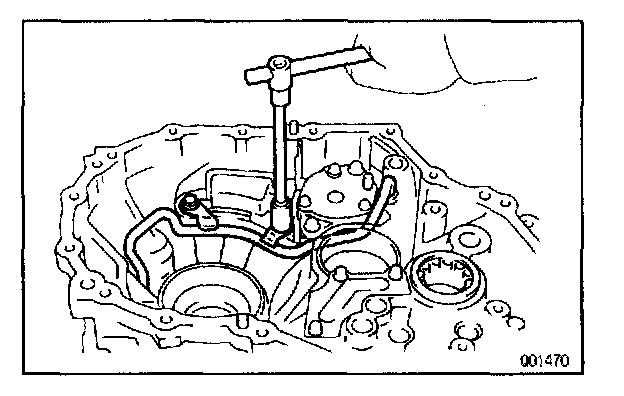

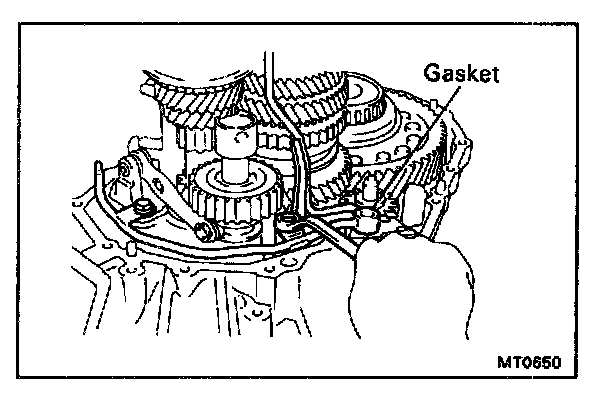

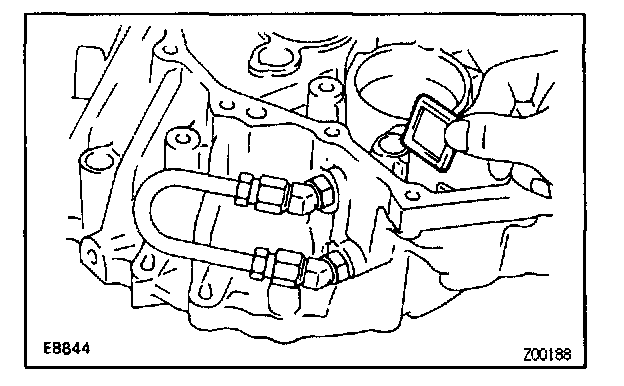

23. REMOVE NO.2 OIL PIPE
a. Remove the gasket.
b. Remove the two bolts and oil pipe.

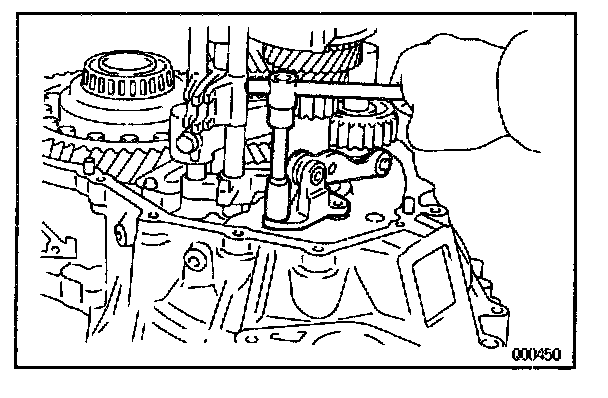

24. REMOVE REVERSE SHIFT ARM BRACKET
Remove the bolt and pull off the bracket.




25. REMOVE REVERSE IDLER GEAR AND SHAFT
Pull out the shaft, remove the reverse idler gear.

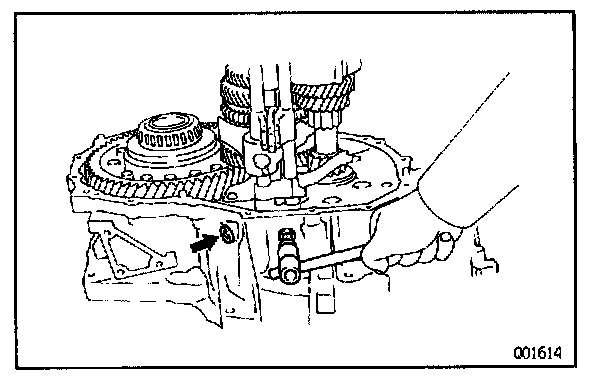

26. REMOVE STRAIGHT SCREW PLUGS, LOCKING BALLS AND SPRINGS
a. Using a hexagon wrench (6 mm), remove the two plugs.
b. Using a magnetic finger, remove the two spring seats, springs and balls.

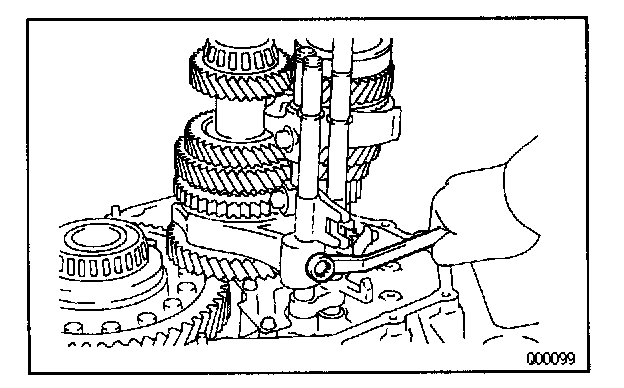

27. REMOVE THREE SET BOLTS




28. REMOVE NO.1 SHIFT FORK SHAFT
Pull up No.3 shift fork shaft, remove the No.1 shift fork shaft.

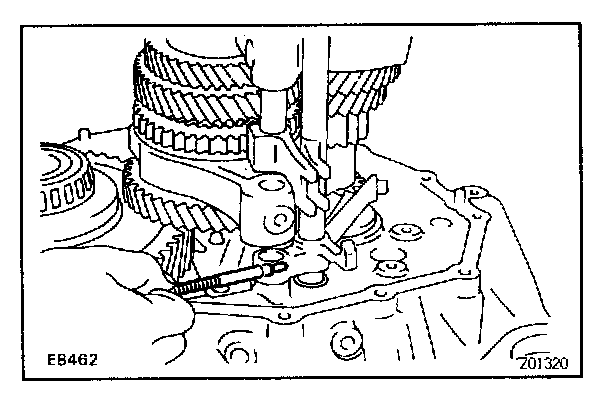

29. REMOVE INTERLOCK ROLLER
Using a magnetic finger, remove the interlock roller from the reverse shift fork.




30. REMOVE NO.2 SHIFT FORK SHAFT, SHIFT HEAD AND NO.1 SHIFT FORK
a. Pull out the No.2 shift fork shaft.
b. Remove the shift head and No.1 shift fork.

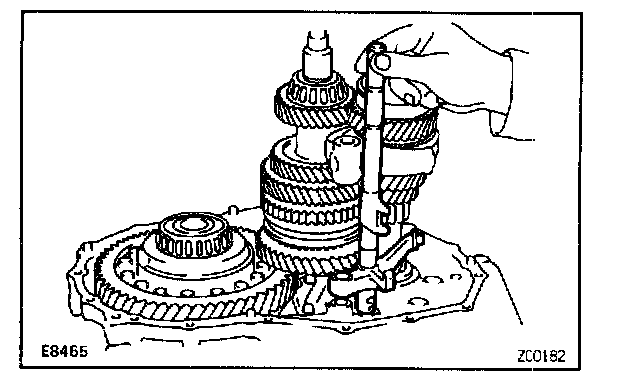

31. REMOVE NO.3 SHIFT FORK SHAFT WITH REVERSE SHIFT FORK AND NO.2 SHIFT FORK
a. Pull out the No.3 shift fork shaft with reverse shift fork.
b. Remove the No.2 shift fork.

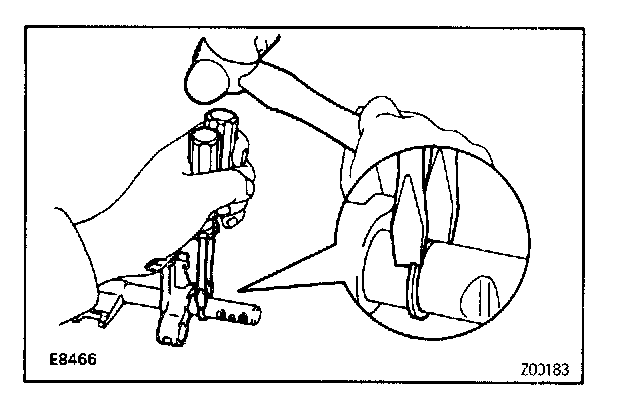

32. REMOVE SNAP RINGS
a. Using two screwdrivers and a hammer, remove the snap ring and reverse shift fork from the No.3 shift fork shaft.
b. Using two screwdrivers and a hammer, remove the snap rings from the No.1, No.2 and No.3 shift fork shafts.

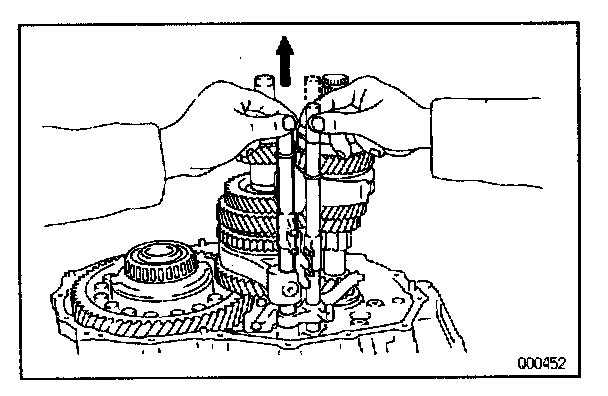

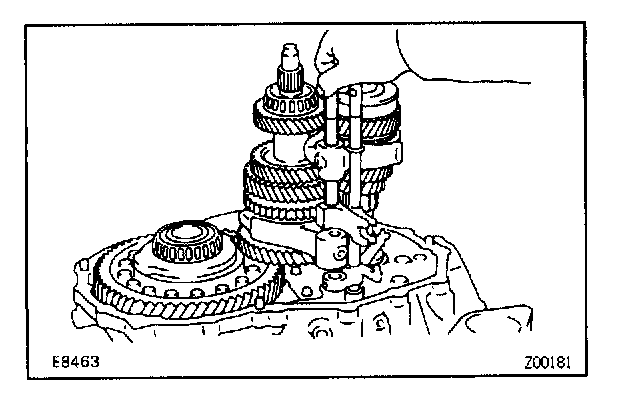

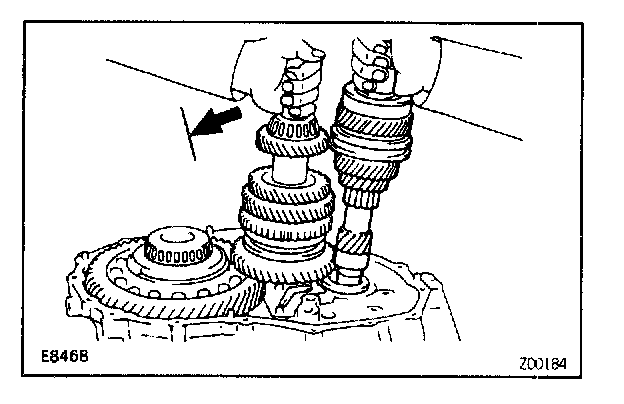

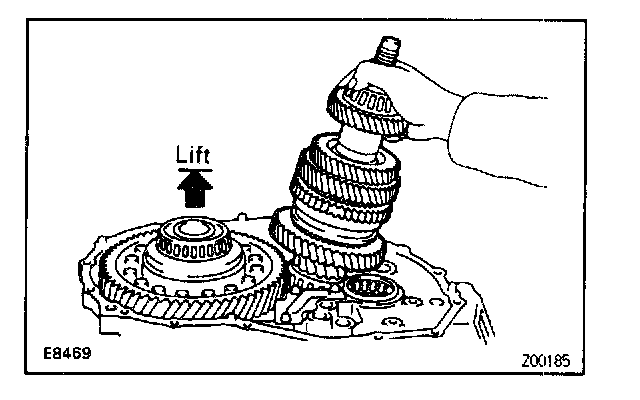

33. REMOVE INPUT AND OUTPUT SHAFT ASSEMBLY

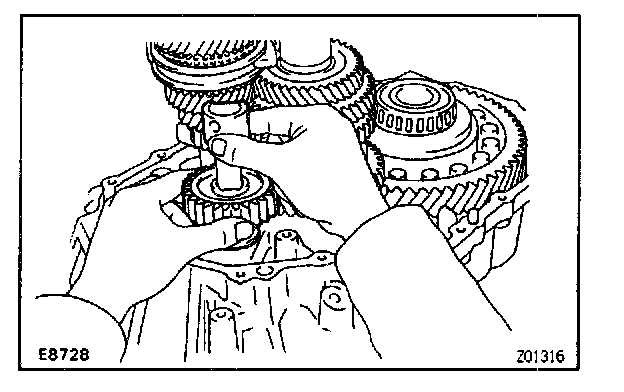

a. Leaning the output shaft to the differential side, remove the input shaft assembly.




b. Lift up the differential case assembly, remove the output shaft.

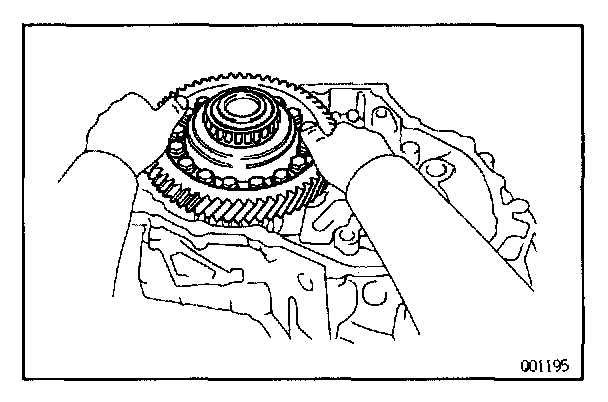

34. REMOVE DIFFERENTIAL ASSEMBLY

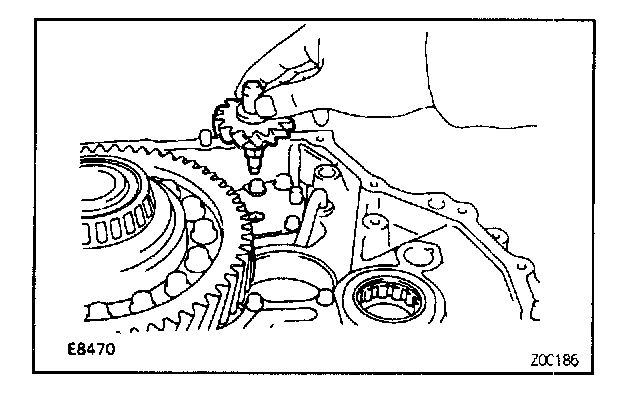

a. Remove the oil pump drive gear.




b. Remove the differential case assembly.




35. REMOVE MAGNET FROM TRANSAXLE CASE

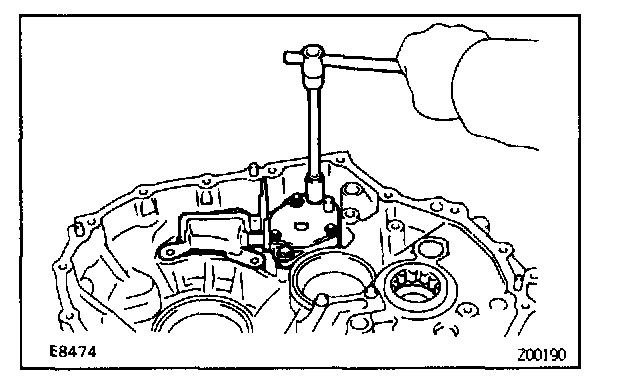

36. REMOVE OIL PUMP ASSEMBLY
a. Remove the two bolts and oil pipe.




b. Remove the two bolts and oil pump.

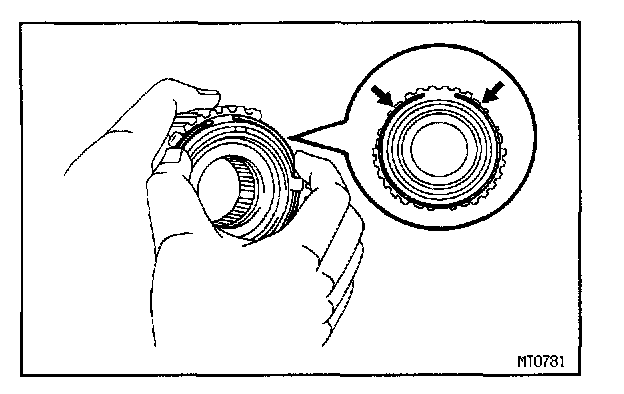

37. REMOVE NO.5 SYNCHRONIZER RING WITH KEY SPRING FROM NO.3 CLUTCH HUB
a. Remove the No.5 synchronizer ring with key spring from No.3 clutch hub.

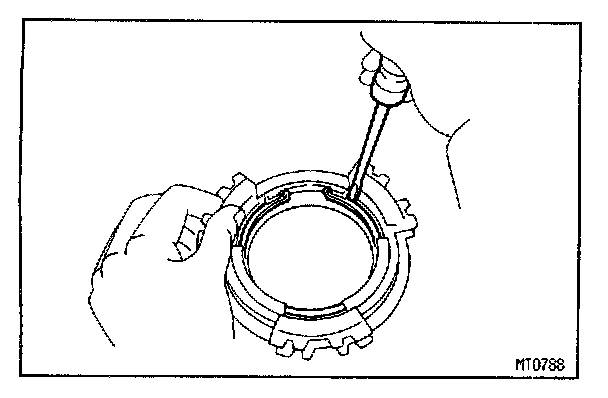

b. Using a screwdriver, remove the snap ring.

HINT: Wrap vinyl tape on the screwdriver to prevent damaging the synchronizer ring.

c. Remove the synchronizer rings.
