Oxygen Sensor: Testing and Inspection

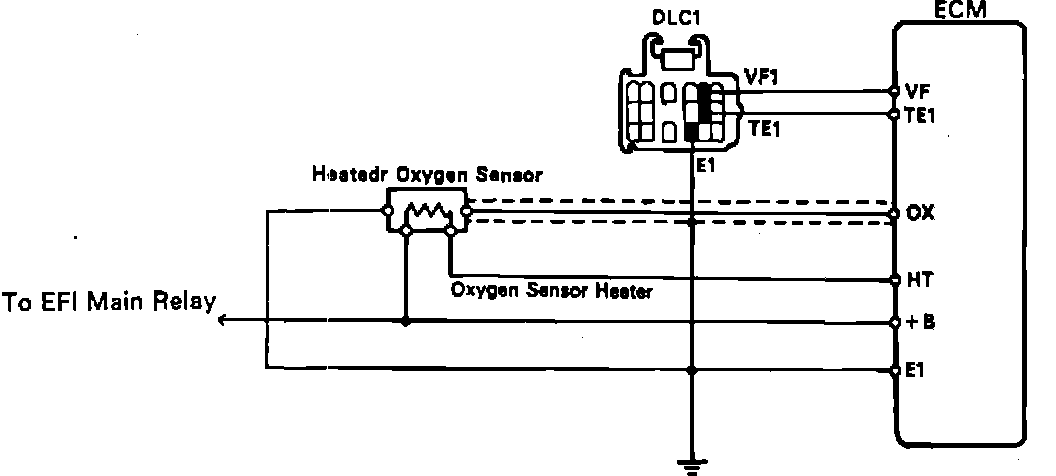

Oxygen Sensor Circuit Schematic:
Circuit Diagram

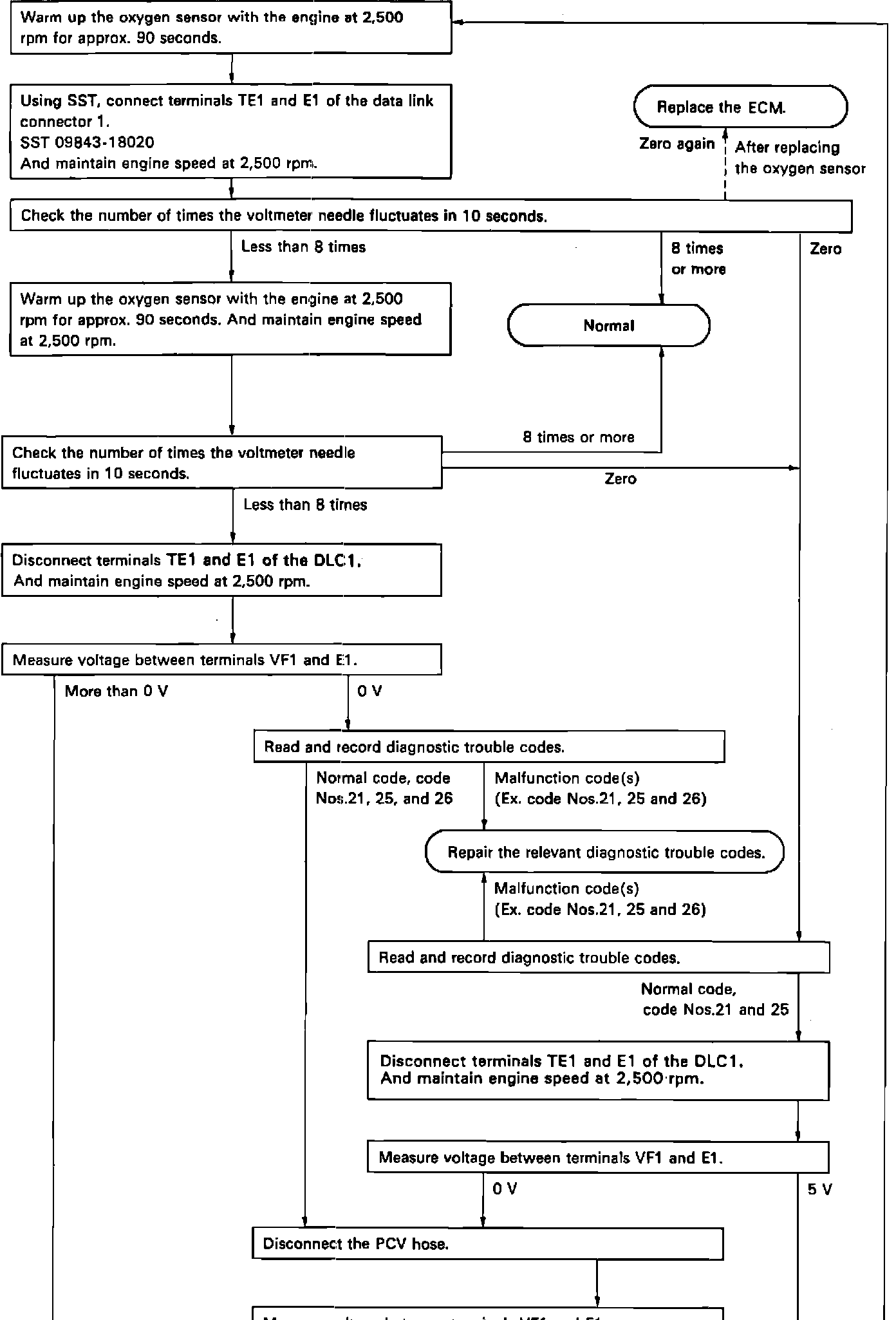

k�Oxygen Sensor Diagnosis:
Circuit Test
