MR2 L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

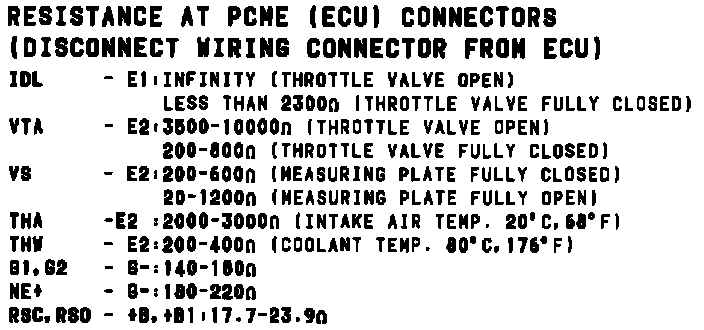

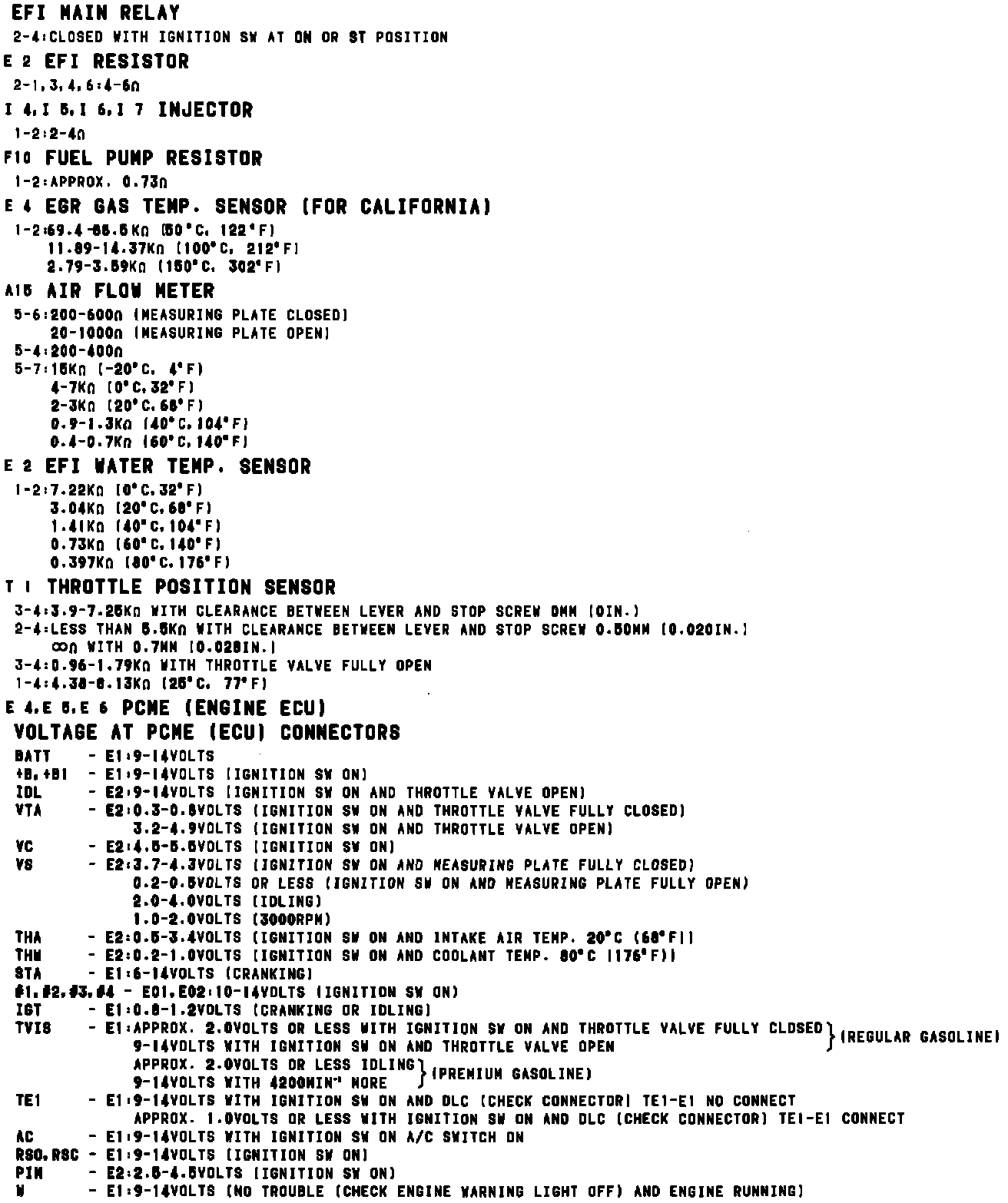

Service Hints:
Service Hints:
