Rear Wiper & Washer Switch
Rear Wiper & Washer Switch

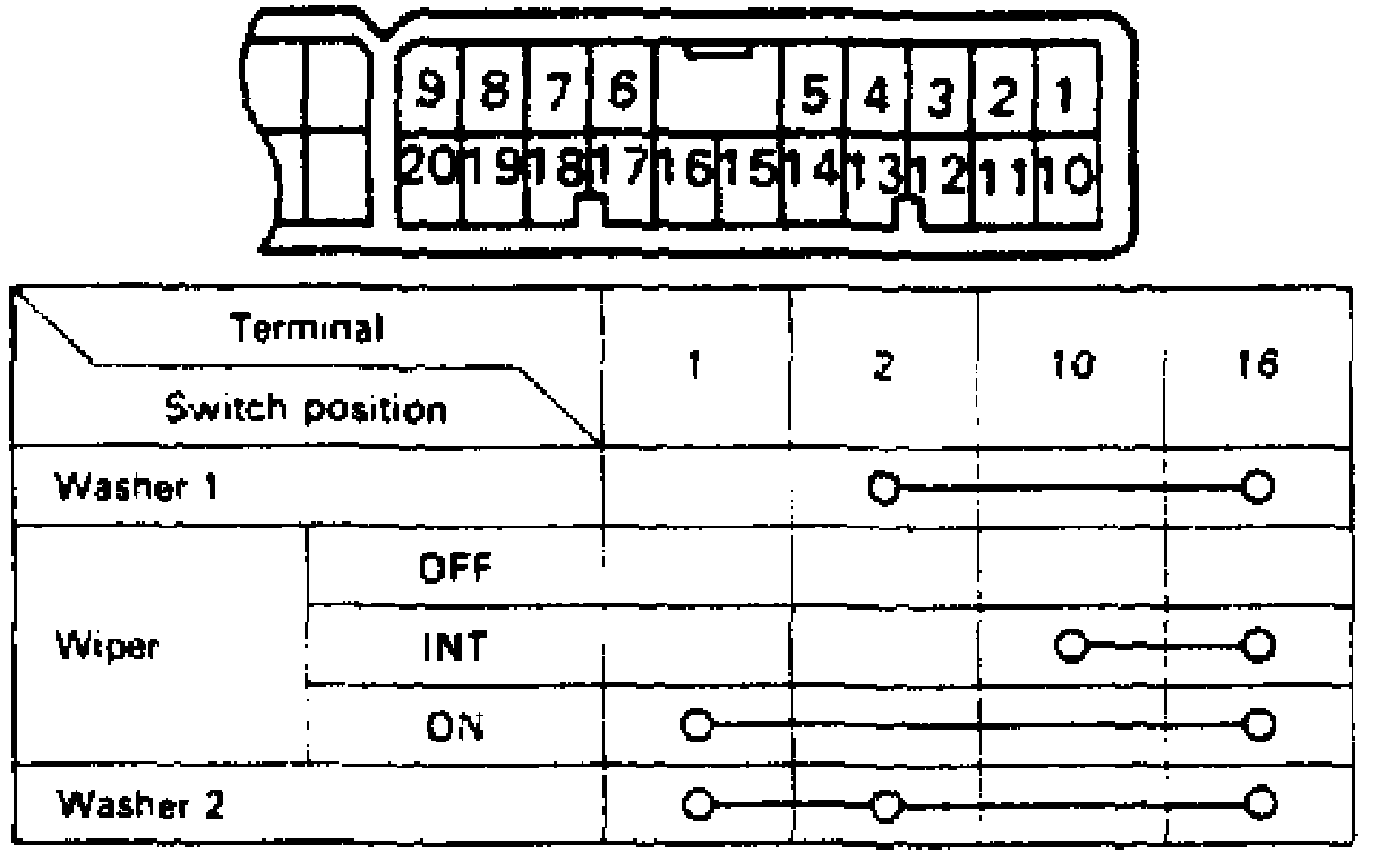

Fig 34 Rear Wiper & Washer Switch. 1993 Corolla:
1.
Inspect for continuity as shown in
Fig. 34.
2.
If continuity is not as indicated, replace switch.
