A245E Transaxle

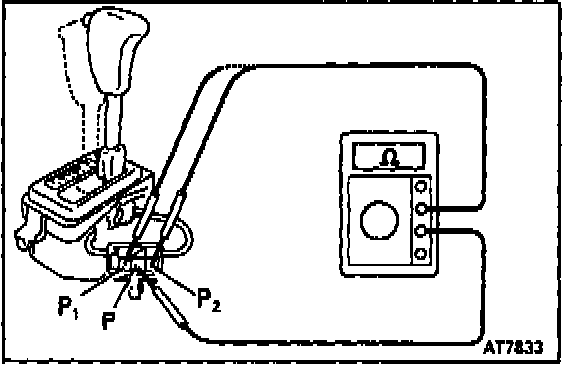

INSPECT SHIFT LOCK CONTROL SWITCH

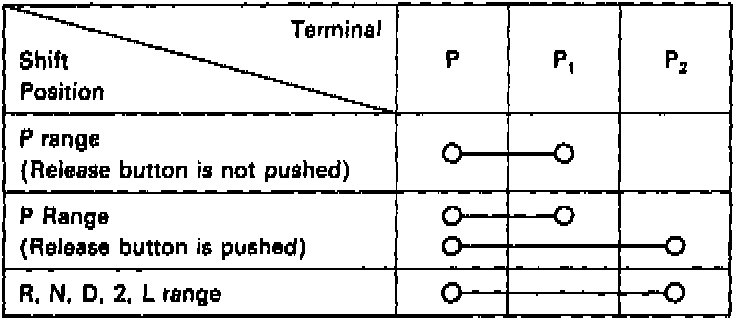

Inspect that there is continuity between each terminal.
