Home >> Toyota >> 1993 >> Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Switch >> Testing and Inspection >> A131L Transaxle

A131L Transaxle

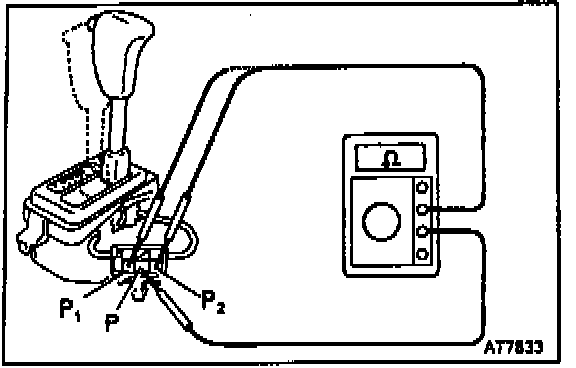

INSPECT SHIFT LOCK CONTROL SWITCH

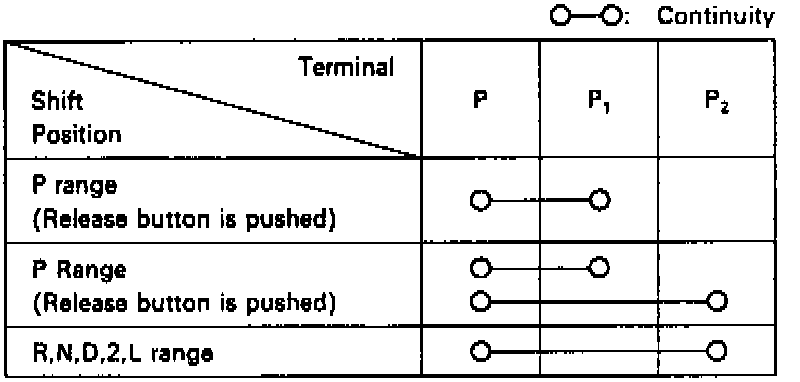

Check whether there is continuity between each terminals.
