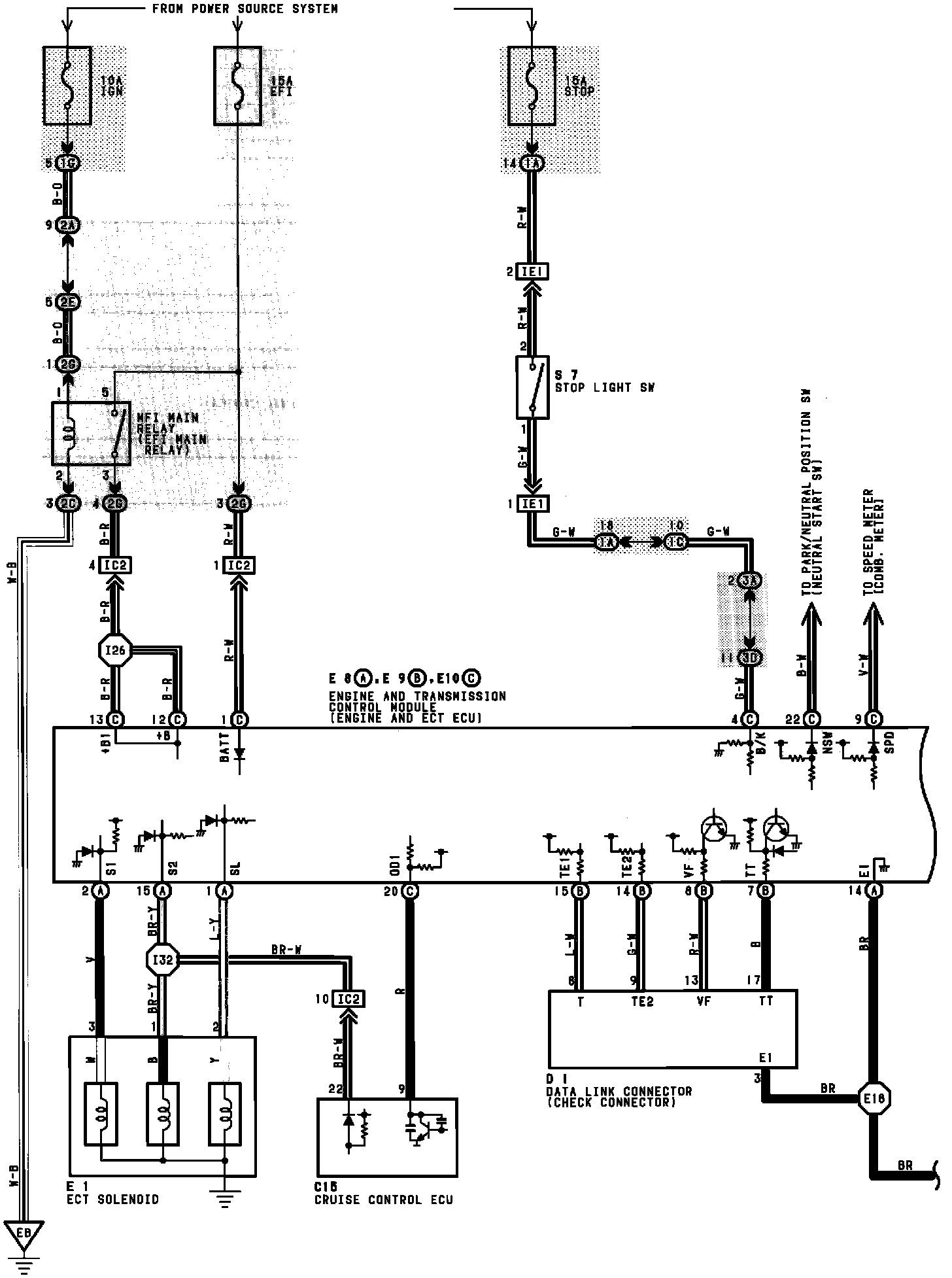

Transmission Controls (Electronically Controlled):

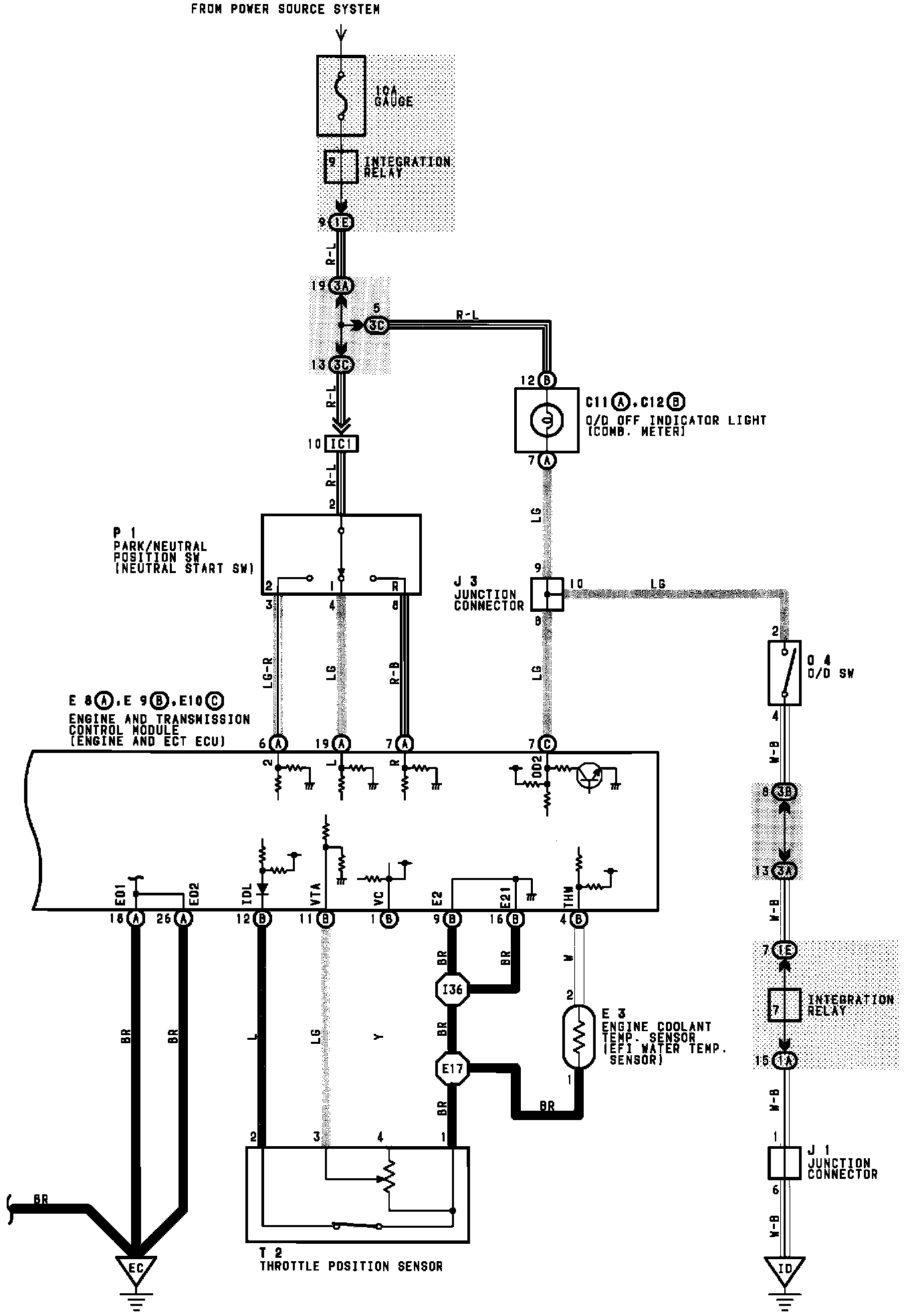

Transmission Controls (Electronically Controlled):
