DESCRIPTION OF FAIL SAFE OPERATION

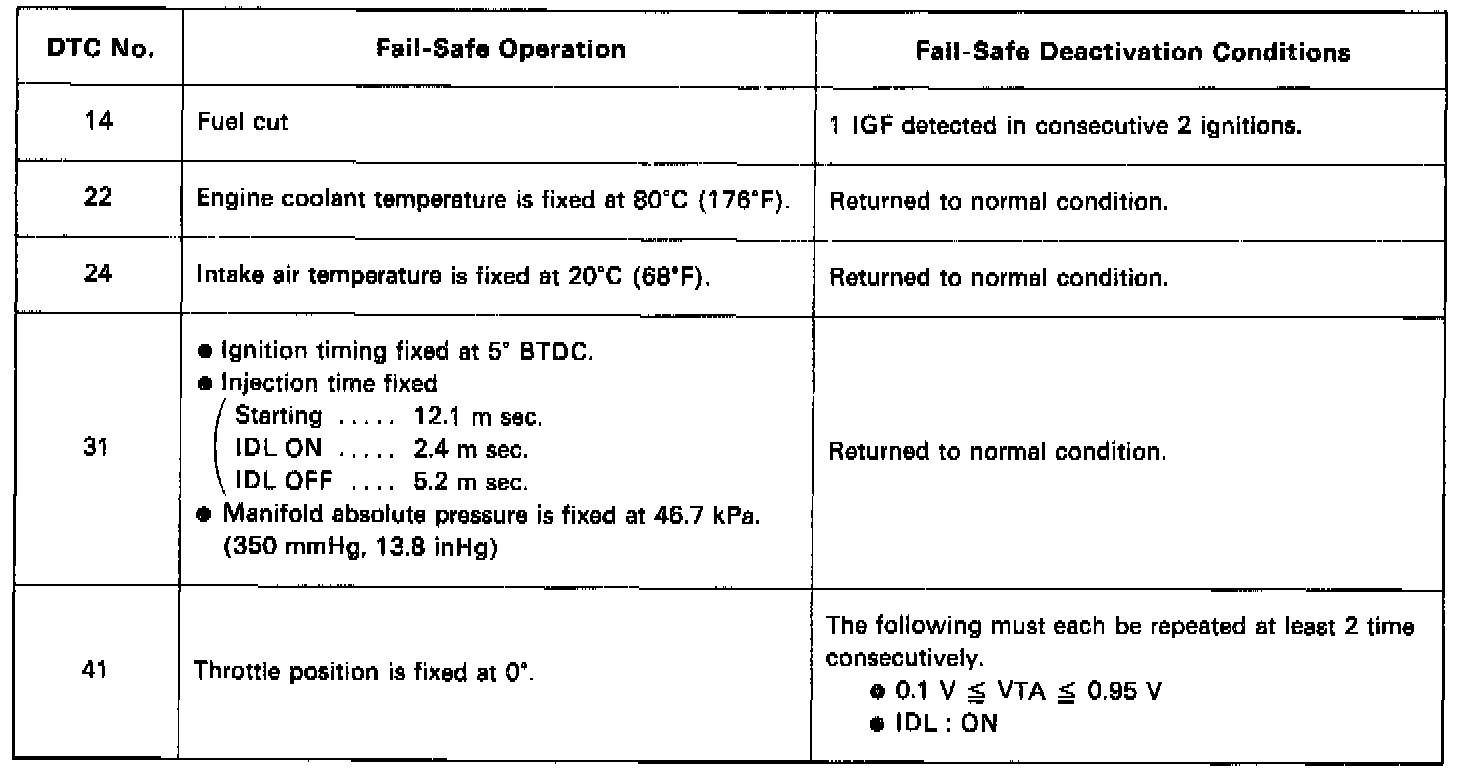

If any of the following codes is recorded, the ECM enters fail-safe mode.
