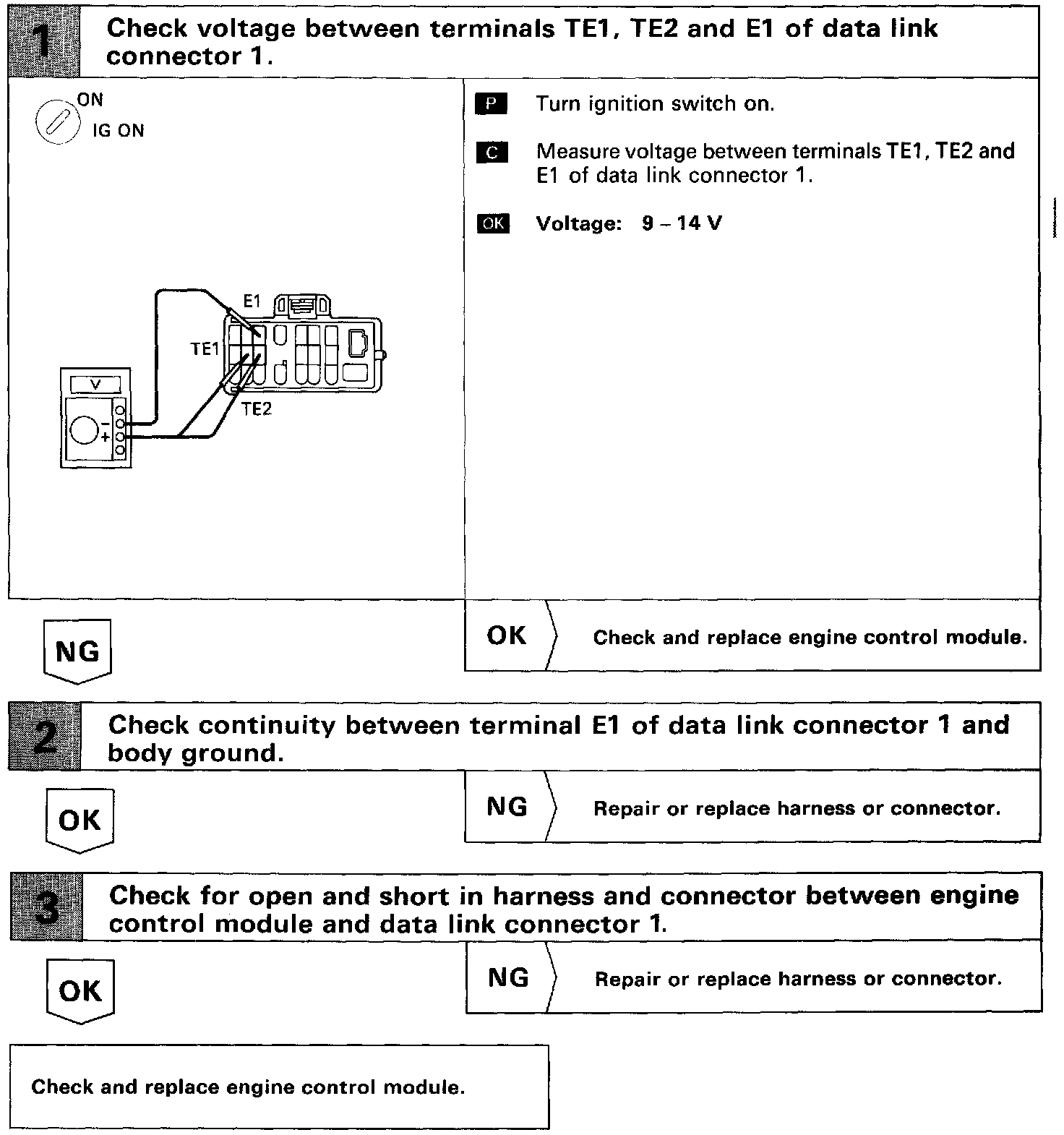

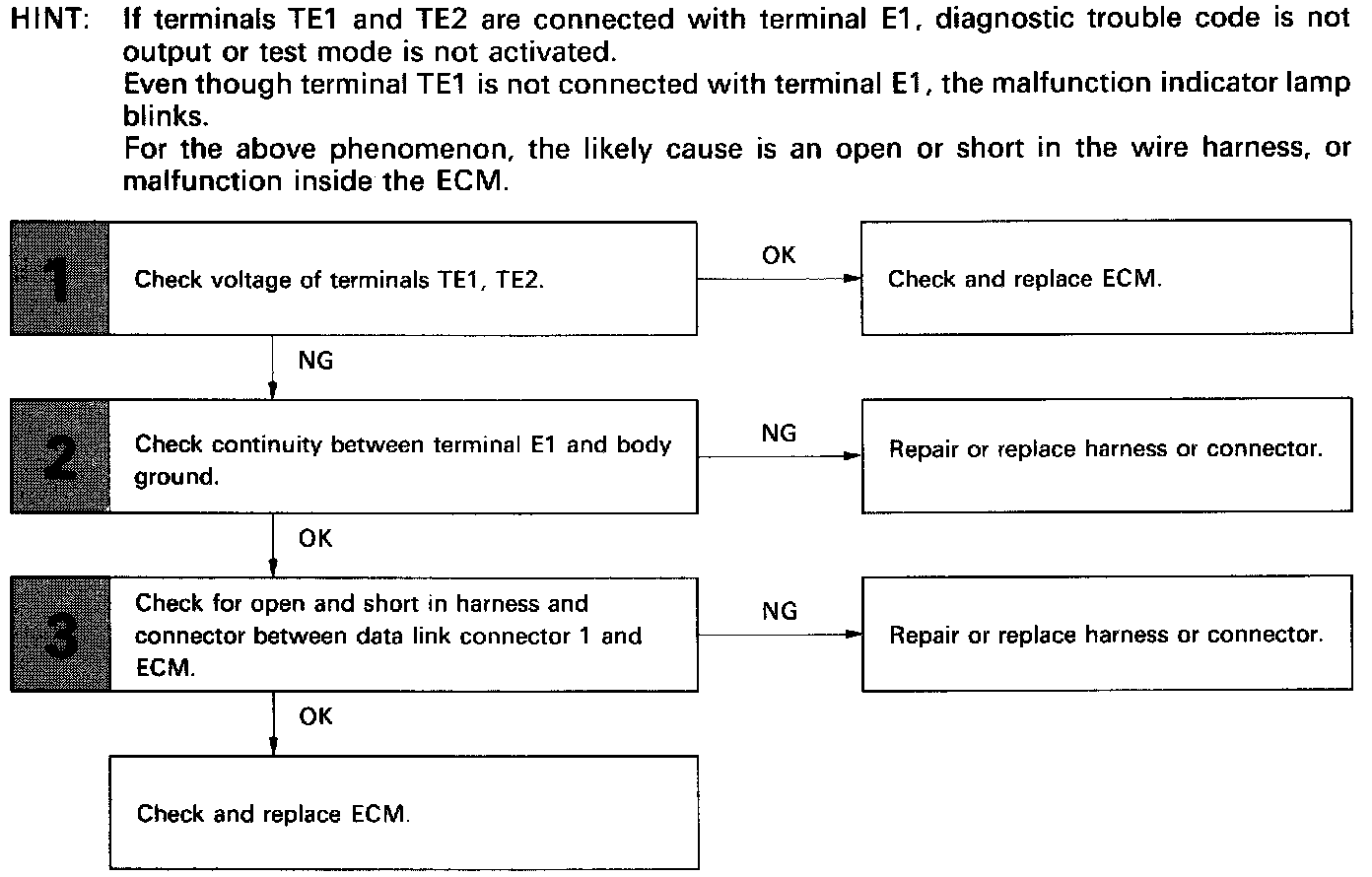

Data Link Connector: Testing and Inspection

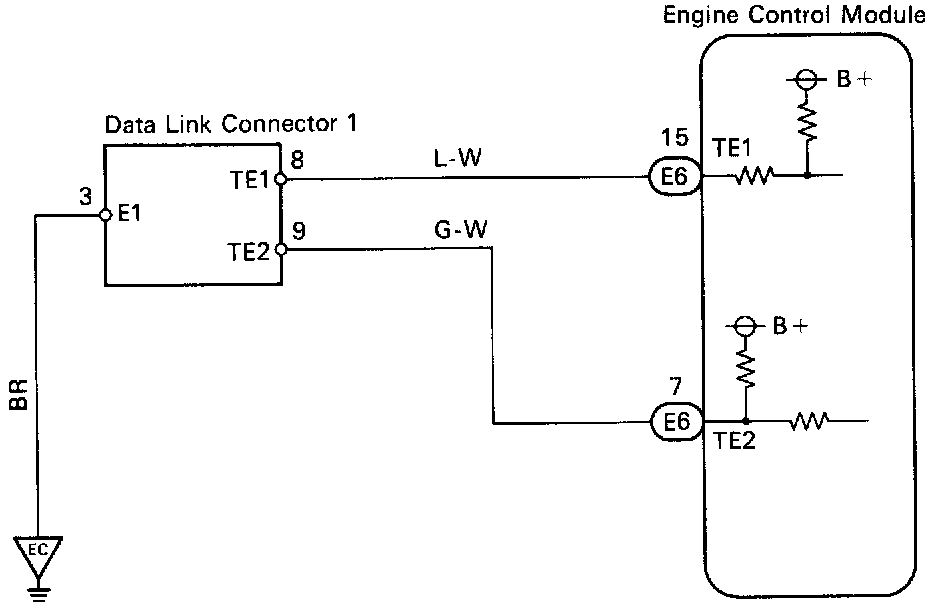

- Terminals TE1 and TE2 are located in data link connector 1 located in the engine compartment. When these terminals are connected with the E1 terminal, diagnostic codes in normal mode or test mode can be read from the malfunction indicator lamp on the combination meter.
