Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Locations
Relay Locations

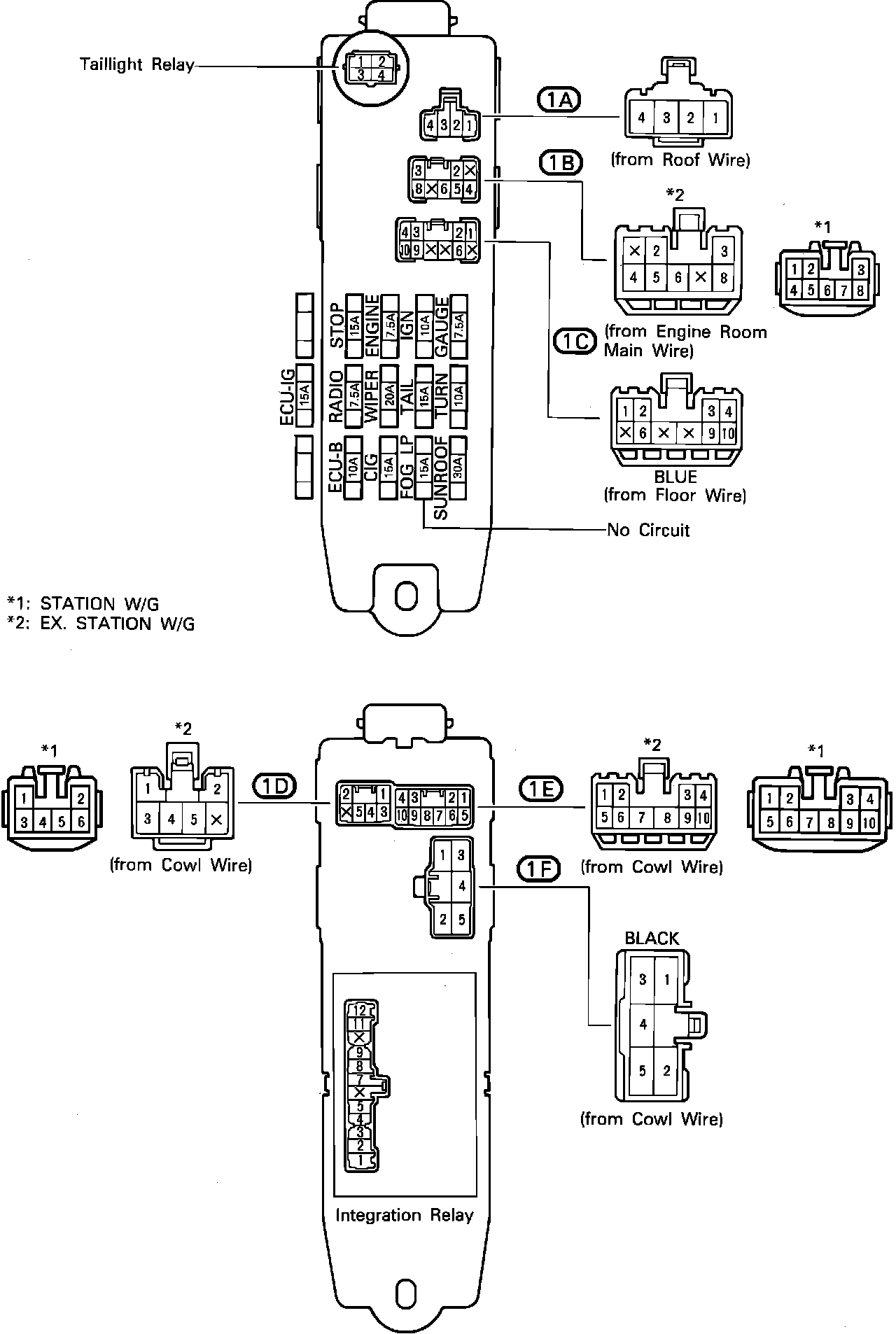

Fuse Panel: Junction Block No. 1 (Left Kick Panel):
