Home >> Toyota >> 1993 >> Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> J/B No. 4

J/B No. 4

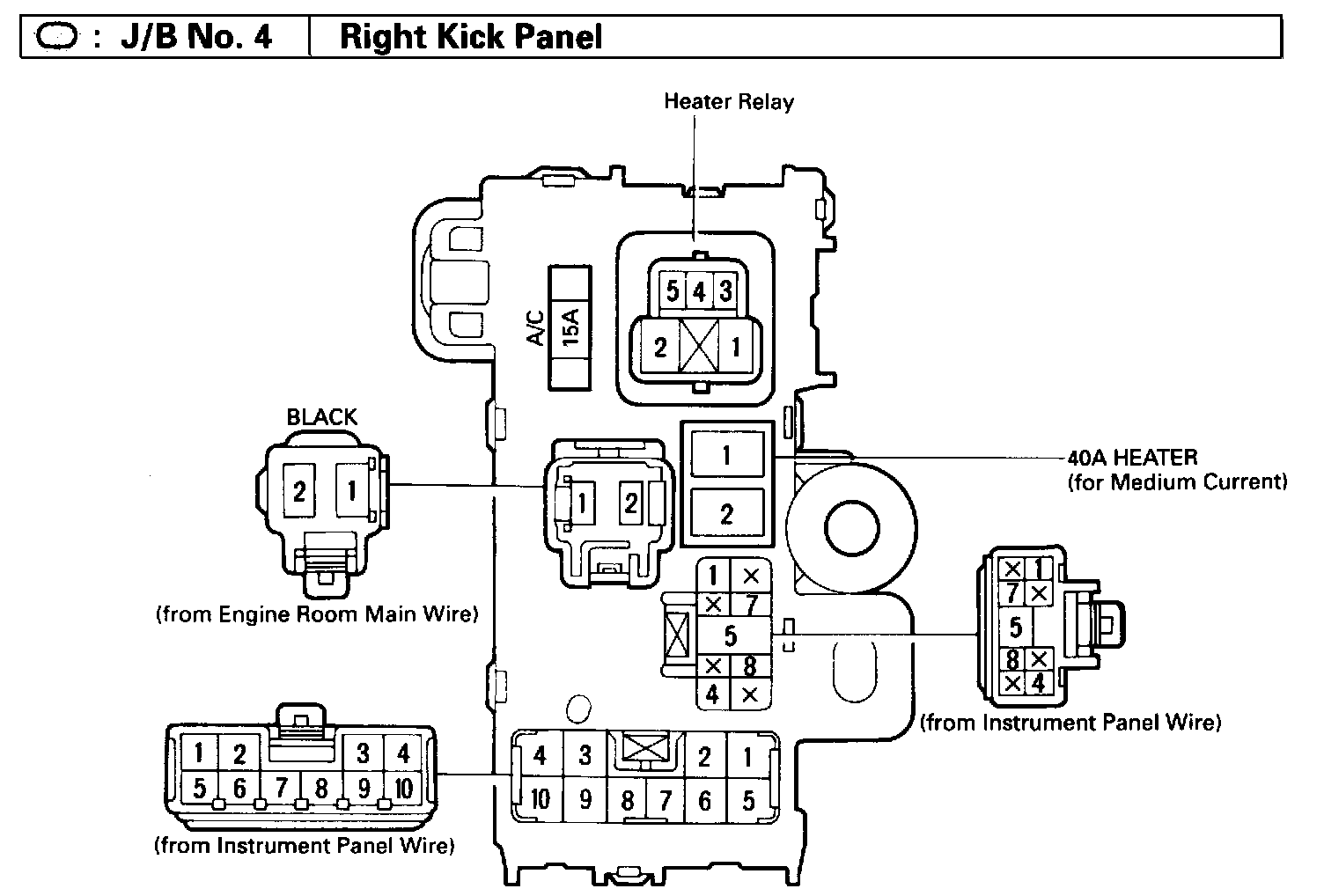

J/B No. 4 Right Kick Panel:
