Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
J/B No. 3
J/B No. 3

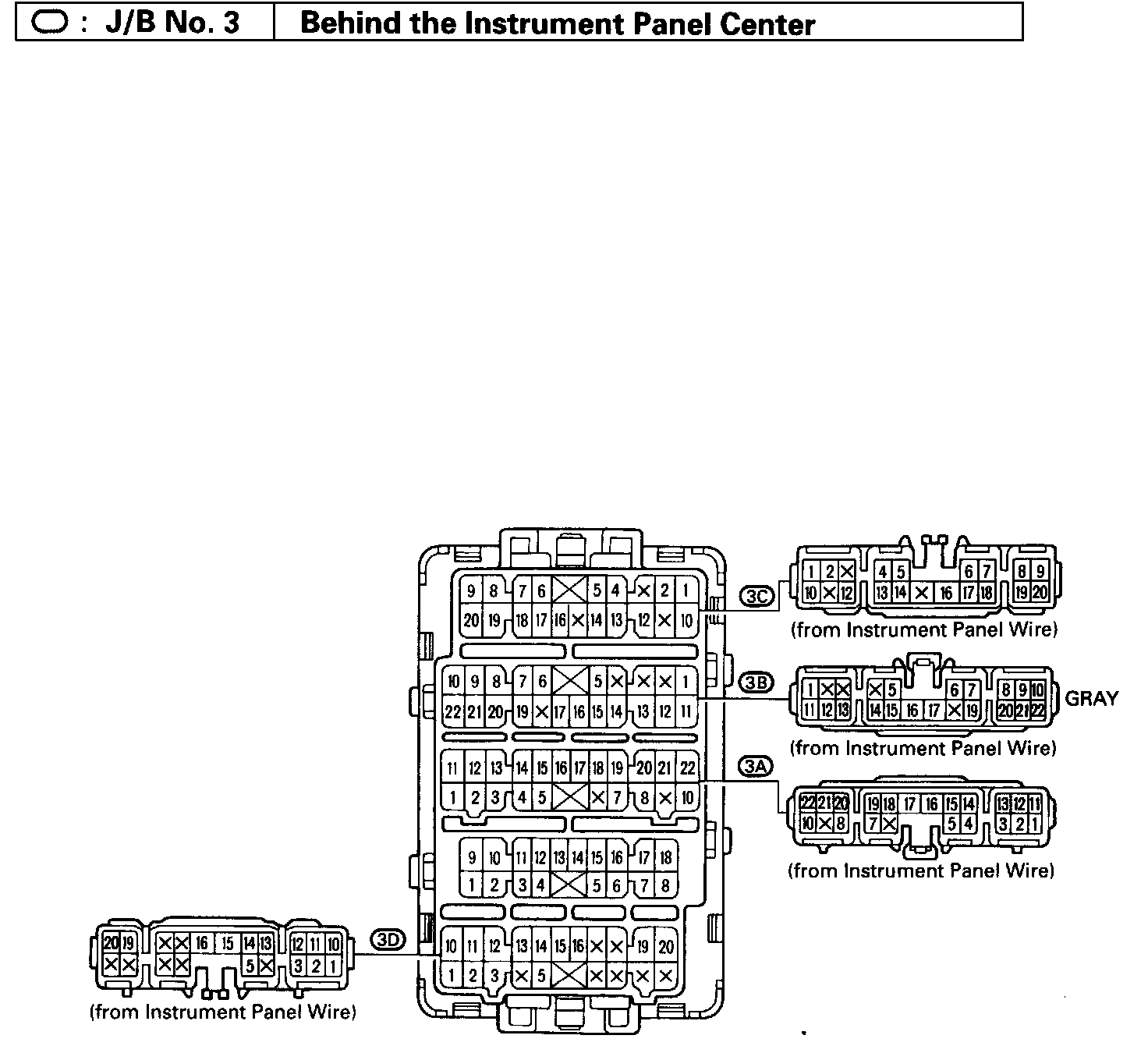

J/B No. 3 Behind The Instrument Panel Center:
