Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Instrument Panel and Center Console
Instrument Panel and Center Console

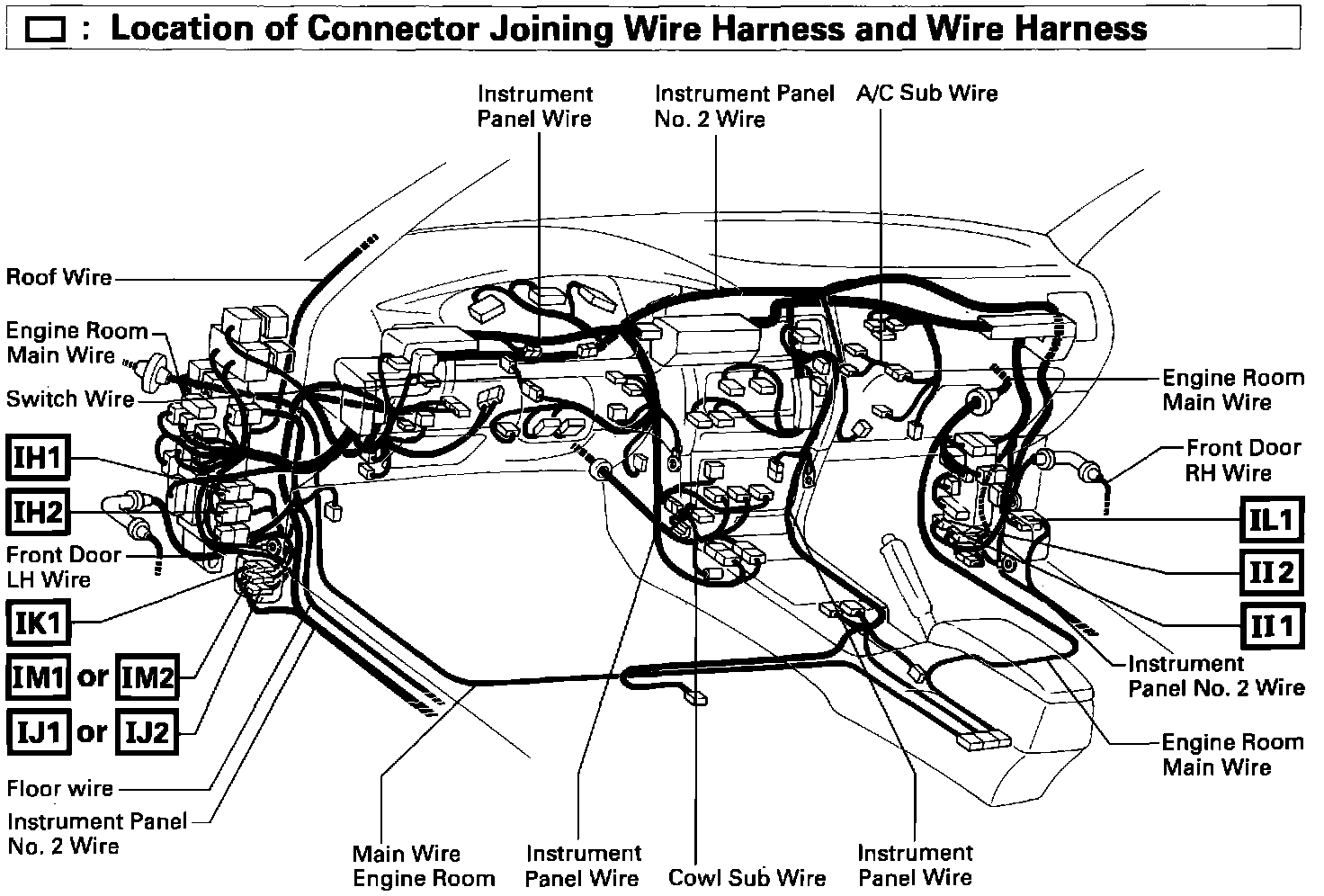

Connector Locations: Instrument Panel:

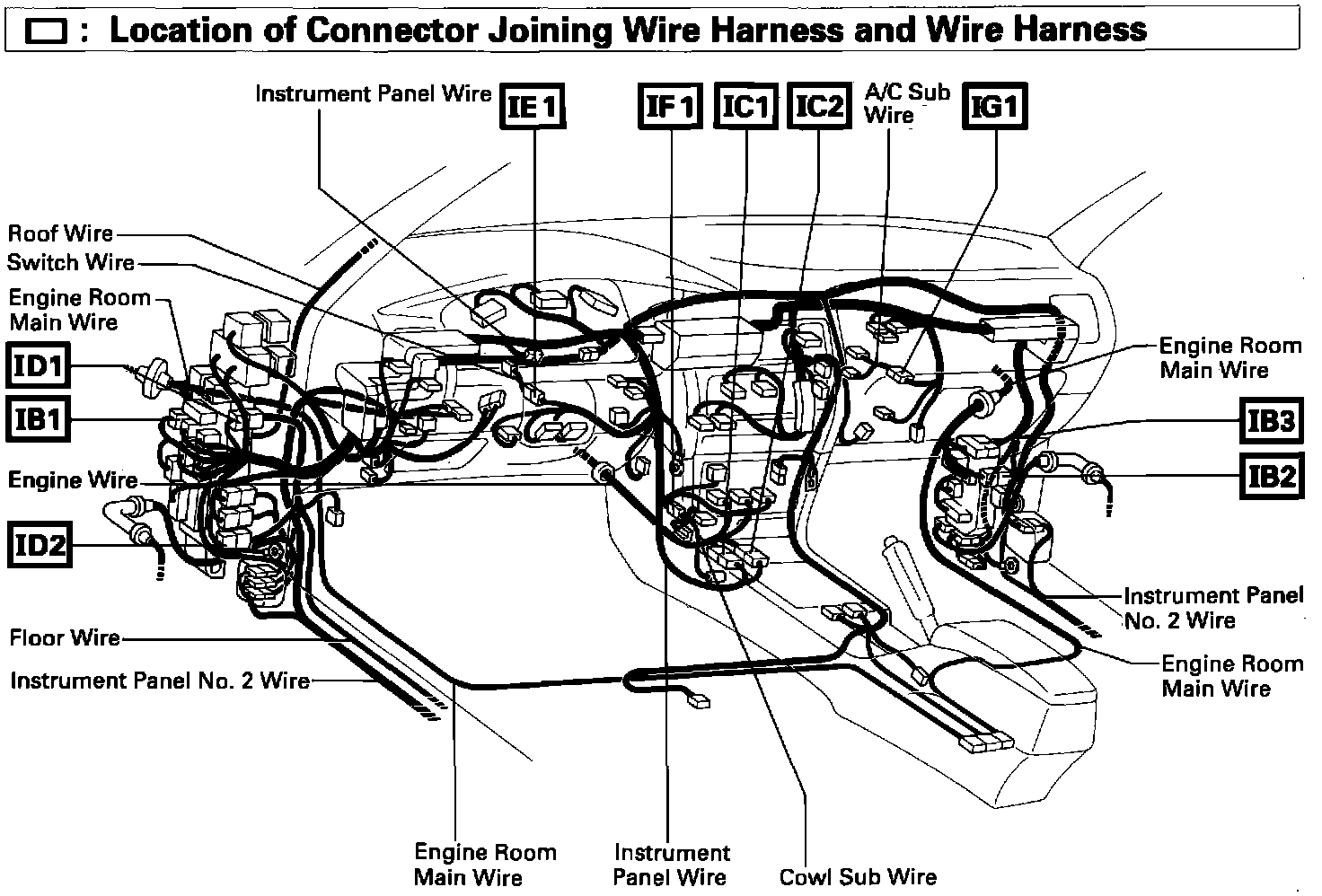

Connector Locations: Instrument Panel:
