Fan Relay Number 2

Testing Condenser Fan Number 2:

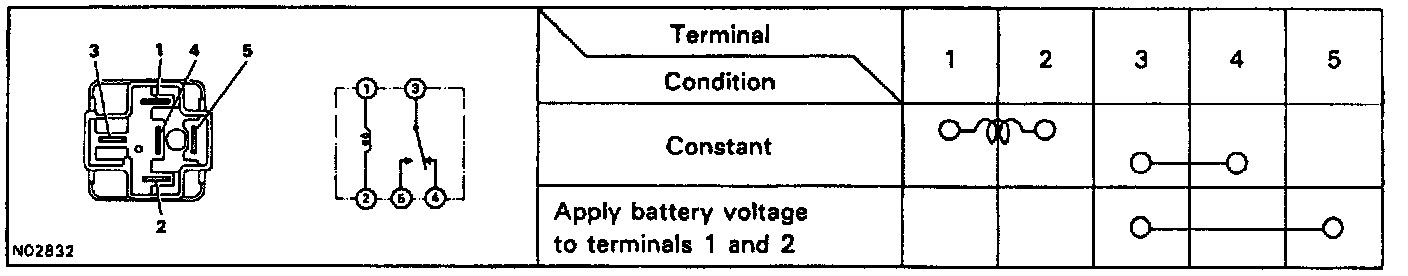

INSPECT RELAY OPERATION


With No Power Applied

Continuity should exist between terminals 1 and 2 and also 3 and 4. If not as specified, replace the relay.

With Power Applied

Apply power to terminals 1 and 2. Continuity should exist between terminals 3 and 5. If not as specified, replace the relay.
