Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instument Panel and Center Console
Instument Panel and Center Console

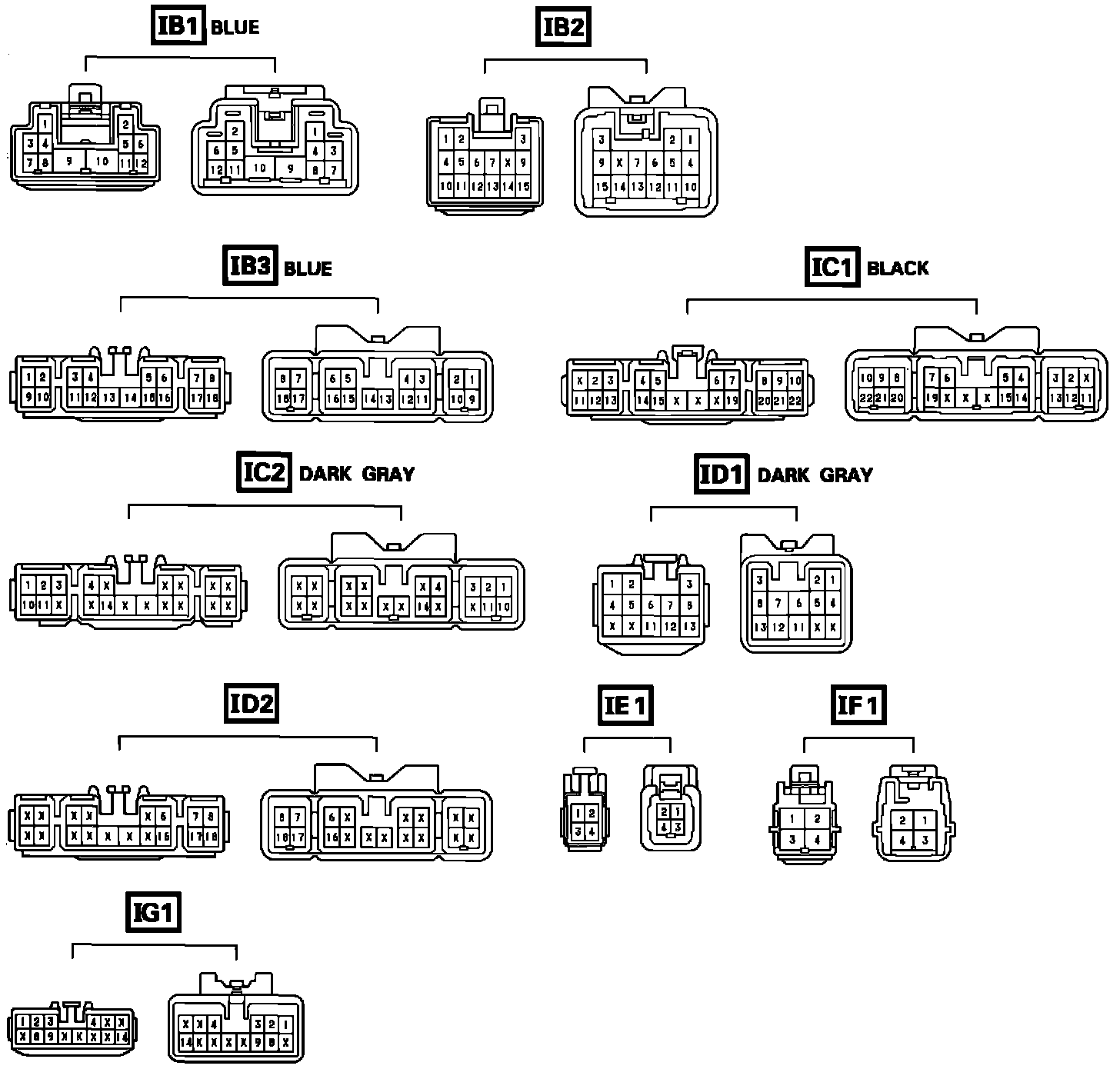

Connector Identification:

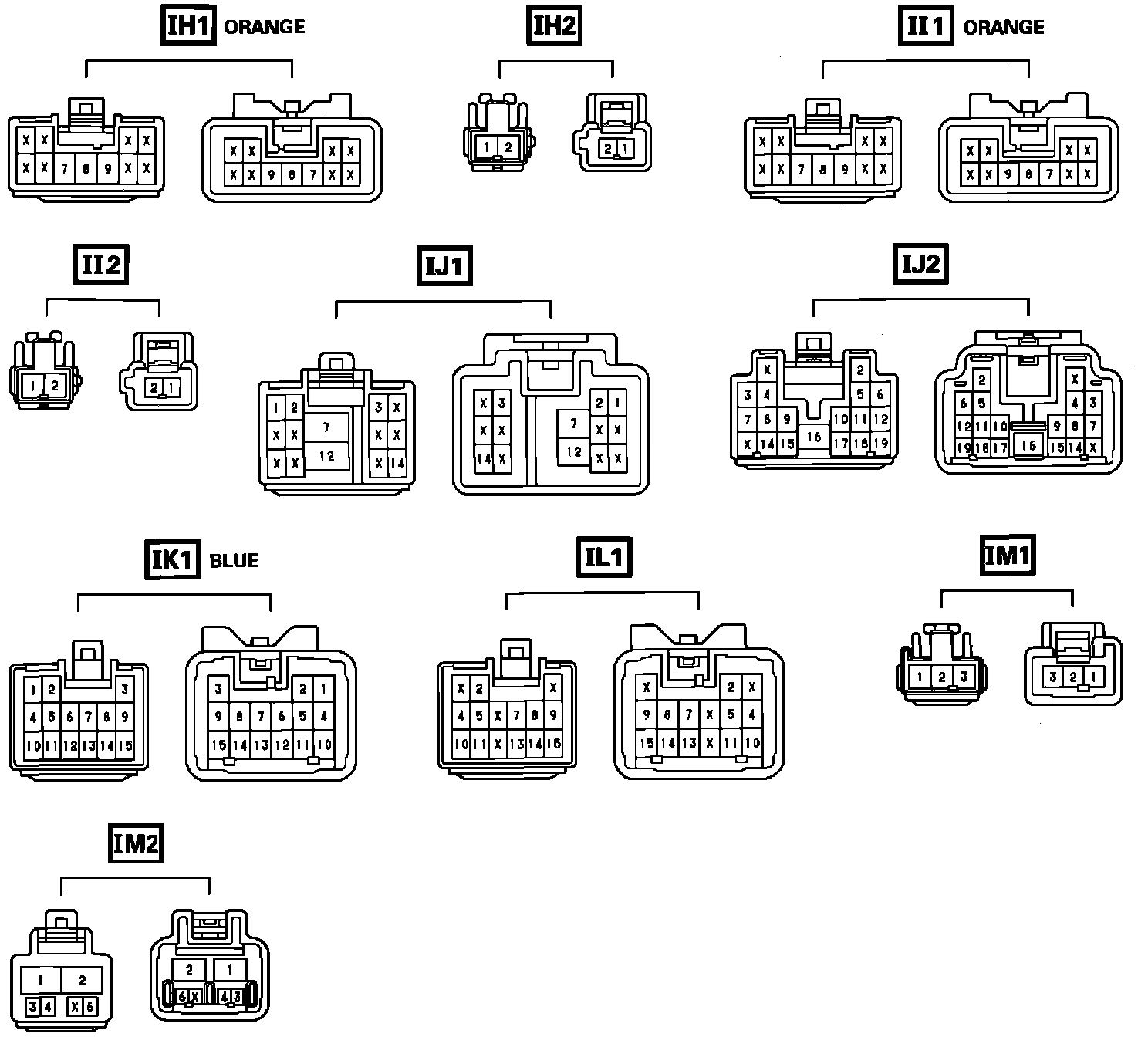

Connector Identification:
