Ts Terminal Circuit

Ts Terminal Circuit

CIRCUIT DESCRIPTION
The sensor check circuit detects abnormalities in the speed sensor signal which can not be detected with the diagnostic trouble code check. Connecting terminals Ts and E1 of the data link connector 1 in the engine compartment starts the check.

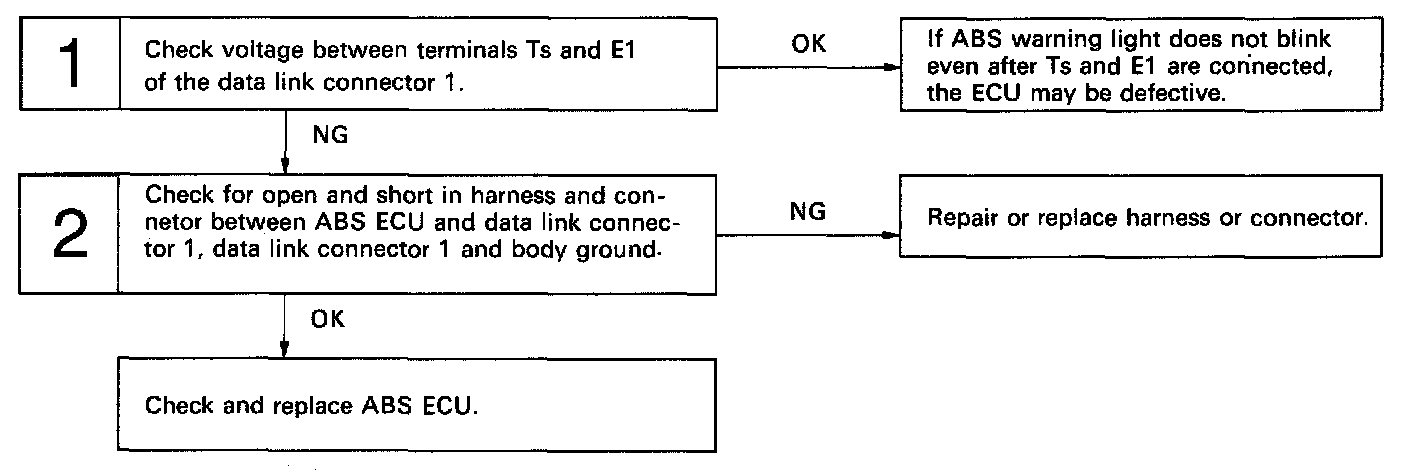

DIAGNOSTIC CHART

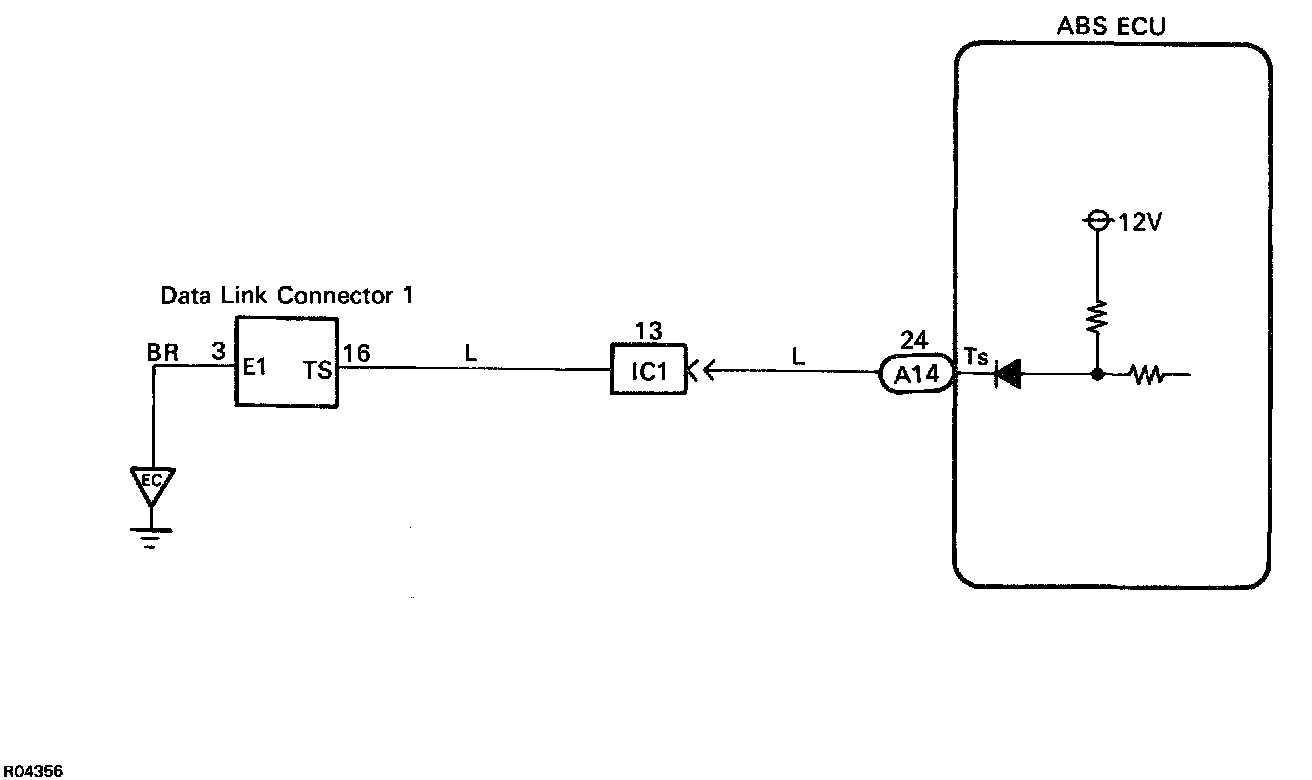

Wiring Diagram:








INSPECTION PROCEDURE

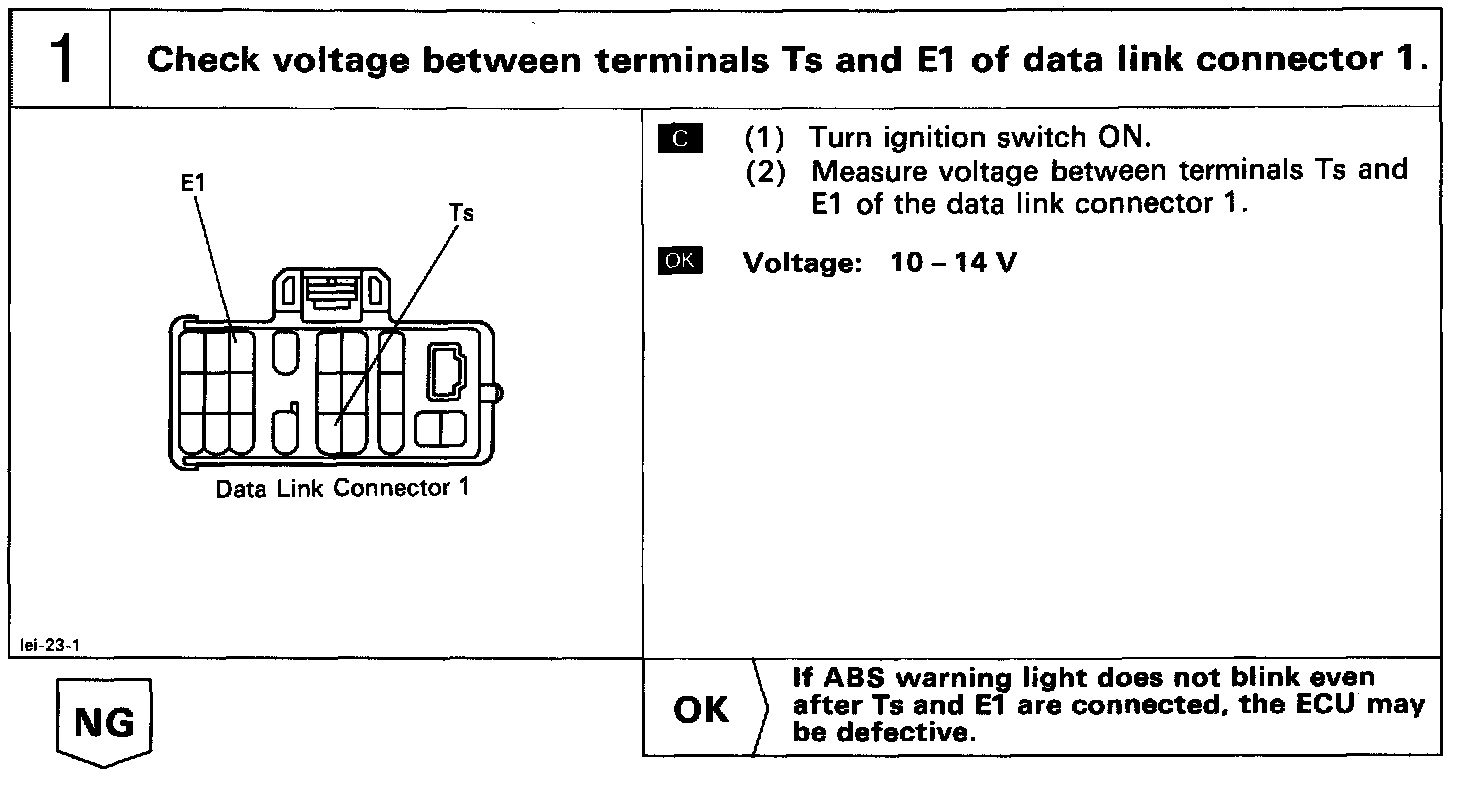

Step 1:

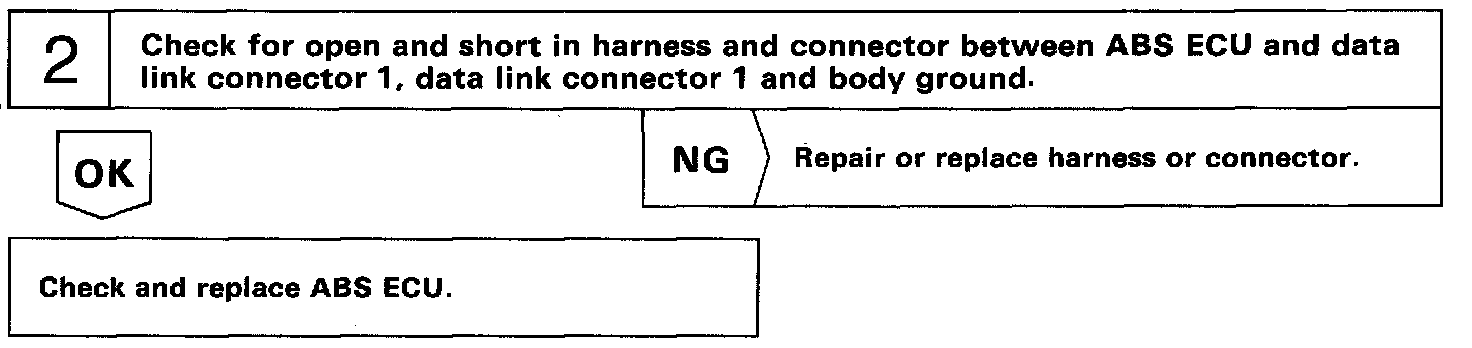

Step 2:
