Tc Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting between terminals Tc and E1 of the data link connector 1 causes the ECU to display the diagnostic trouble code by flashing the ABS warning light.

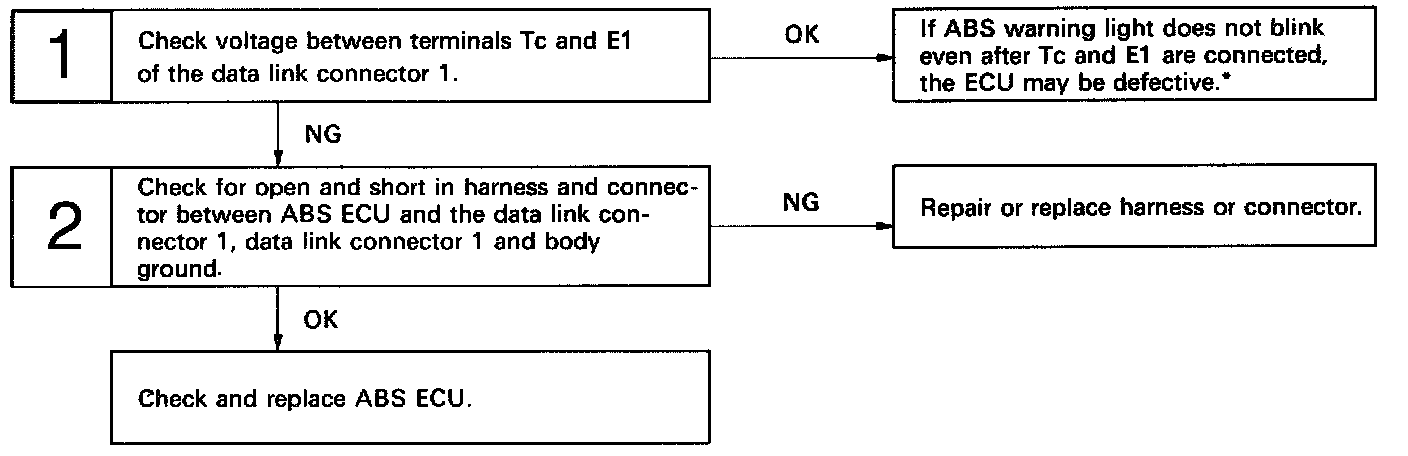

DIAGNOSTIC CHART

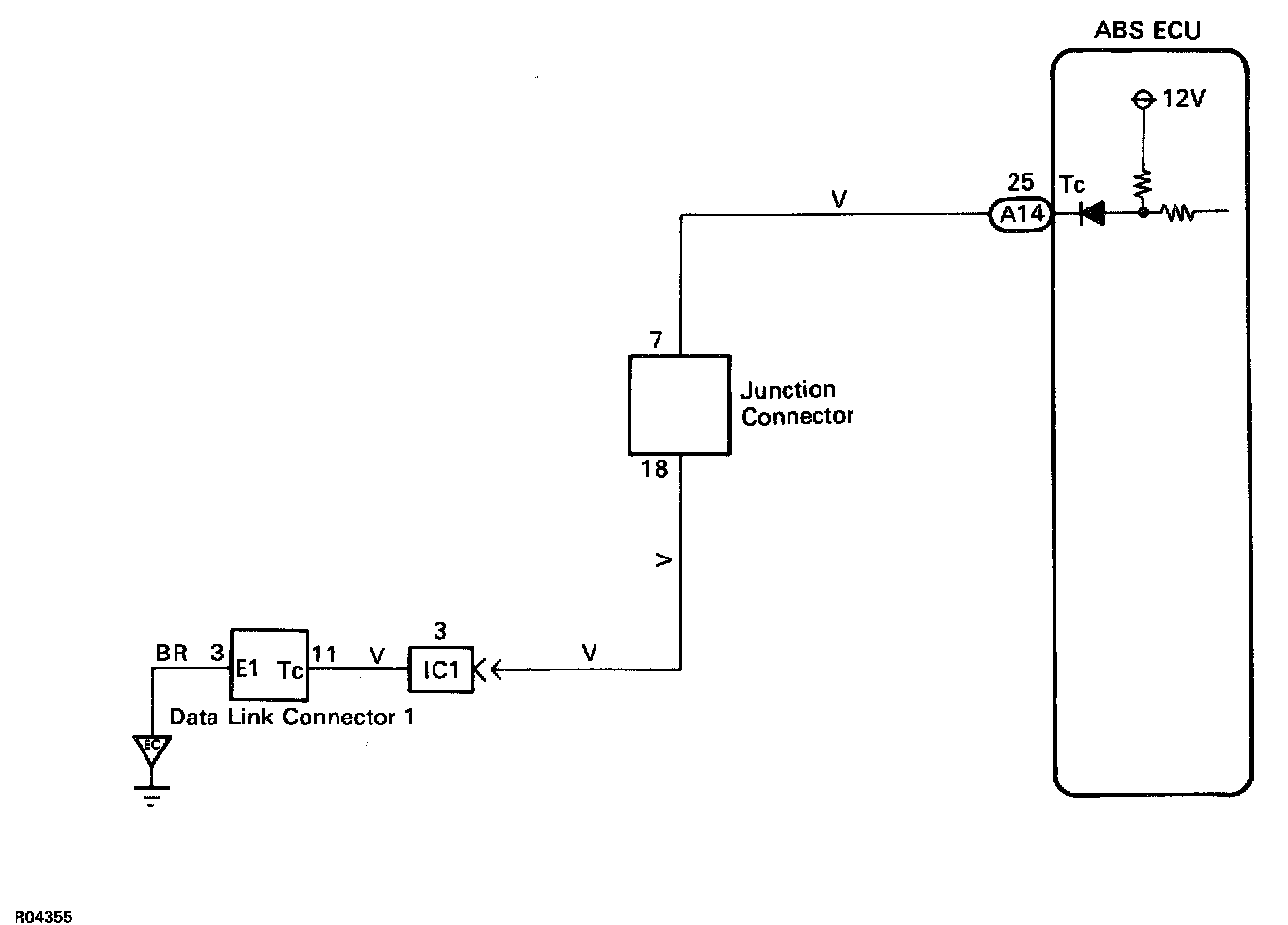

Wiring Diagram:








INSPECTION PROCEDURE

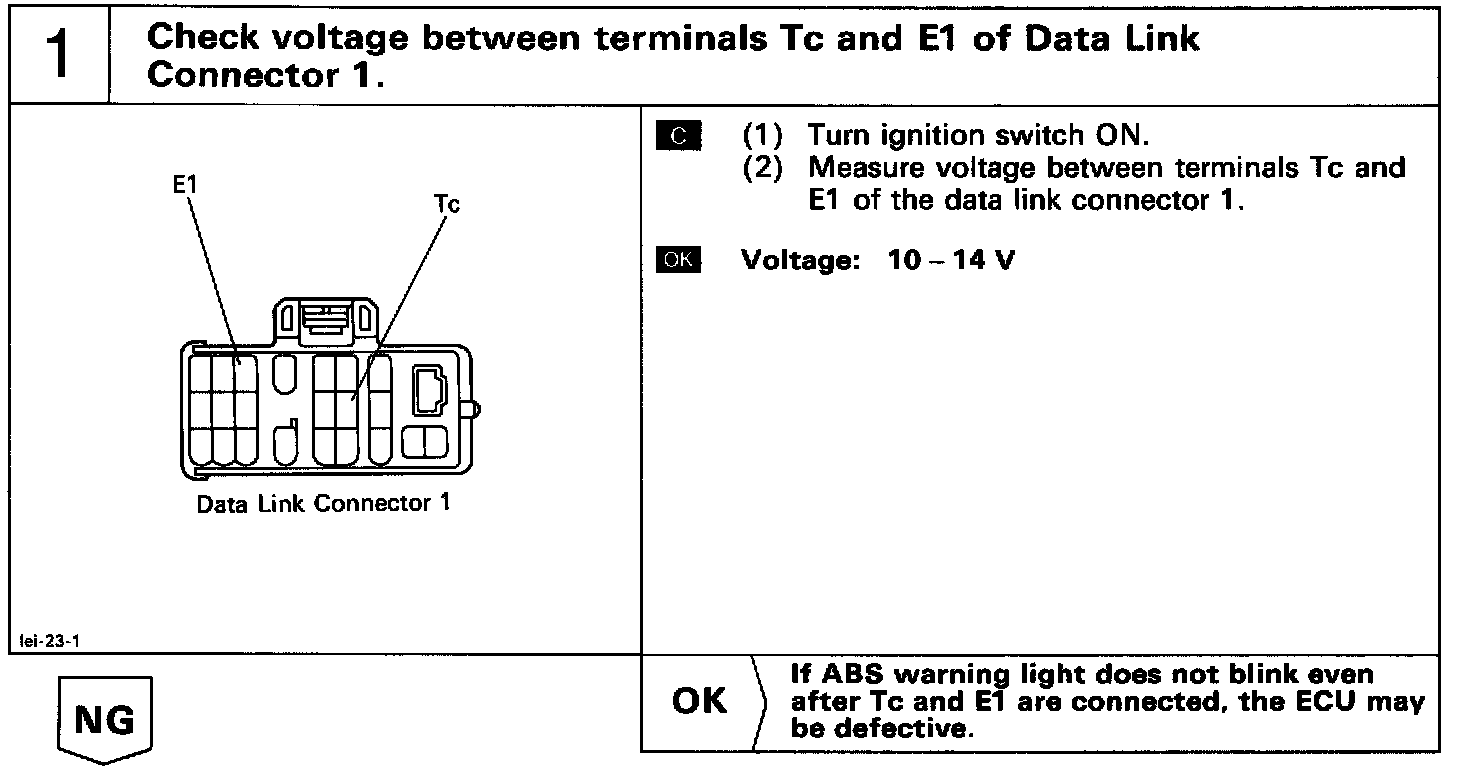

Step 1:

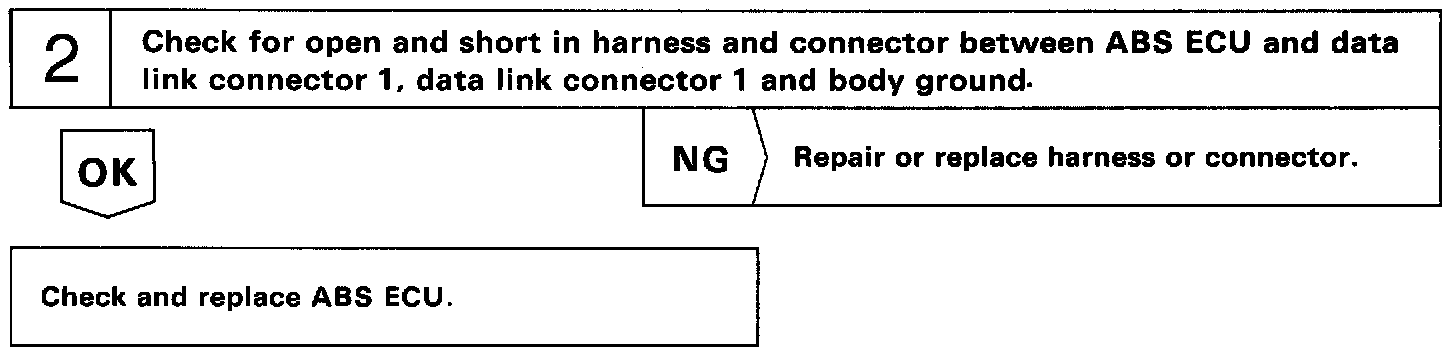

Step 2:
